Toyota COROLLA NAP — METER

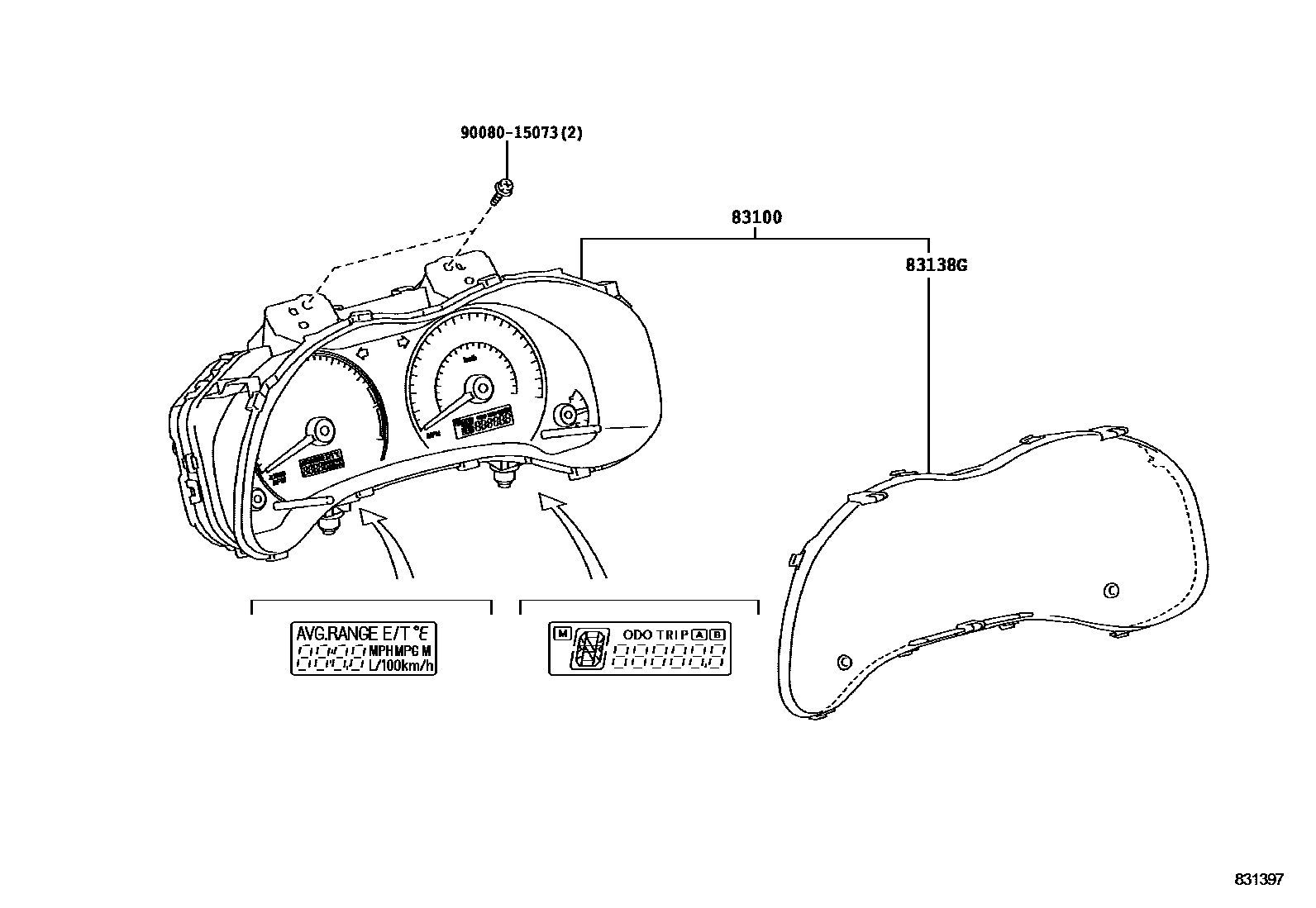

83100METER ASSY, COMBINATION

main83800-02V60i200801-200902

main83800-02V80i200902-200908

main83800-02V81i200908-201012

main83800-02V90i200902-200908

main83800-02V91i200908-201012

main83800-02W10supersedes 83800-02Z11i200801-200908

AIR CONDITIONER-MANUAL

main83800-02W11supersedes 83800-02V61i200908-201012

AIR CONDITIONER-MANUAL; MEXICO SPEC

main83800-02W20supersedes 83800-02V71i200801-200908

MEXICO SPEC

main83800-02W21i200908-201012

MEXICO SPEC

main83800-02W30supersedes 83800-02V80i200801-200908

MEXICO SPEC

main83800-02W31i200908-201012

MEXICO SPEC

main83800-02W40supersedes 83800-02V90i200801-200908

MEXICO SPEC

main83800-02W41i200908-201012

MEXICO SPEC

main83800-0ZK00supersedes 83800-0ZJ90i201012-201112

AIR CONDITIONER-MANUAL; MEXICO SPEC

main83800-0ZK10i201012-201112

main83800-0ZK20i201012-201112

main83800-0ZK30i201012-201112

MEXICO SPEC

main83800-0ZK40i201012-201112

MEXICO SPEC

main83800-F2120i201112

main83800-F2130i201112

main83800-F2140i201112

main83800-F2150i201112

main83800-F2160i201112

main83800-F2170i201112

main83800-F2180i201112

main83800-F2110supersedes 83800-F2100i201112

MEXICO SPEC

83138GGLASS, COMBINATION METER

main83852-02V50supersedes 83852-02V80i200801-200902

main83852-02V80i200902-201012

9008015073

main90080-15073

3 parts on this diagram · 3 diagrams in section

METER for Toyota COROLLA NAP

This section contains 3 genuine Toyota parts for the METER system of the Toyota COROLLA NAP. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER.
