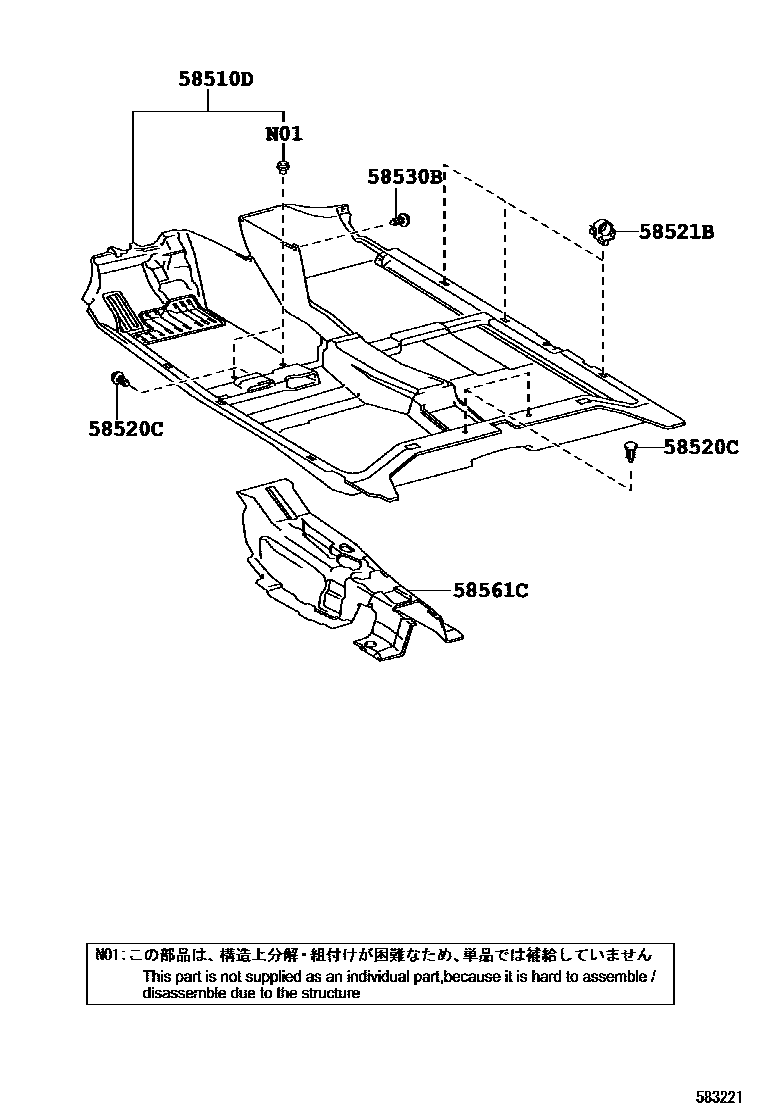

Toyota COROLLA NAP — MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-02B80-B2supersedes 58510-02B91-B2i200801-201004

COLD AREA SPEC,DARK GRAY,TRIM1#; DARK GRAY,TRIM1#

main58510-02B80-E0supersedes 58510-02B91-E0i200801-201004

COLD AREA SPEC,GREGE,TRIM4#; GREGE,TRIM4#

main58510-02B81-B2i201004-201012

COLD AREA SPEC,DARK GRAY,TRIM1#; DARK GRAY,TRIM1#

main58510-02B81-E0i201012-201308

GREGE,TRIM40

main58510-02B91-B2supersedes 58510-02B81-B2i201112-201308

DARK GRAY,TRIM1#

main58510-02D60-B0supersedes 58510-02F01-B0i200801-200905

COLD AREA SPEC,DARK GRAY,TRIM1#; DARK GRAY,TRIM1#

main58510-02D60-E0supersedes 58510-02F01-E0i200801-200905

COLD AREA SPEC,GREGE,TRIM4#; GREGE,TRIM4#

main58510-02E90-B0i200905-201004

COLD AREA SPEC,DARK GRAY,TRIM1#; DARK GRAY,TRIM1#

main58510-02E90-E0i200905-201004

COLD AREA SPEC,GREGE,TRIM4#; GREGE,TRIM4#

main58510-02E91-B0i201012-201308

DARK GRAY,TRIM1#; DARK GRAY,TRIM1#,40

main58510-02E91-E0i201004-201012

COLD AREA SPEC,GREGE,TRIM4#; GREGE,TRIM4#

main58510-02F01-B0supersedes 58510-02E91-B0i201112-201308

DARK GRAY,TRIM1#

main58510-02B91-E0i201107-201308

HAWAII SPEC&WITHOUT(COLD AREA SPEC),GREGE,TRIM40; PUERTO RICO SPEC&WITHOUT(COLD AREA SPEC),GREGE,TRIM40

main58510-02D61-B0i201004-201012

COLD AREA SPEC&FRONT SEAT SLIDE-240MM,D:POWER(8WAY),DARK GRAY,TRIM1#; FRONT SEAT SLIDE-240MM,D:POWER(8WAY),DARK GRAY,TRIM1#

main58510-02D61-E0i201004-201012

COLD AREA SPEC&FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GREGE,TRIM4#; FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GREGE,TRIM4#

main58510-02D70-B0i200905-201004

FRONT SEAT SLIDE-240MM,D:POWER(8WAY),DARK GRAY,TRIM1#

main58510-02D70-E0i200905-201004

FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GREGE,TRIM4#

main58510-02D71-B0i201004-201012

FRONT SEAT SLIDE-240MM,D:POWER(8WAY),DARK GRAY,TRIM1#

main58510-02D71-E0i201208-201308

HAWAII SPEC&WITHOUT(COLD AREA SPEC)&FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GREGE,TRIM40; MEXICO SPEC&WITHOUT(COLD AREA SPEC)&FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GREGE,TRIM40; PUERTO RICO SPEC&WITHOUT(COLD AREA SPEC)&FRONT SEAT SLIDE-240MM,D:POWER(8WAY),GREGE,TRIM40

main58510-02F01-E0i201107-201308

HAWAII SPEC&WITHOUT(COLD AREA SPEC),GREGE,TRIM40; HAWAII SPEC&WITHOUT(COLD AREA SPEC),GREGE,TRIM40,41; PUERTO RICO SPEC&WITHOUT(COLD AREA SPEC),GREGE,TRIM40; PUERTO RICO SPEC&WITHOUT(COLD AREA SPEC),GREGE,TRIM40,41

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7×3i200801-201012

DK.GRAY; DK.GRAY,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-02080×6i200801-201012

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2×2i200801-201012

DK.GRAY

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02150i200801-201012

main58561-02151i201108

5 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota COROLLA NAP

This section contains 5 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA NAP. Key components include: CARPET ASSY, FLOOR, FRONT, CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET, SILENCER, FRONT FLOOR, NO.1.
