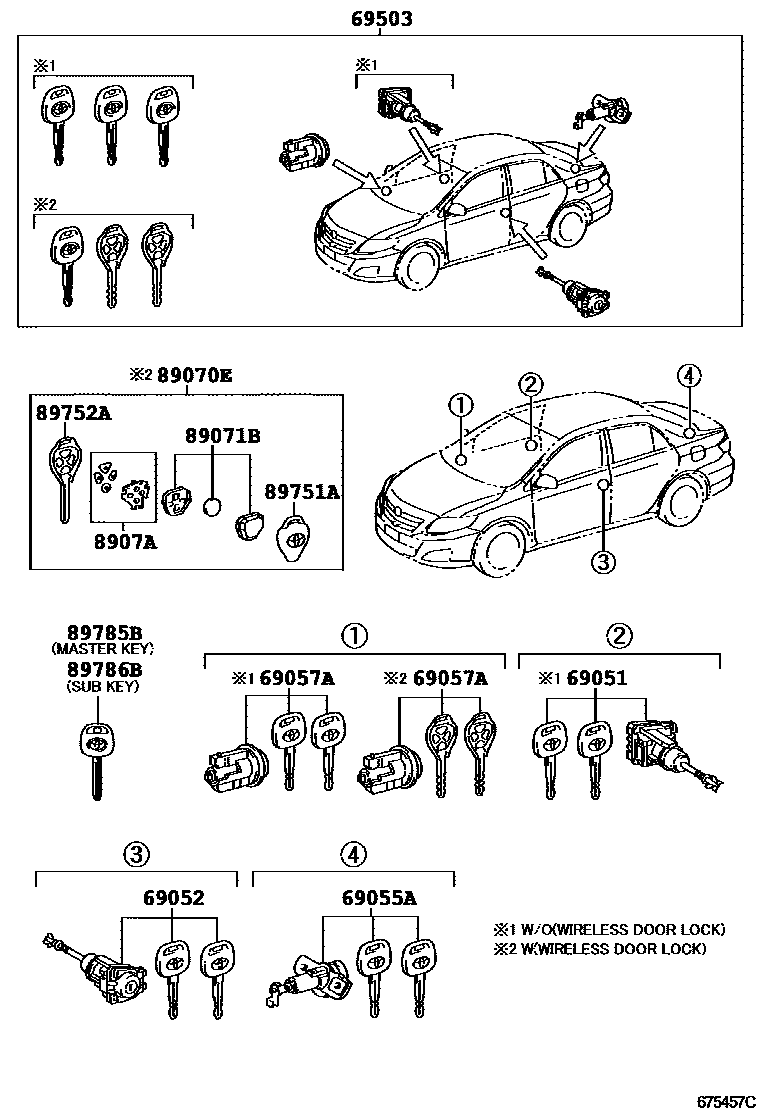

Toyota COROLLA NAP — LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
WIRELESS DOOR LOCK-WITH
STARTING SYSTEM-PUSH(WITH/SMART)
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
main69055-02200supersedes 69055-02160iAZE141,ZRE142..NAP..(CE,S,STD,XRS); ZRE142..NAP..LE200801-201012
WIRELESS DOOR LOCK-WITH
STARTING SYSTEM-PUSH(W/SMART)
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-02350supersedes 69057-08020iAZE141,ZRE142..NAP..(CE,S,STD,XRS); ZRE142..NAP..LE200801-201005
WIRELESS DOOR LOCK-WITH
WIRELESS DOOR LOCK-WITH
69503CYLINDER SET, LOCK
main69005-02400supersedes 69005-02680iAZE141,ZRE142..NAP..(S,XRS); ZRE142..NAP..(CE,STD); ZRE142..NAP..LE200801-201005
WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY)
WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY)
STARTING SYSTEM-PUSH(W/SMART)
89070ETRANSMITTER ASSY, DOOR CONTROL
STARTING SYSTEM-PUSH(WITH/SMART); WIRELESS DOOR LOCK-WITH
REFER84-24:PNC 89780; STARTING SYSTEM-PUSH(W/SMART),REFER84-24:PNC 89780; WIRELESS DOOR LOCK-WITH,REFER84-24:PNC 89780
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-02070×2iAZE141,ZRE142..NAP..(LE,S,XRS); ZRE142..NAP..(LE,S)..CND; ZRE142..NAP..CE201012-201203
STARTING SYSTEM-PUSH(WITH/SMART); WIRELESS DOOR LOCK-WITH
main89071-02071×2iAZE141,ZRE142..NAP..(LE,S,XRS); ZRE142..NAP..(CE,STD); ZRE142..NAP..(LE,S)..CND201204
STARTING SYSTEM-PUSH(WITH/SMART); WIRELESS DOOR LOCK-WITH
8907ASWITCH SET, TRANSMITTER
STARTING SYSTEM-PUSH(WITH/SMART); WIRELESS DOOR LOCK-WITH
89751ACOVER, TRANSMITTER HOUSING
STARTING SYSTEM-PUSH(WITH/SMART); WIRELESS DOOR LOCK-WITH
89752ACASE, TRANSMITTER HOUSING
STARTING SYSTEM-PUSH(WITH/SMART); WIRELESS DOOR LOCK-WITH
REFER84-24:PNC 89780; STARTING SYSTEM-PUSH(W/SMART),REFER84-24:PNC 89780; WIRELESS DOOR LOCK-WITH,REFER84-24:PNC 89780
89785BTRANSMITTER, TRANSPONDER KEY MASTER
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY; BLANK KEY,STARTING SYSTEM-PUSH(W/SMART)
BLANK KEY; BLANK KEY,STARTING SYSTEM-PUSH(W/SMART)
12 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota COROLLA NAP
This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota COROLLA NAP. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
