MARK 48510-02A80,MEXICO SPEC&TIRE & DISK WHEEL-205/55R16 ALUMI OS39 MEXICO; MARK 48510-02A80,MEXICO SPEC&TIRE & DISK WHEEL-205/55R16 STEEL OS39 MEXICO

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09A71i201112-201308

MARK 48520-02A70

main48520-09M00i200801-201012

MARK 48520-02580

main48520-09M20i200801-201012

MARK 48520-02570

main48520-09T60i201012-201112

MARK 48520-02820

main48520-09M30i201012-201112

MARK 48520-02590,MEXICO SPEC

main48520-8Z049i201204-201308

MARK 48520-02A80,MEXICO SPEC&TIRE & DISK WHEEL-205/55R16 ALUMI OS39 MEXICO; MARK 48520-02A80,MEXICO SPEC&TIRE & DISK WHEEL-205/55R16 STEEL OS39 MEXICO

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02190i200801-201012

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002i200801-201012

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90080-17217i200801-201012

48607ABRACKET SUB-ASSY, TOWER BAR, RH

main48607-12060i200801-201012

48608BRACKET SUB-ASSY, TOWER BAR, LH

main48608-12060i200801-201012

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02190i200801-201012

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002i200801-201012

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90080-17217i200801-201012

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-02020i200801-200806

(L)

main48684-52010i200801-201012

(J)

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-02020i200801-200806

(L)

main48684-52010i200801-201012

(J)

48690ADAMPER ASSY, SUSPENSION TOWER

main48690-12080i200801-201012

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02030i200801-201012

48811BAR, STABILIZER, FRONT

main48811-AB011i200801-201012

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-02100×2i200801-201012

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02030i200801-201012

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06020i200801-201012

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06020i200801-201012

9008017224

main90080-17224

90119A0180

main90119-A0180

90178A0072

main90178-A0072

90178A0090

main90178-A0090

33 parts on this diagram · 1 diagram in section

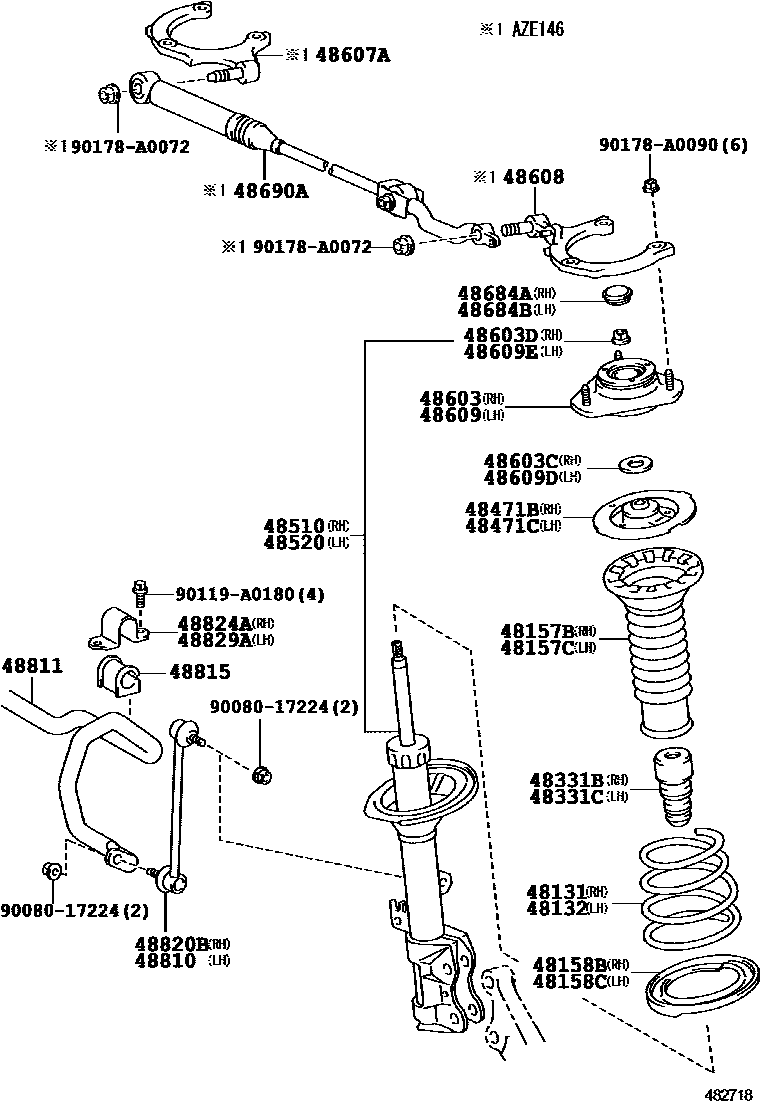

FRONT SPRING & SHOCK ABSORBER for Toyota COROLLA NAP

This section contains 33 genuine Toyota parts for the FRONT SPRING & SHOCK ABSORBER system of the Toyota COROLLA NAP. Key components include: SPRING, FRONT COIL, RH, SPRING, FRONT COIL, LH, INSULATOR, FRONT COIL SPRING, UPPER RH, INSULATOR, FRONT COIL SPRING, UPPER LH, INSULATOR, FRONT COIL SPRING, LOWER RH.
