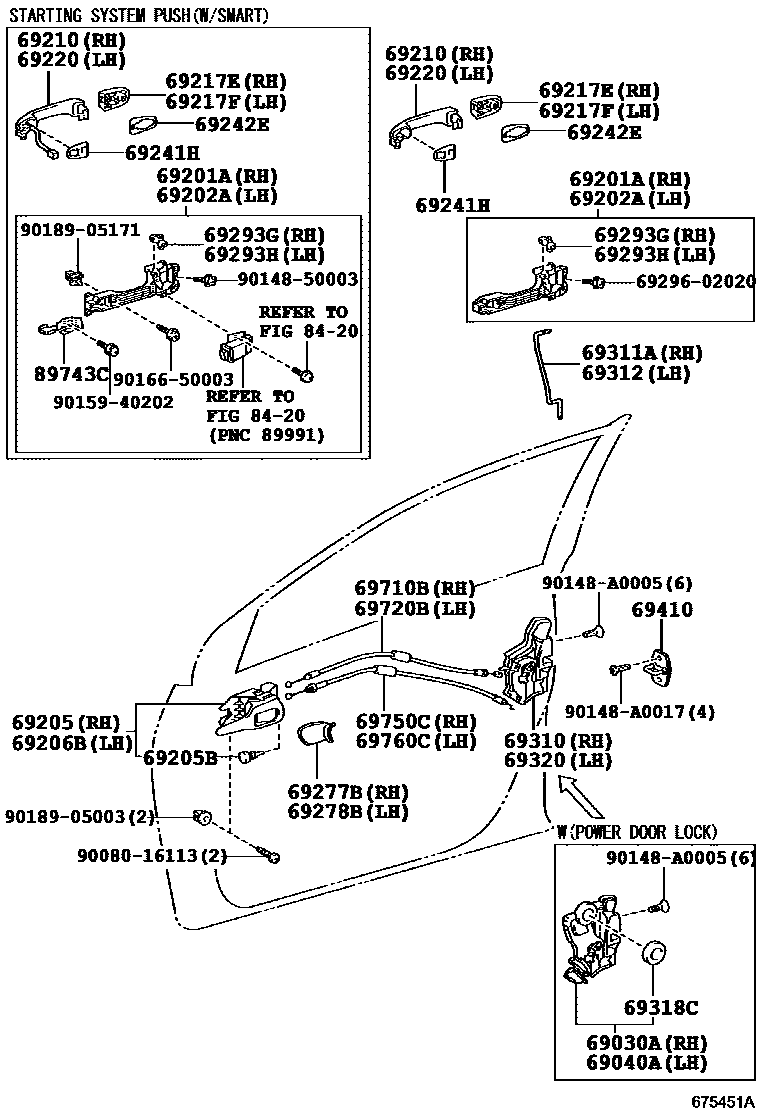

Toyota COROLLA NAP — FRONT DOOR LOCK & HANDLE

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-06200supersedes 69030-06210i200801-201012
WIRELESS DOOR LOCK-WITH; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY); WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY)&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
main69030-0C050i201110
WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY); WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY)&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
main69030-06210i201012-201109
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
main69030-0C060i201110
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-06180i200801-201012
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN); WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY); WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY)&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
main69040-0C050i201110
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN); WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY); WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY)&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-02120i201012-201308
main69201-02210i200801-200902
STARTING SYSTEM-PUSH(W/SMART)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-02090i200801-201012
main69202-02140i200801-201012
STARTING SYSTEM-PUSH(W/SMART)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-02170-B2i200801-201012
SILVER,TRIM1#; SILVER,TRIM1#,4#
main69205-02180-B0i200801-201012
GRAY,TRIM1#
main69205-02180-E0i201012-201308
GREGE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04027×2i200801-201012
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-02170-B2i200801-201012
SILVER,TRIM1#; SILVER,TRIM1#,4#
main69206-02190-B0i200801-201012
GRAY,TRIM1#
main69206-02190-E0i200801-201012
GREGE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69211-02080i201012-201308
NO PAINT REQ.
main69211-AA020-A0i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),SUPER WHITE 2,040; SUPER WHITE 2,040; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),SUPER WHITE 2,040
main69211-AA020-B6i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),GRAY ME.,1G3; GRAY ME.,1G3; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),GRAYME.,1G3
main69211-AA020-B7i201012-201308
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),SILVER ME.,1F7; SILVER ME.,1F7; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),SILVER ME.,1F7
main69211-AA020-C1i200801-201012
BLACK MC.,209; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLACK MC.,209; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLACK MC.,209
main69211-AA020-D6i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),RED M.M.,3R3; RED M.M.,3R3; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),REDM.M.,3R3
main69211-AA020-E0i200801-201012
BEIGE M. M.,4Q2; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BEIGE M. M.,4Q2; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BEIGE M. M.,4Q2
main69211-AA020-E4i201012-201308
BEIGE ME.,4T8; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BEIGE ME.,4T8; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BEIGE ME.,4T8
main69211-AA020-E6i201303-201308
ORANGE ME.,4R8
main69211-AA020-H1i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),TURQUOISE M.M.,779; TURQUOISE M.M.,779; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),TURQUOISE M.M.,779
main69211-AA020-J8i201012-201308
DK.BLUE MC.,8S6; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),DK.BLUE MC.,8S6; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),DK.BLUE MC.,8S6
main69211-AA020-J9i200801-201012
BLUE ME.,8T7; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLUE ME.,8T7; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLUEME.,8T7
main69211-AA020-K0i201303-201308
DEEP AMETHYST M.M.,9AH
main69211-AA020-R3i201012-201308
BLUE ME.,8U6; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLUE ME.,8U6; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLUEME.,8U6
main69210-02110-A0i200801-200902
STARTING SYSTEM-PUSH(W/SMART),SUPER WHITE 2,040
main69210-02110-B0i200801-201012
STARTING SYSTEM-PUSH(W/SMART),SILVER ME.,1F7
main69210-02110-B1i200801-201012
STARTING SYSTEM-PUSH(W/SMART),GRAY ME.,1G3
main69210-02110-C0i201112-201308
STARTING SYSTEM-PUSH(WITH/SMART),BLACK MC.,209
main69210-02110-D0i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),RED M.M.,3R3
main69210-02110-E0i200801-201012
STARTING SYSTEM-PUSH(W/SMART),BEIGE M. M.,4Q2
main69210-02110-E2i201208-201308
STARTING SYSTEM-PUSH(WITH/SMART),BEIGE ME.,4T8
main69210-02110-H0i200801-200902
STARTING SYSTEM-PUSH(W/SMART),TURQUOISE M.M.,779
main69210-02110-J0i200801-200902
STARTING SYSTEM-PUSH(W/SMART),BLUE ME.,8T7
main69210-02110-J2i201112-201308
STARTING SYSTEM-PUSH(WITH/SMART),DK.BLUE MC.,8S6
main69210-02110-J3i201012-201201
STARTING SYSTEM-PUSH(WITH/SMART),BLUE ME.,8U6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-AA010-A1supersedes 69227-AA010-A0i200801-201012
SUPER WHITE 2,040; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),SUPER WHITE 2,040; WIRELESS DOOR LOCK-WITH,SUPER WHITE 2,040
main69217-AA010-B3supersedes 69227-AA010-B6i200801-201012
GRAY ME.,1G3; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),GRAYME.,1G3; WIRELESS DOOR LOCK-WITH,GRAY ME.,1G3
main69217-AA010-B4supersedes 69227-AA010-B7i201012-201308
SILVER ME.,1F7; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),SILVER ME.,1F7
main69217-AA010-C1supersedes 69227-AA010-C1i200801-201012
BLACK MC.,209; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLACK MC.,209; WIRELESS DOOR LOCK-WITH,BLACK MC.,209
main69217-AA010-D2supersedes 69227-AA010-D6i200801-201012
RED M.M.,3R3; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),REDM.M.,3R3; WIRELESS DOOR LOCK-WITH,RED M.M.,3R3
main69217-AA010-E0i200801-201012
BEIGE M. M.,4Q2; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BEIGE M. M.,4Q2
main69217-AA010-E3i201012-201308
BEIGE ME.,4T8; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BEIGE ME.,4T8
main69217-AA010-E4i201303-201308
ORANGE ME.,4R8
main69217-AA010-H0i200801-201012
TURQUOISE M.M.,779; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),TURQUOISE M.M.,779
main69217-AA010-J4supersedes 69227-AA010-J9i200801-201012
BLUE ME.,8T7; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLUEME.,8T7; WIRELESS DOOR LOCK-WITH,BLUE ME.,8T7
main69217-AA010-J5i201012-201308
DK.BLUE MC.,8S6; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),DK.BLUE MC.,8S6
main69217-AA010-J8i201012-201308
BLUE ME.,8U6; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLUEME.,8U6
main69217-AA010-K0i201303-201308
DEEP AMETHYST M.M.,9AH
main69227-02040i201012-201308
BLACK
main69217-02230-A0i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),SUPER WHITE 2,040
main69217-02230-B0i201112-201308
STARTING SYSTEM-PUSH(WITH/SMART),SILVER ME.,1F7
main69217-02230-B1i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),GRAY ME.,1G3
main69217-02230-C0i200801-201012
STARTING SYSTEM-PUSH(W/SMART),BLACK MC.,209
main69217-02230-D0i200801-200902
STARTING SYSTEM-PUSH(W/SMART),RED M.M.,3R3
main69217-02230-E0i200801-200902
STARTING SYSTEM-PUSH(W/SMART),BEIGE M. M.,4Q2
main69217-02230-E2i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),BEIGE ME.,4T8
main69217-02230-H0i200801-201012
STARTING SYSTEM-PUSH(W/SMART),TURQUOISE M.M.,779
main69217-02230-J0i200801-200902
STARTING SYSTEM-PUSH(W/SMART),BLUE ME.,8T7
main69217-02230-J2i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),DK.BLUE MC.,8S6
main69217-02230-J3i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),BLUE ME.,8U6
main69227-AA010-A0i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),SUPER WHITE 2,040; SUPER WHITE 2,040
main69227-AA010-B6i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),GRAY ME.,1G3; GRAY ME.,1G3
main69227-AA010-B7i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),SILVER ME.,1F7; SILVER ME.,1F7
main69227-AA010-C1i200801-201012
BLACK MC.,209; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLACK MC.,209
main69227-AA010-D6i201012-201308
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),RED M.M.,3R3
main69227-AA010-E0i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BEIGE M. M.,4Q2
main69227-AA010-E4i201012-201308
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BEIGE ME.,4T8
main69227-AA010-H1i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),TURQUOISE M.M.,779
main69227-AA010-J8i201012-201308
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),DK.BLUE MC.,8S6
main69227-AA010-J9i200801-201012
BLUE ME.,8T7; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLUE ME.,8T7
main69227-AA010-R3i201012-201308
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLUE ME.,8U6
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69227-02040i200801-201012
BLACK
main69227-AA010-A0i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),SUPER WHITE 2,040; SUPER WHITE 2,040; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),SUPER WHITE 2,040
main69227-AA010-B6i201012-201308
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),GRAY ME.,1G3; GRAY ME.,1G3; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),GRAYME.,1G3
main69227-AA010-B7i201012-201308
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),SILVER ME.,1F7; SILVER ME.,1F7; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),SILVER ME.,1F7
main69227-AA010-C1i200801-201012
BLACK MC.,209; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLACK MC.,209; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLACK MC.,209
main69227-AA010-D6i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),RED M.M.,3R3; RED M.M.,3R3; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),REDM.M.,3R3
main69227-AA010-E0i200801-201012
BEIGE M. M.,4Q2; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BEIGE M. M.,4Q2; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BEIGE M. M.,4Q2
main69227-AA010-E4i201012-201308
BEIGE ME.,4T8; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BEIGE ME.,4T8; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BEIGE ME.,4T8
main69227-AA010-E6i201303-201308
ORANGE ME.,4R8
main69227-AA010-H1i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),TURQUOISE M.M.,779; TURQUOISE M.M.,779; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),TURQUOISE M.M.,779
main69227-AA010-J8i201012-201308
DK.BLUE MC.,8S6; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),DK.BLUE MC.,8S6; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),DK.BLUE MC.,8S6
main69227-AA010-J9i200801-201012
BLUE ME.,8T7; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLUE ME.,8T7; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLUEME.,8T7
main69227-AA010-K0i201303-201308
DEEP AMETHYST M.M.,9AH
main69227-AA010-R3i201012-201308
BLUE ME.,8U6; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLUE ME.,8U6; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLUEME.,8U6
main69217-02240-A0i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),SUPER WHITE 2,040
main69217-02240-B0i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),SILVER ME.,1F7
main69217-02240-B1i200801-200902
STARTING SYSTEM-PUSH(W/SMART),GRAY ME.,1G3
main69217-02240-C0i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),BLACK MC.,209
main69217-02240-D0i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),RED M.M.,3R3
main69217-02240-E0i200801-200902
STARTING SYSTEM-PUSH(W/SMART),BEIGE M. M.,4Q2
main69217-02240-E2i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),BEIGE ME.,4T8
main69217-02240-H0i200801-201012
STARTING SYSTEM-PUSH(W/SMART),TURQUOISE M.M.,779
main69217-02240-J0i200801-200902
STARTING SYSTEM-PUSH(W/SMART),BLUE ME.,8T7
main69217-02240-J2i201112-201308
STARTING SYSTEM-PUSH(WITH/SMART),DK.BLUE MC.,8S6
main69217-02240-J3i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),BLUE ME.,8U6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69211-02080i201012-201308
NO PAINT REQ.
main69211-AA020-A0i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),SUPER WHITE 2,040; SUPER WHITE 2,040; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),SUPER WHITE 2,040
main69211-AA020-B6i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),GRAY ME.,1G3; GRAY ME.,1G3; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),GRAYME.,1G3
main69211-AA020-B7i201012-201308
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),SILVER ME.,1F7; SILVER ME.,1F7; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),SILVER ME.,1F7
main69211-AA020-C1i200801-201012
BLACK MC.,209; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLACK MC.,209; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLACK MC.,209
main69211-AA020-D6i201012-201308
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),RED M.M.,3R3; RED M.M.,3R3; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),REDM.M.,3R3
main69211-AA020-E0i200801-201012
BEIGE M. M.,4Q2; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BEIGE M. M.,4Q2; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BEIGE M. M.,4Q2
main69211-AA020-E4i201012-201308
BEIGE ME.,4T8; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BEIGE ME.,4T8; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BEIGE ME.,4T8
main69211-AA020-E6i201303-201308
ORANGE ME.,4R8
main69211-AA020-H1i200801-201012
DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),TURQUOISE M.M.,779; TURQUOISE M.M.,779; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),TURQUOISE M.M.,779
main69211-AA020-J8i201012-201308
DK.BLUE MC.,8S6; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),DK.BLUE MC.,8S6; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),DK.BLUE MC.,8S6
main69211-AA020-J9i200801-201012
BLUE ME.,8T7; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLUE ME.,8T7; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLUEME.,8T7
main69211-AA020-K0i201303-201308
DEEP AMETHYST M.M.,9AH
main69211-AA020-R3i201012-201308
BLUE ME.,8U6; DOOR OUTSIDE HANDLE-BODY COLOR,DRIVER & PASSENGER=WITH(KEY),BLUE ME.,8U6; WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY),BLUEME.,8U6
main69210-02110-A0i201112-201308
STARTING SYSTEM-PUSH(WITH/SMART),SUPER WHITE 2,040
main69210-02110-B0i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),SILVER ME.,1F7
main69210-02110-B1i201112-201308
STARTING SYSTEM-PUSH(WITH/SMART),GRAY ME.,1G3
main69210-02110-C0i200801-201012
STARTING SYSTEM-PUSH(W/SMART),BLACK MC.,209
main69210-02110-D0i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),RED M.M.,3R3
main69210-02110-E0i200801-200902
STARTING SYSTEM-PUSH(W/SMART),BEIGE M. M.,4Q2
main69210-02110-E2i201208-201308
STARTING SYSTEM-PUSH(WITH/SMART),BEIGE ME.,4T8
main69210-02110-H0i200801-201012
STARTING SYSTEM-PUSH(W/SMART),TURQUOISE M.M.,779
main69210-02110-J0i200801-201012
STARTING SYSTEM-PUSH(W/SMART),BLUE ME.,8T7
main69210-02110-J2i201012-201308
STARTING SYSTEM-PUSH(WITH/SMART),DK.BLUE MC.,8S6
main69210-02110-J3i201012-201201
STARTING SYSTEM-PUSH(WITH/SMART),BLUE ME.,8U6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-AA020×2i200801-201012
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69238-AA010×2i201012-201308
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-02130-B0i201012-201308
DK.GRAY,TRIM1#; DK.GRAY,TRIM18
main69277-02130-B1i201012-201308
GRAY,TRIM1#; GRAY,TRIM16
main69277-02130-E0i201012-201308
GREGE,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-02120-B0i201012-201308
DK.GRAY,TRIM1#; DK.GRAY,TRIM18
main69278-02120-B1i201012-201308
GRAY,TRIM1#; GRAY,TRIM16
main69278-02120-E0i200801-201012
GREGE,TRIM4#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-33010i200801-201012
main69293-12030i201112-201308
STARTING SYSTEM-PUSH(WITH/SMART)
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-33020i201012-201308
main69293-12040i200801-201012
STARTING SYSTEM-PUSH(W/SMART)
69310LOCK ASSY, FRONT DOOR, RH
main69310-0C020i200801-201012
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-02170i200801-201012
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-02170i200801-201012
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-AA010×2i200801-201012
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN); WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY); WIRELESS DOOR LOCK-WITH&DOOR OUTSIDE HANDLE-BODY COLOR,PASSENGER=WITHOUT(KEY)&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN)
69320LOCK ASSY, FRONT DOOR, LH
main69320-0C020i200801-201012
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-AA030×2i201012
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-02150i200801-201012
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-02150i200801-201012
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-02180i200801-201012
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-02180i200801-201012
8420WIRELESS DOOR LOCK
→ Go to FIG 84-20
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
main89743-47010i200801-201012
STARTING SYSTEM-PUSH(W/SMART),PASSENGER SIDE
main89743-47020i201112-201308
STARTING SYSTEM-PUSH(WITH/SMART),DRIVER SIDE
6929602020SCREW, DOOR INSIDE HANDLE
main69296-02020
9008016113
main90080-16113
9014850003
main90148-50003
90148A0005
main90148-A0005
90148A0017
main90148-A0017
9015940202
main90159-40202
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171

38 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota COROLLA NAP

This section contains 38 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota COROLLA NAP. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.

Toyota COROLLA NAP FRONT DOOR LOCK & HANDLE — Parts Diagram | EPC Data
