Toyota COROLLA NAP — ELECTRONIC FUEL INJECTION SYSTEM

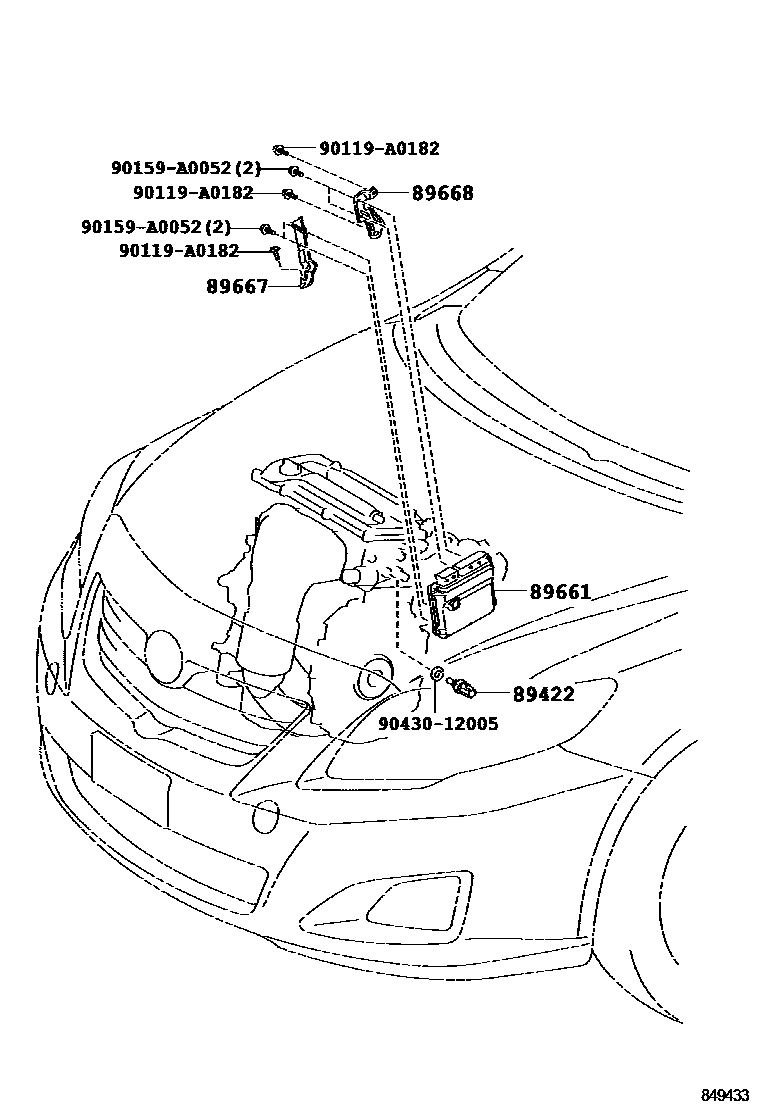

Parts diagram

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-06010i200801-201012

(L)

main89422-33030i200801-201012

(J)

89661COMPUTER, ENGINE CONTROL

main89661-02F50i200902-200904

main89661-02F51i200905-200911

main89661-02F52i200912-201012

main89661-02L10i200801-200902

main89661-02L80i200801-200805

main89661-02L81i200806-200808

main89661-02L82i200809-200902

main89661-02M30i200801-200803

main89661-02M31i200804-200902

main89661-02M90i200801-200805

main89661-02M91i200806-200808

main89661-02M92i200809-200902

main89661-02Q60i201012-201108

main89661-02Q61i201109-201112

main89661-02U70i200902-200904

main89661-02U71i200905-200911

main89661-02U72i200912-201012

main89661-02U90i200902-200903

main89661-02U91i200903-201006

main89661-02U92i201007-201012

main89661-02V00i200902-201006

main89661-02V01i201007-201012

main89661-02Z90i201012-201208

main89661-0Z120i201012-201208

main89661-0Z130i201112

main89661-0Z140supersedes 89661-0Z120i201112

main89661-0Z560i201012-201108

main89661-0Z561i201109-201112

main89661-0ZA40i201112-201206

main89661-0ZA41i201207

main89661-0ZA60i201112-201206

main89661-0ZA61i201207

main89661-02L50i200801-200902

MEXICO SPEC

main89661-02M40i200801-200803

MEXICO SPEC

main89661-02M41i200804-200902

MEXICO SPEC

main89661-02N00i200801-200805

MEXICO SPEC

main89661-02N01i200806-200808

MEXICO SPEC

main89661-02N02i200809-200902

MEXICO SPEC

main89661-02U80i200902-200904

MEXICO SPEC

main89661-02U81i200905-200911

MEXICO SPEC

main89661-02U82i200912-201012

MEXICO SPEC

main89661-02V10i200902-200903

MEXICO SPEC

main89661-02V11i200903-201012

MEXICO SPEC

main89661-02V20i200902-201012

MEXICO SPEC

main89661-02V40i200902-200903

MEXICO SPEC

main89661-02V41i200904-200911

MEXICO SPEC

main89661-02V42i200912-201012

MEXICO SPEC

main89661-0Z570i201012-201108

MEXICO SPEC

main89661-0Z571i201109-201112

MEXICO SPEC

main89661-0Z580i201012-201112

MEXICO SPEC

main89661-0ZA70i201112

MEXICO SPEC

main89661-0ZA80i201112

MEXICO SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-02220i201012

main89667-02230i200801-201012

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02190i200801-201012

main89668-02200i200801-201012

90119A0182

main90119-A0182

90159A0052

main90159-A0052

9043012005

main90430-12005

7 parts on this diagram · 2 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota COROLLA NAP

This section contains 8 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota COROLLA NAP. Key components include: SENSOR, WATER TEMPERATURE (FOR E.F.I.), COMPUTER, ENGINE CONTROL, BRACKET, ENGINE CONTROL COMPUTER, BRACKET, ENGINE CONTROL COMPUTER, NO.2.

Toyota COROLLA NAP ELECTRONIC FUEL INJECTION SYSTEM — Parts Diagram | EPC Data
