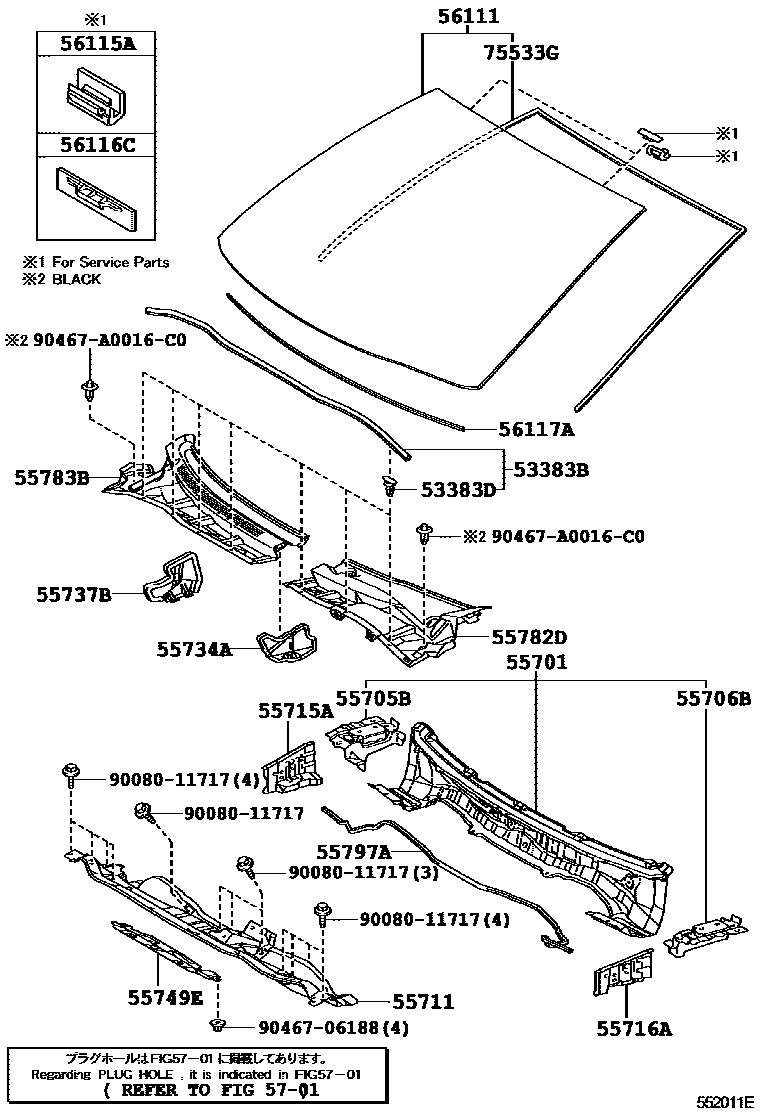

Toyota COROLLA NAP — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-02140i201012

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×7i201012

main67868-02020×7i200801-201012

55701PANEL SUB-ASSY, COWL

main55700-02410i200801-201012

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02080i200801-201012

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02080i200801-201012

55711PANEL, COWL TOP, OUTER

main55701-02260i200801-201012

55715ABRACE, COWL TOP TO APRON, RH

main55715-02020i200801-201012

55716ABRACE, COWL TOP TO APRON, LH

main55716-02020i200801-201012

55734APLATE, WATER GUARD, RH

main55734-02080i200801-201012

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02060i200801-201012

55749EPLATE, COWL TOP INSULATOR, NO.2

main55749-02050i200801-201012

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02300i200801-201012

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-02410supersedes 55708-02420i201112

HAWAII SPEC; PUERTO RICO SPEC

main55708-02420supersedes 55708-02410i201012

55797ASEAL, COWL WATER EXTRACT

main55797-02040i201012

56111GLASS, WINDSHIELD

main56101-02470i200801-200810

*LAM,T=4.7,GREEN,FRAME NO.=ZXXXXXX

main56101-02640i200801-200810

*HSEAL,T=4.7,GREEN,FRAME NO.=CXXXXXX

main56101-02730i200810-201012

*LAM,T=4.7,GREEN,FRAME NO.=ZXXXXXX

main56101-02740i200810-201012

*HSEAL,T=4.7,GREEN,FRAME NO.=CXXXXXX

main56101-02810i201012-201308

*LAM,T=4.7,GREEN,FRAME NO.=PXXXXXX

main56101-02820i201012-201308

*HSEAL,T=4.7,GREEN,FRAME NO.=CXXXXXX

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2i200801-201012

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200801-201012

56117ADAM, WINDOW GLASS ADHESIVE

main90998-91004i201012-201308

*H,L=3454

5701HOLE PLUG

→ Go to FIG 57-01

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-02150i201012

9008011717

main90080-11717

9046706188

main90467-06188

90467A0016C0

main90467-A0016C0

23 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA NAP

This section contains 23 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA NAP. Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH.
