Toyota COROLLA NAP — CONSOLE BOX & BRACKET

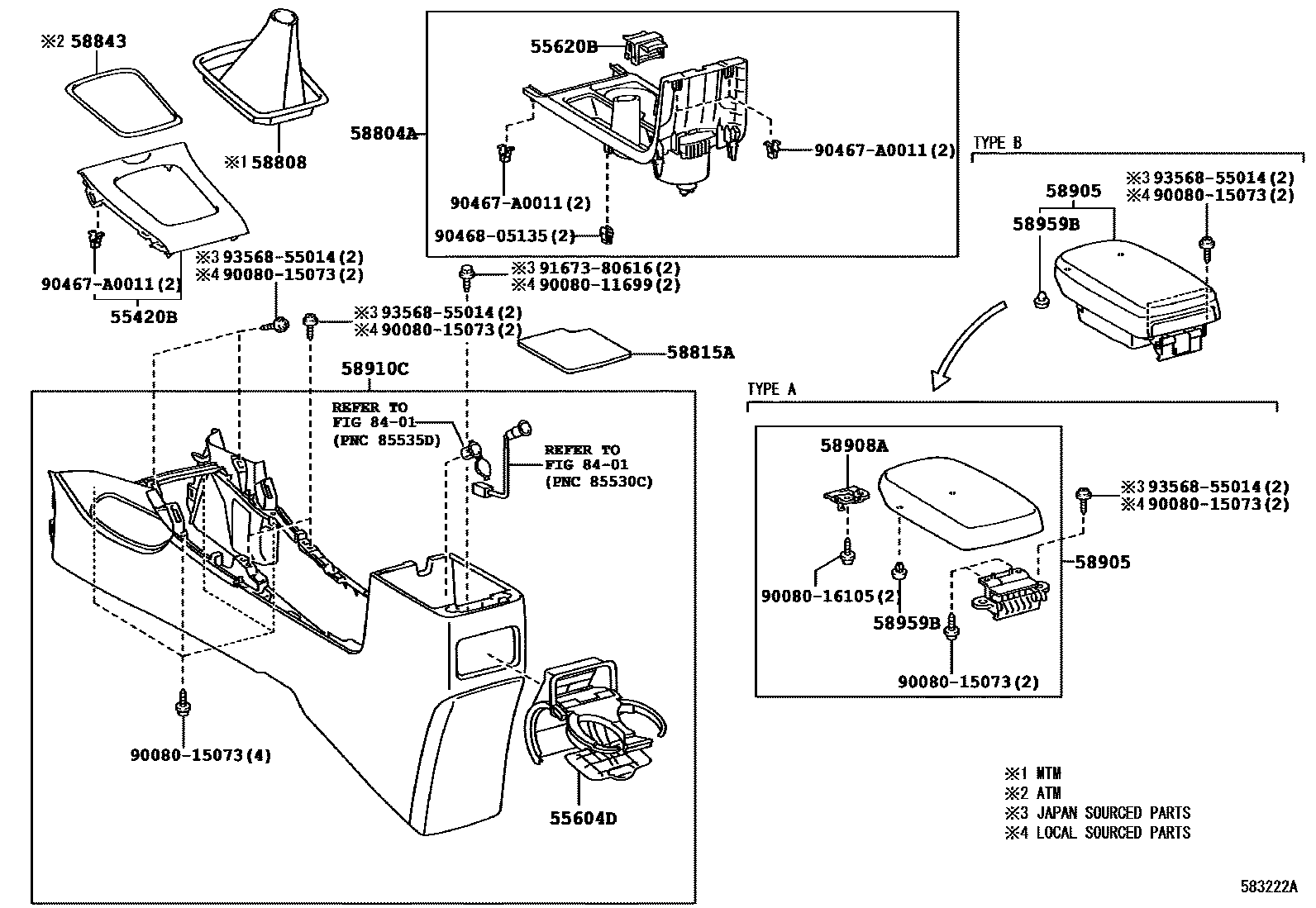

Parts diagram
55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1
main55420-02380i200801-201012
main55420-02390i200801-201012
main55420-02400i200801-201012
main55420-02590i201012
main55420-02600i201012-201112
55604DHOLDER SUB-ASSY, INSTRUMENT PANEL CUP
main55604-02050-B0i201012-201308
DK.GRAY,TRIM18
main55604-02050-B0i200801-201308
DK.GRAY,TRIM1#
main55604-02050-B1i201012-201308
GRAY,TRIM16
main55604-02050-B1i200801-201308
GRAY,TRIM1#
main55604-02050-E0i200801-201308
GREGE,TRIM4#
55620BHOLDER, INSTRUMENT PANEL CUP
main55620-02140-B0i200801-201012
DK.GRAY,TRIM1#
main55620-02140-B1i200801-201012
GRAY,TRIM1#
main55620-02140-E0i200801-201012
GREGE,TRIM4#
58804APANEL SUB-ASSY, CONSOLE, UPPER
main58804-02040-B0i201012-201308
DK.GRAY,TRIM18
main58804-02040-B0i201012-201308
DK.GRAY,TRIM1#
main58804-02040-B1i201012-201308
GRAY,TRIM1#
main58804-02040-B1i201012-201308
GRAY,TRIM16
main58804-02040-E0i201012-201308
GREGE,TRIM4#
main58804-02080-B0i200801-201012
DK.GRAY,TRIM1#
main58804-02080-B2i200801-201012
GRAY,TRIM1#
main58804-02080-E0i200801-201012
GREGE,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-12300-B0i200801-200905
DK.GRAY,TRIM1#
main58808-12300-E0i200801-200905
ASH BROWN,TRIM4#
main58808-12390-B0i200905-201308
DK.GRAY,TRIM1#
main58808-12390-B0i201012-201308
DK.GRAY,TRIM1#,4#
main58808-12390-E0i200905-201012
ASH BROWN,TRIM4#
58815ACARPET, CONSOLE BOX
main58815-02130i200801-201012
main58815-02260i201012
58843BEZEL, SHIFTING HOLE
main58843-02080i200801-201012
main58843-02090i200801-201012
main58843-02090i200902-201012
LE
main58843-02100i200801-201012
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
main58905-02460-B0i201012-201308
DK.GRAY,TRIM1#
main58905-02460-B0i200801-201012
DK.GRAY,TRIM1#,TYPE A:REFER ILLUST.
main58905-02460-B0i201012-201308
DK.GRAY,TRIM18
main58905-02460-B1i201012-201308
GRAY,TRIM1#
main58905-02460-B1i200801-201012
GRAY,TRIM1#,TYPE A:REFER ILLUST.
main58905-02460-B1i201012-201308
GRAY,TRIM16
main58905-02460-E0i200801-201012
GREGE,TRIM4#,TYPE A:REFER ILLUST.
main58905-02460-E0i201012-201308
GREGE,TRIM4#
main58905-02470-B1i200801-201012
GREY,TRIM1#,TYPE B:REFER ILLUST.
main58905-02470-E1i200801-201012
GREGE,TRIM4#,TYPE B:REFER ILLUST.
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58908-33030i200801-201012
58910CBOX ASSY, CONSOLE, REAR
main58910-02120-B0i200801-201012
DK.GRAY,TRIM1#
main58910-02120-B1i200801-201012
GRAY,TRIM1#
main58910-02120-E0i200801-201012
GREGE,TRIM4#
main58910-02340-B0i201012-201308
DK.GRAY,TRIM18
main58910-02340-B0i201012-201308
DK.GRAY,TRIM1#
main58910-02340-B1i201012-201308
GRAY,TRIM1#
main58910-02340-B1i201012-201308
GRAY,TRIM16
main58910-02340-E0i201012-201308
GREGE,TRIM4#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
main58959-60060i200801-201012
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9008011699
main90080-11699
9008015073
main90080-15073
9008016105
main90080-16105
90467A0011
main90467-A0011
9046805135
main90468-05135
9167380616
main91673-80616
9356855014
main93568-55014

19 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota COROLLA NAP

This section contains 20 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA NAP. Key components include: PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1, HOLDER SUB-ASSY, INSTRUMENT PANEL CUP, HOLDER, CONSOLE BOX CUP, HOLDER, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER.
