Toyota COROLLA NAP — ARMREST & VISOR

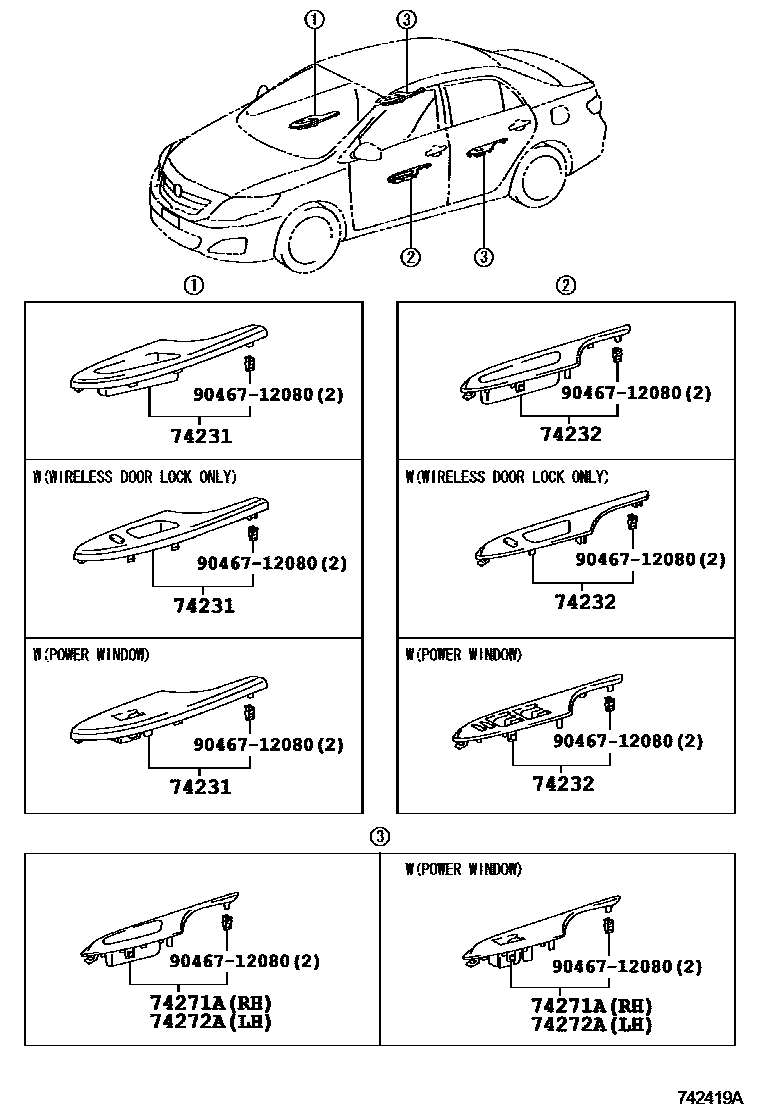

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-02710-B1supersedes 74231-02690-B0i201112-201308
DK.GRAY,TRIM1#
main74231-02720-B0supersedes 74231-02700-B0i201112-201308
SILVER,TRIM1#; SILVER,TRIM1#,4#
main74231-02730-E0i200801-201012
BROWN,TRIM1#,4#
main74231-02B40-E1supersedes 74231-02720-B0i201012-201112
DARK BROWN,TRIM1#,4#
main74231-02690-B1supersedes 74231-02680-B0i201012-201308
WIRELESS DOOR LOCK-WITH,GRAY,TRIM1#
main74231-02690-E0supersedes 74231-02680-E0i201012-201308
WIRELESS DOOR LOCK-WITH,GREGE,TRIM4#
main74231-02710-B0supersedes 74231-02680-B0i201012-201308
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#; WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#
main74231-02710-E0supersedes 74231-02680-E0i200801-201012
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#; WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-02720-B1supersedes 74232-02700-B0i201112-201308
DK.GRAY,TRIM1#
main74232-02730-B0supersedes 74232-02710-B0i201112-201308
SILVER,TRIM1#; SILVER,TRIM1#,4#
main74232-02740-E0i200801-201012
BROWN,TRIM1#,4#
main74232-02B70-E2supersedes 74232-02730-B0i201012-201112
DARK BROWN,TRIM1#,4#
main74232-02700-B1supersedes 74232-02690-B0i200801-201012
WIRELESS DOOR LOCK-WITH,GRAY,TRIM1#
main74232-02700-E0supersedes 74232-02690-E0i200801-201012
WIRELESS DOOR LOCK-WITH,GREGE,TRIM4#
main74232-02720-B0supersedes 74232-02690-B0i201012-201308
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#; WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#
main74232-02720-E0supersedes 74232-02690-E0i201012-201308
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#; WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-02250-B1supersedes 74271-02230-B0i201112-201308
DK.GRAY,TRIM1#
main74271-02260-B0supersedes 74271-02240-B0i201112-201308
SILVER,TRIM1#; SILVER,TRIM1#,4#
main74271-02270-E0i200801-201012
BROWN,TRIM1#,4#
main74271-02480-E1supersedes 74271-02260-B0i201012-201112
DARK BROWN,TRIM1#,4#
main74271-02250-B0supersedes 74271-02230-B1i201012-201308
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#; WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#
main74271-02250-E0supersedes 74271-02230-E0i201012-201308
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#; WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-02240-B1supersedes 74272-02220-B0i201112-201308
DK.GRAY,TRIM1#
main74272-02250-B0supersedes 74272-02230-B0i201112-201308
SILVER,TRIM1#; SILVER,TRIM1#,4#
main74272-02260-E0i200801-201012
BROWN,TRIM1#,4#
main74272-02480-E1supersedes 74272-02250-B0i201012-201112
DARK BROWN,TRIM1#,4#
main74272-02240-B0supersedes 74272-02220-B1i200801-201012
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#; WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GRAY,TRIM1#
main74272-02240-E0supersedes 74272-02220-E0i200801-201012
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#; WIRELESS DOOR LOCK-WITH&POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),GREGE,TRIM4#
9046712080
main90467-12080

5 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota COROLLA NAP

This section contains 13 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA NAP. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, PANEL, REAR DOOR ARMREST BASE, UPPER RH, PANEL, REAR DOOR ARMREST BASE, UPPER LH, VISOR ASSY, RH.
