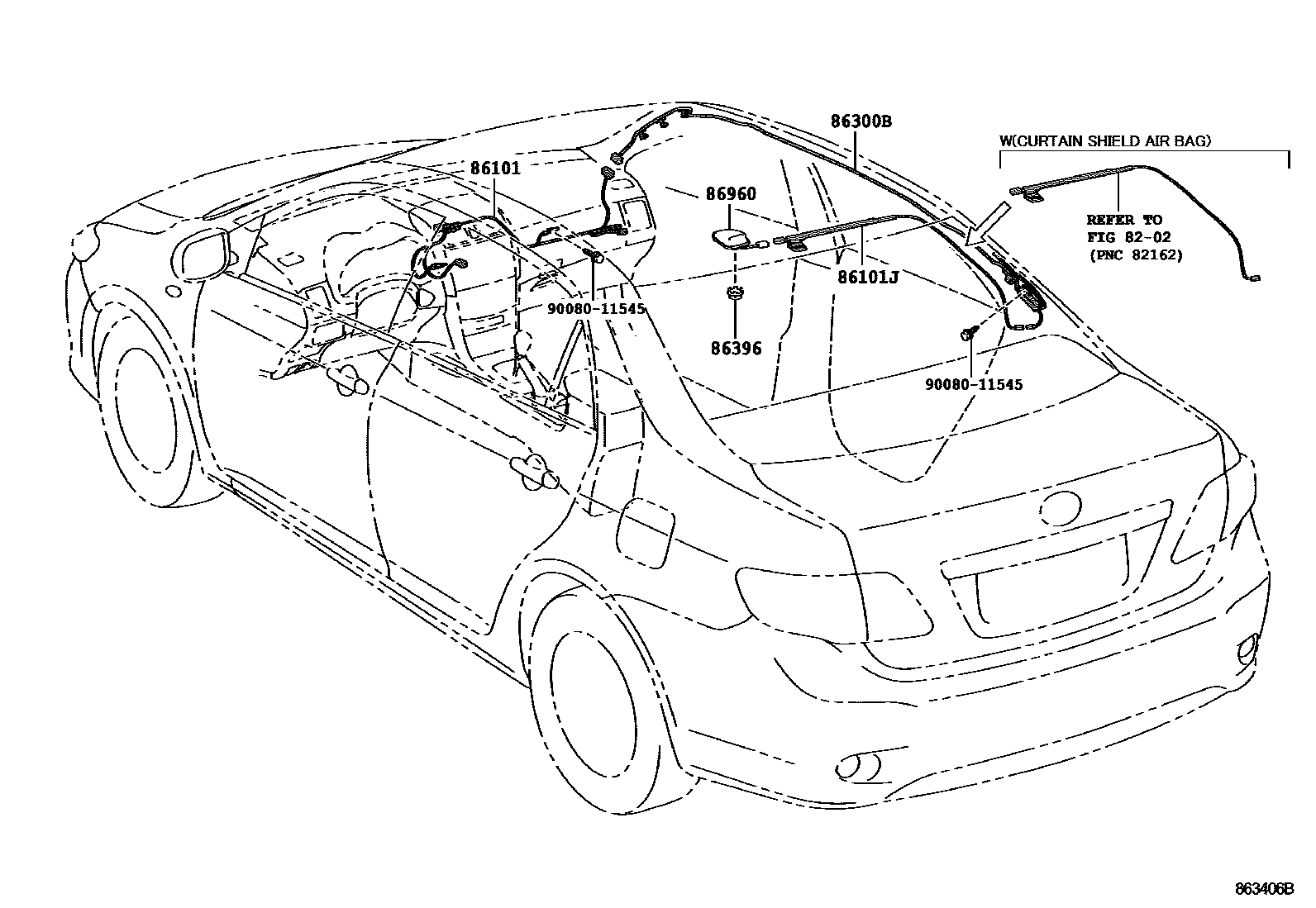

Toyota COROLLA NAP — ANTENNA
8202WIRING & CLAMP
86101CORD SUB-ASSY, ANTENNA
AUDIO-AM/FM CD 6SPEAKER BLUETOOTH
main86101-02470iAZE141,ZRE142..NAP..(S,XRS)..CND; ZRE142..NAP..LE;AZE141,ZRE142..NAP..(S,XRS)..USA201012-201112
AUDIO-AM/FM CD 6SPEAKER BLUETOOTH
AUDIO-JBL-AM/FM CD-CHANGER 8SPEAKER BLUETOOTH
86101JCORD SUB-ASSY, ANTENNA, NO.2
SRS AIR BAG-WITH(DRIVER & PASSENGER)
AUDIO-JBL-AM/FM CD CHANGER 8SPEAKER BLUETOOTH
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-02290iAZE141,ZRE142..NAP..(S,XRS)..CND; ZRE142..NAP..LE..USA; ZRE142..NAP..LE;AZE141,ZRE142..NAP..(S,XRS)..USA201012-201112
AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; AUDIO-JBL-AM/FM CD-CHANGER 8SPEAKER BLUETOOTH
86396NUT, ANTENNA
main86396-20040iAZE141,ZRE142..NAP..(LE,S,XRS)..USA; AZE141,ZRE142..NAP..(S,XRS)..CND; AZE141,ZRE142..NAP..(S,XRS)..USA; AZE141..NAP..USA; ZRE142..NAP..LE..CND; ZRE142..NAP..LE..USA; ZRE142..NAP..LE;AZE141,ZRE142..NAP..(S,XRS)..USA201012-201112
AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; AUDIO-JBL-AM/FM CD-CHANGER 8SPEAKER BLUETOOTH; HAWAII SPEC OR PUERTO RICO SPEC&LEATHER PACKAGE&MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; HAWAII SPEC OR PUERTO RICO SPEC&MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; HAWAII SPEC OR PUERTO RICO SPEC&MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-JBL-AM/FM CD-CHANGER 8SPEAKER BLUETOOTH; MEXICO SPEC&LEATHER PACKAGE&MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; MEXICO SPEC&MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-JBL-AM/FM CD-CHANGER 8SPEAKER BLUETOOTH; MOON ROOF-TILT & SLIDE MOON ROOF&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-AM/FMCD 6SPEAKER BLUETOOTH; MOON ROOF-TILT & SLIDE MOON ROOF&SEAT HEATER-WITH(DRIVER & PASSENGER)&STARTING SYSTEM-PUSH(WITH/SMART)&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; MOON ROOF-TILT & SLIDE MOON ROOF&STARTING SYSTEM-PUSH(WITH/SMART)&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; SEAT HEATER-WITH(DRIVER & PASSENGER)&STARTING SYSTEM-PUSH(WITH/SMART)&AUDIO-AM/FMCD 6SPEAKER BLUETOOTH; STARTING SYSTEM-PUSH(WITH/SMART)&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH
86960ANTENNA ASSY, SATELLITE RADIO
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
BEIGE M. M.,4Q2
TURQUOISE M.M.,779
BLUE ME.,8T7
main86960-02040iAZE141,ZRE142..NAP..(LE,S,XRS)..USA; AZE141,ZRE142..NAP..(S,XRS)..CND; AZE141,ZRE142..NAP..(S,XRS)..USA; AZE141..NAP..USA; ZRE142..NAP..LE..CND; ZRE142..NAP..LE..USA; ZRE142..NAP..LE;AZE141,ZRE142..NAP..(S,XRS)..USA201012-201112
AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; AUDIO-JBL-AM/FM CD-CHANGER 8SPEAKER BLUETOOTH; HAWAII SPEC OR PUERTO RICO SPEC&LEATHER PACKAGE&MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; HAWAII SPEC OR PUERTO RICO SPEC&MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; HAWAII SPEC OR PUERTO RICO SPEC&MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-JBL-AM/FM CD-CHANGER 8SPEAKER BLUETOOTH; MEXICO SPEC&LEATHER PACKAGE&MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; MEXICO SPEC&MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; MOON ROOF-TILT & SLIDE MOON ROOF&AUDIO-JBL-AM/FM CD-CHANGER 8SPEAKER BLUETOOTH; MOON ROOF-TILT & SLIDE MOON ROOF&SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-AM/FMCD 6SPEAKER BLUETOOTH; MOON ROOF-TILT & SLIDE MOON ROOF&SEAT HEATER-WITH(DRIVER & PASSENGER)&STARTING SYSTEM-PUSH(WITH/SMART)&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; MOON ROOF-TILT & SLIDE MOON ROOF&STARTING SYSTEM-PUSH(WITH/SMART)&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; SEAT HEATER-WITH(DRIVER & PASSENGER)&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH; SEAT HEATER-WITH(DRIVER & PASSENGER)&STARTING SYSTEM-PUSH(WITH/SMART)&AUDIO-AM/FMCD 6SPEAKER BLUETOOTH; STARTING SYSTEM-PUSH(WITH/SMART)&AUDIO-AM/FM CD 6SPEAKER BLUETOOTH
9008011545
main90080-11545
7 parts on this diagram · 1 diagram in section
ANTENNA for Toyota COROLLA NAP
This section contains 7 genuine Toyota parts for the ANTENNA system of the Toyota COROLLA NAP. Key components include: WIRING & CLAMP, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.2, ANTENNA ASSY, AMPLIFIER, NO.1, NUT, ANTENNA.
