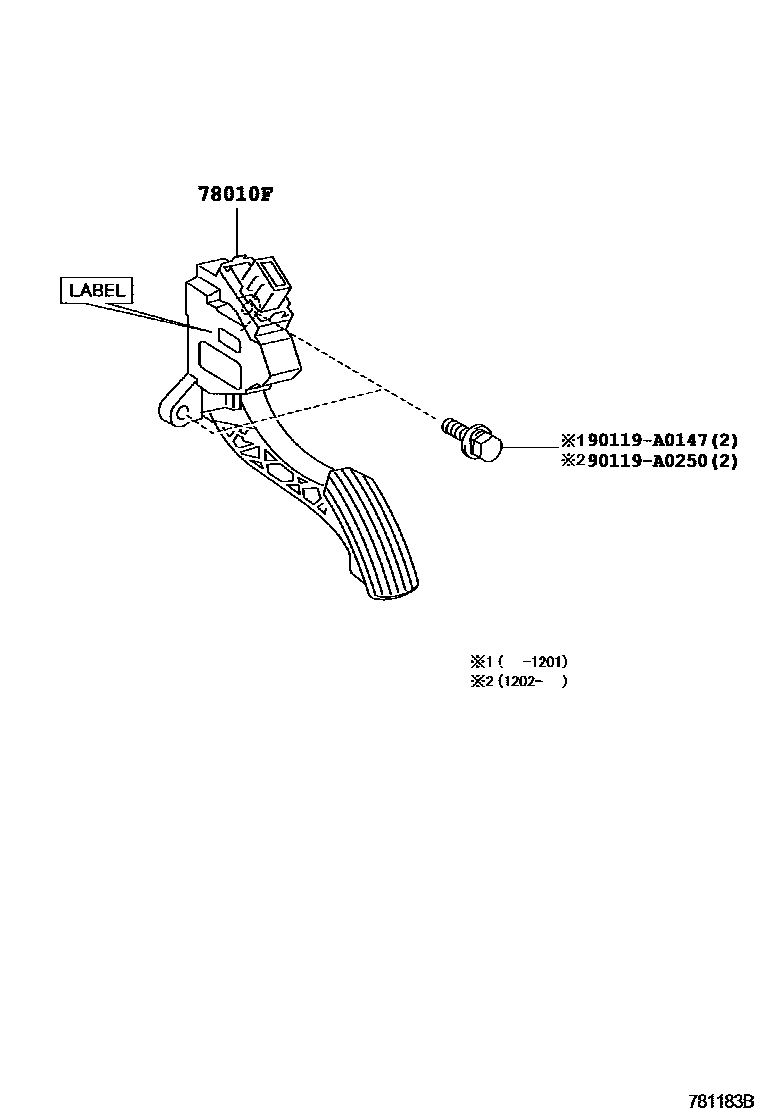

Toyota COROLLA NAP — ACCELERATOR LINK

78010FPEDAL ASSY, ACCELERATOR

main78110-06070i201003-201012

LABEL=78110-06070

main78110-07010i200801-200803

main78110-07011i200803-201002

main78110-08010i201003-201012

LABEL=78110-08010

main78110-33110i201003-201012

LABEL=78110-33110

90119A0147

main90119-A0147

90119A0250

main90119-A0250

3 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota COROLLA NAP

This section contains 3 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA NAP. Key components include: PEDAL ASSY, ACCELERATOR.
