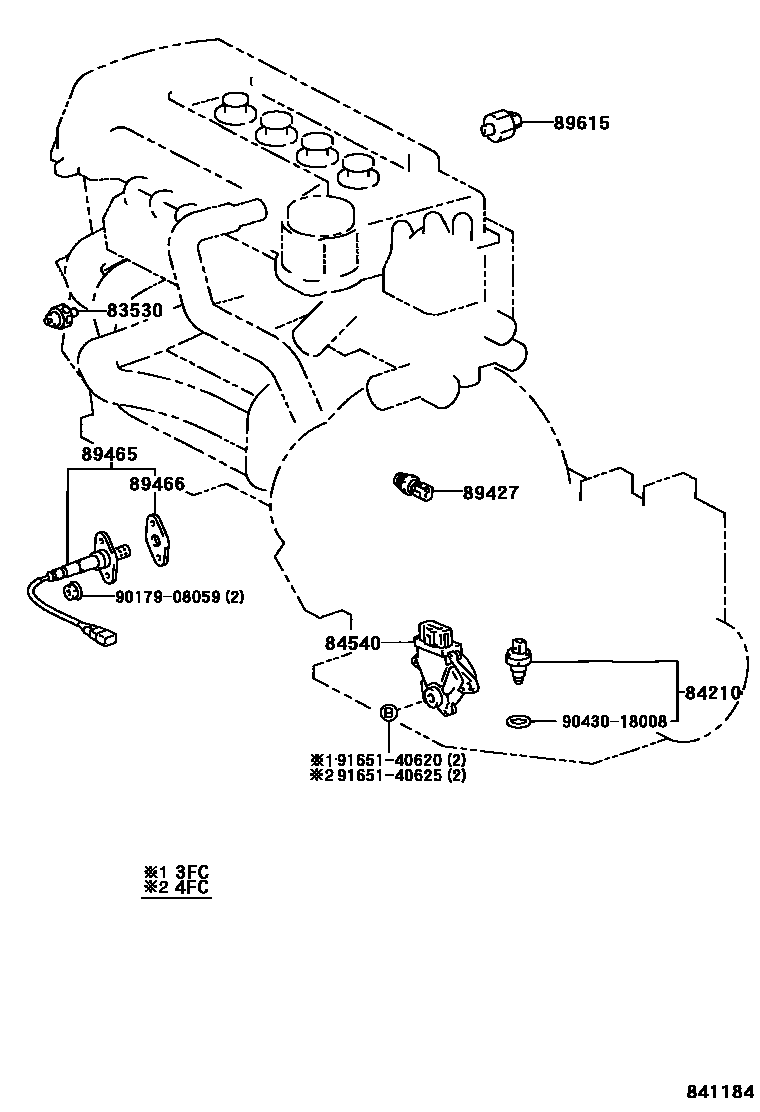

Toyota COROLLA NAP/SED — SWITCH & RELAY & COMPUTER

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-30090i199708-199803

main83530-60020i199803

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040i199708

84540SWITCH ASSY, NEUTRAL START

main84540-12200i199708-199908

TOKAIRIKA

main84540-12210i199708-199908

MATSUSHITA

main84540-12230i199908-200005

TOKAIRIKA

main84540-16050i199708-199908

main84540-32110i199908-200005

MATSUSHITA

main84540-52010i199908

89427SWITCH, TEMPERATURE DETECT

main89428-12160i199708-199908

89465SENSOR, OXYGEN

main89465-02030i199809

REAR

main89465-09200i199809

FRONT

main89465-12510i199708-199809

REAR

main89465-19715i199708-199806

FRONT

main89465-49125i199806-199809

FRONT

89466GASKET, OXYGEN SENSOR

main89466-12020i199708

89615SENSOR, KNOCK CONTROL

main89615-12120i199708

9017908059

main90179-08059

9043018008

main90430-18008

9165140620

main91651-40620

9165140625

main91651-40625

11 parts on this diagram · 6 diagrams in section

SWITCH & RELAY & COMPUTER for Toyota COROLLA NAP/SED

This section contains 108 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COROLLA NAP/SED. Key components include: RELAY ASSY, STARTER, SHIFT LEVER & RETAINER, ARMREST & VISOR, FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP.
