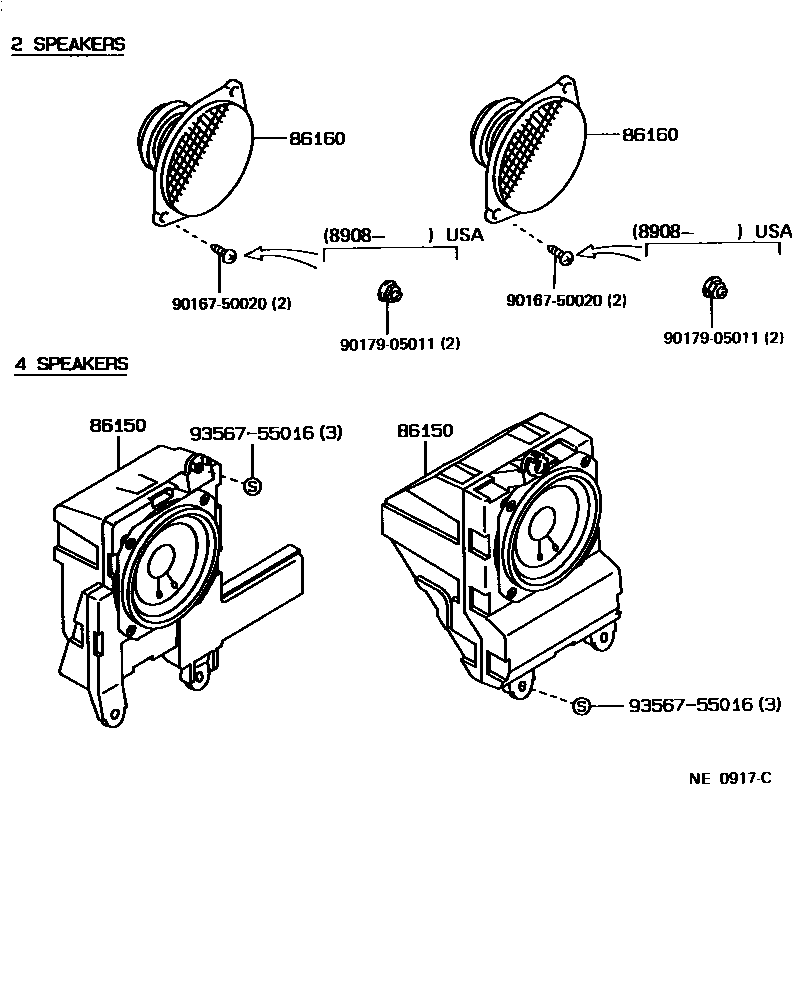

Toyota COROLLA NAP/SED — SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-02010i198809-199209

main86150-02020i198809-199209

main86150-02030i198909-199209

main86150-02040i198909-199209

86160SPEAKER ASSY, FRONT NO.1

main86160-02040×2i198809-199209

9016750020

main90167-50020

9017905011

main90179-05011

9356755016

main93567-55016

5 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota COROLLA NAP/SED

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA NAP/SED. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR.
