Toyota COROLLA NAP/SED — HEATING & AIR CONDITIONING - WATER PIPING

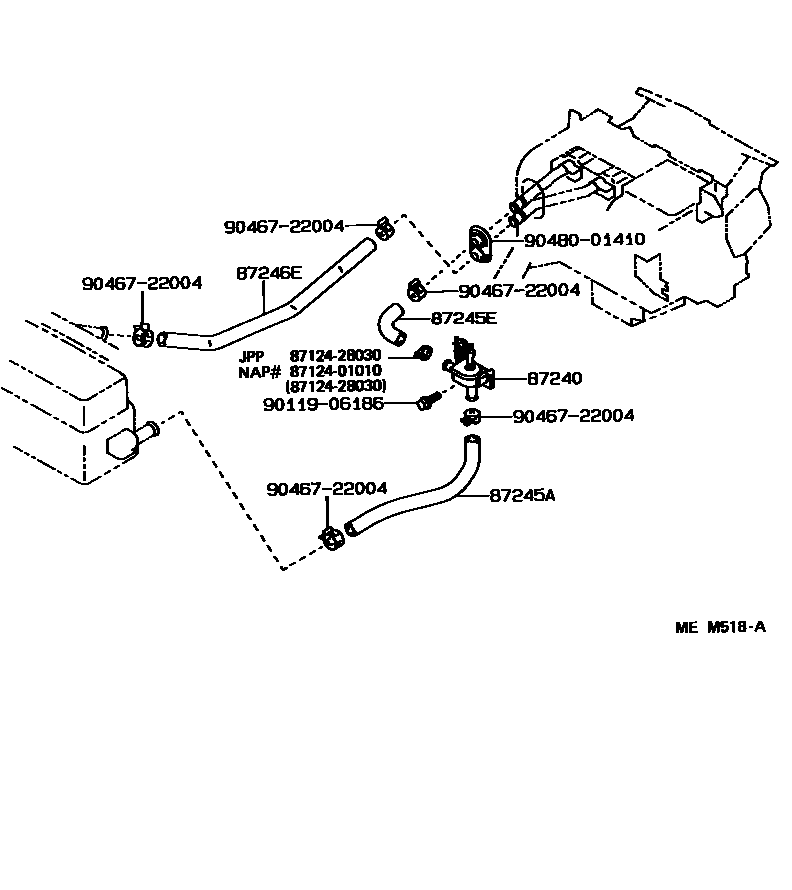

Parts diagram

87240VALVE ASSY, HEATER WATER

main87240-01020i198809-199209

87245AHOSE, HEATER WATER, INLET A

main87245-01070i198809-199209

87245EHOSE, HEATER WATER, INLET E

main87245-01040i198809-199209

87246EHOSE, HEATER WATER, OUTLET E

main87245-01080i198809-199106

main87245-01081i199106-199209

8712401010CLAMP, HEATER

main87124-01010

8712428030CLAMP, HEATER

main87124-28030

9011906186

main90119-06186

9046722004

main90467-22004

9048001410

main90480-01410

9 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota COROLLA NAP/SED

This section contains 9 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota COROLLA NAP/SED. Key components include: VALVE ASSY, HEATER WATER, HOSE, HEATER WATER, INLET A, HOSE, HEATER WATER, INLET E, HOSE, HEATER WATER, OUTLET E, CLAMP, HEATER.
