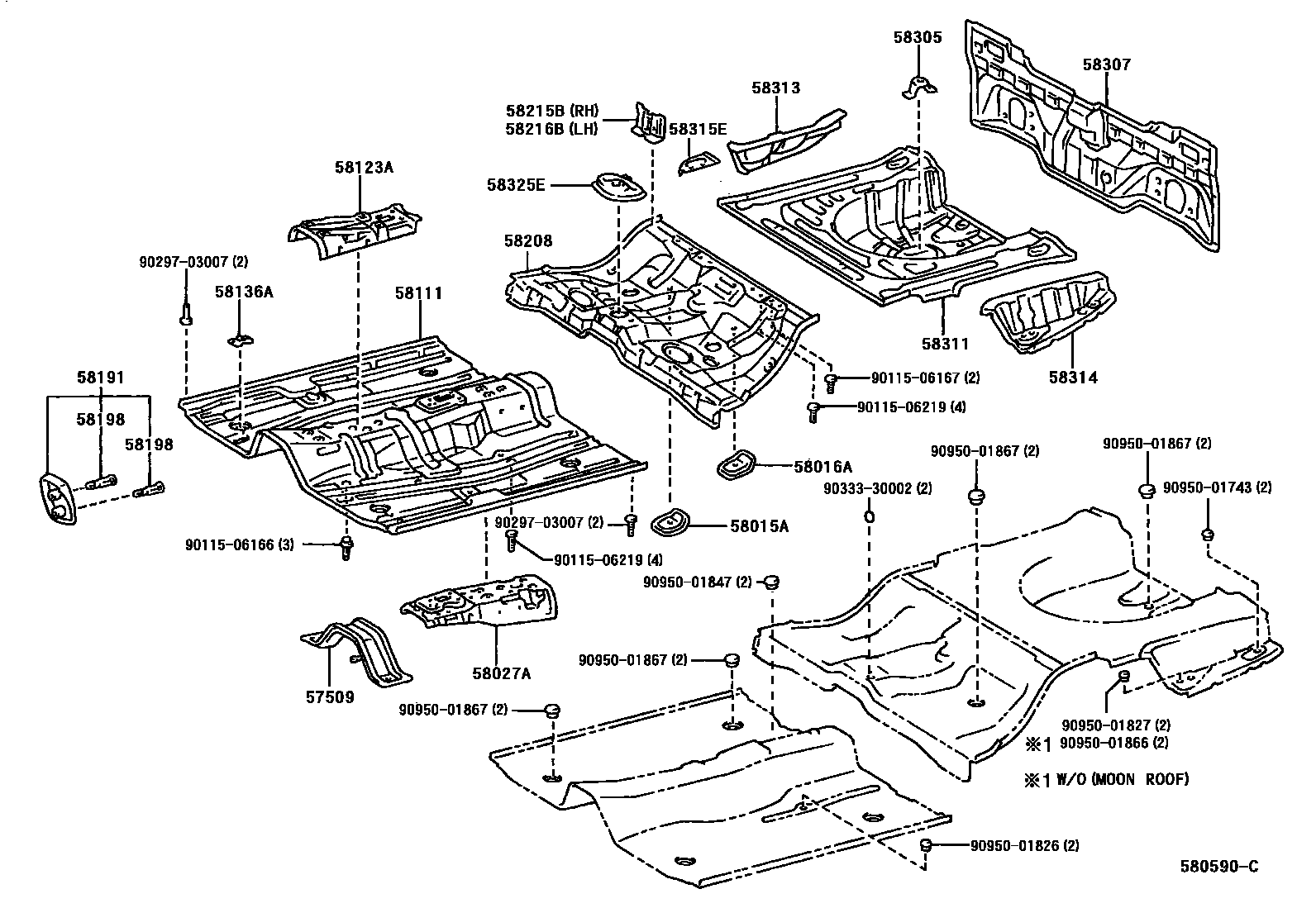

Toyota COROLLA NAP/SED — FLOOR PAN & LOWER BACK PANEL
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR
58111PAN, FRONT FLOOR
58136ACOVER, FRONT FLOOR SERVICE HOLE
L=60
L=65
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58208PAN, CENTER FLOOR
W(FIXED SEAT)
W(FOLDING REAR SEAT)
58215BBRACKET, REAR SEAT MOUNTING, RH
W(CHILD SEAT),(L)
W(CHILD SEAT),(J)
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
TEMPORARY USE = SPARE TIRE
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH
(L)
(J)
58325ECOVER, REAR FLOOR SERVICE HOLE
9011506166
main90115-06166
9011506167
main90115-06167
9011506219
main90115-06219
9029703007
main90297-03007
9033330002
main90333-30002
9095001743
main90950-01743
9095001826
main90950-01826
9095001827
main90950-01827
9095001847
main90950-01847
9095001866
main90950-01866
9095001867
main90950-01867
30 parts on this diagram · 1 diagram in section
FLOOR PAN & LOWER BACK PANEL for Toyota COROLLA NAP/SED
This section contains 30 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota COROLLA NAP/SED. Key components include: REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER, REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH, REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH, REINFORCE SUB-ASSY, SEAT BELT ANCHOR, PAN, FRONT FLOOR.
