Toyota COROLLA NAP/SED — CONSOLE BOX & BRACKET

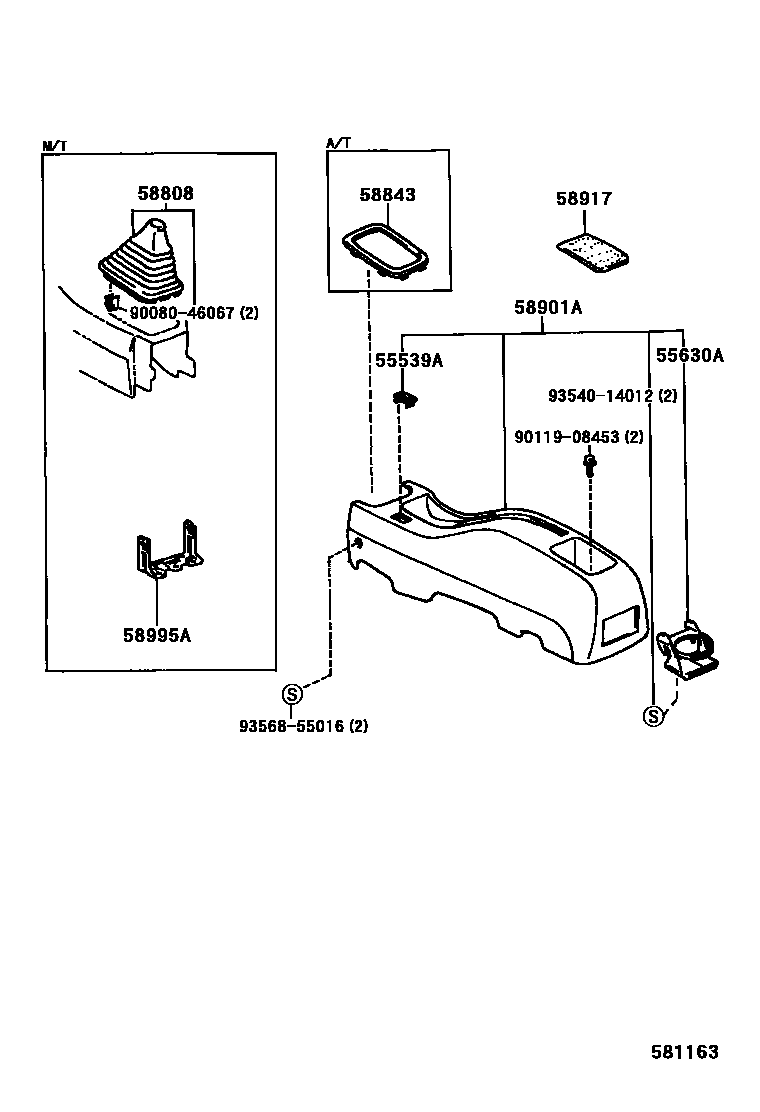

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-02010-B1i199708
MD.CHARCOAL,TRIM1#
main55539-02010-C0i200005
BLACK,TRIM2#
main55539-02010-E0i199708
MD.NEUTRAL BONE,TRIM4#
55630AHOLDER, REAR CONSOLE BOX, CUP
main55630-02010-B1i199708
MD.CHARCOAL,TRIM1#
main55630-02010-C0i200005
BLACK,TRIM2#
main55630-02010-E0i199708
MD.NEUTRAL BONE,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-02021-B2i199708
MD.CHARCOAL,TRIM1#
main58808-02021-E2i199708
MD.NEUTRAL BONE,TRIM4#
main58808-12200-C0i200005
BLACK,TRIM2#
58843BEZEL, SHIFTING HOLE
main58843-02020-B1i199708
MD.CHARCOAL,TRIM1#
main58843-02020-C0i200005
BLACK,TRIM2#
main58843-02020-E0i199708
MD.NEUTRAL BONE,TRIM4#
58901ABOX SUB-ASSY, CONSOLE, REAR
main58901-02010-B1i199708
MD.CHARCOAL,TRIM1#
main58901-02010-C0i200005
BLACK,TRIM2#
main58901-02010-E0i199708
MD.NEUTRAL BONE,TRIM4#
main58901-02030-B1i199708
W(CONSOLE BOX DOOR),MD.CHARCOAL,TRIM1#
main58901-02030-C0i200005
W(CONSOLE BOX DOOR),BLACK,TRIM2#
main58901-02030-E0i199708
MD.NEUTRAL BONE,TRIM4#
main58901-02040-B0i200005
MD.CHARCOAL,TRIM1#
main58901-02040-C0i200005
W(CONSOLE BOX DOOR),BLACK,TRIM2#
main58901-02040-E0i200005
MD.NEUTRAL BONE,TRIM4#
58917MAT, BOX BOTTOM, NO.2
main58917-02010i199708
main58917-02020i199708-200005
main58917-02030i200005
W(CONSOLE BOX DOOR)
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
main58995-01040i199708
9008046067
main90080-46067
9011908453
main90119-08453
9354014012
main93540-14012
9356855016
main93568-55016

11 parts on this diagram · 2 diagrams in section

CONSOLE BOX & BRACKET for Toyota COROLLA NAP/SED

This section contains 18 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA NAP/SED. Key components include: COVER, SPARE SWITCH HOLE, HOLDER SUB-ASSY, CONSOLE BOX CUP, HOLDER, REAR CONSOLE BOX, CUP, COVER SUB-ASSY, SHIFTING HOLE, BEZEL, SHIFTING HOLE.
