Toyota COROLLA NAP/SED — AIR BAG

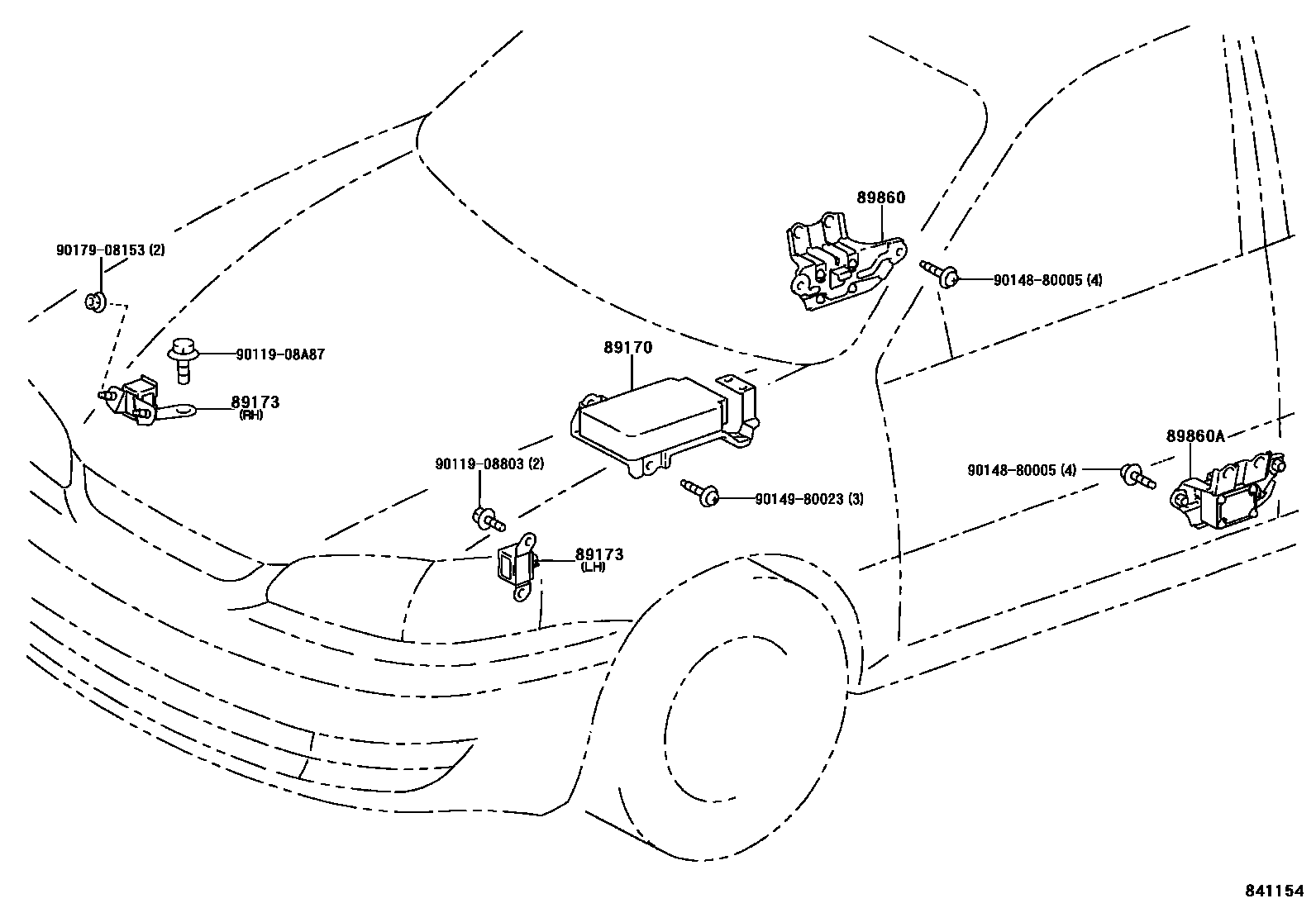

Parts diagram

89170SENSOR ASSY, AIRBAG

main89170-02050i199708-199908

main89170-02051i199908-200005

main89170-02060i199708-199908

W(*80, SIDE)

main89170-02061i199908-200005

W(*80, SIDE)

main89170-02140i200005

main89170-02150i200005

W(*80, SIDE)

89173SENSOR, AIRBAG, FRONT

main89173-19095i199708

RH

main89173-19105i199708

LH

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-12010i199708-199908

main89860-12011i199908

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-12010i199708-199908

main89830-12011i199908

9011908803

main90119-08803

9011908A87

main90119-08A87

9014880005

main90148-80005

9014980023

main90149-80023

9017908153

main90179-08153

9 parts on this diagram · 1 diagram in section

AIR BAG for Toyota COROLLA NAP/SED

This section contains 9 genuine Toyota parts for the AIR BAG system of the Toyota COROLLA NAP/SED. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT, SENSOR ASSY, SIDE AIRBAG, RH, SENSOR ASSY, SIDE AIRBAG, LH.
