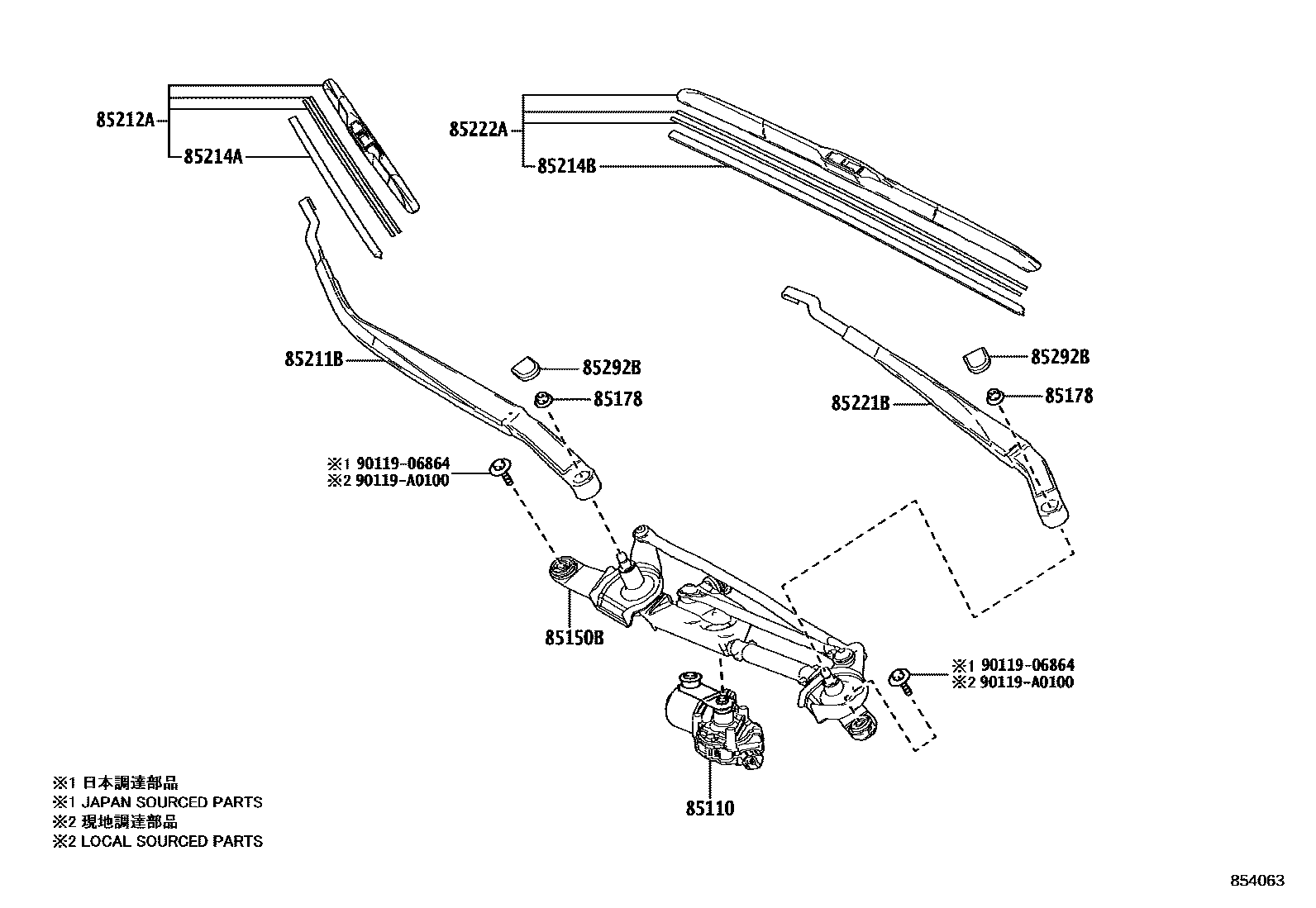

Toyota COROLLA (MEXICO) — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02440i201903-202007

85150BLINK ASSY, WIPER

main85150-02420i202007-202106

main85150-02421i202211-202410

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2i201903-202007

(J)

main90182-A0017×2i202007-202211

(L)

85211BARM, FRONT WIPER, RH

main85211-02390i202007-202106

85212ABLADE, FR WIPER, RH

main85212-52220i202007-202106

85214ARUBBER, WIPER, RH

main85214-68030i202410

85214BRUBBER, WIPER, LH

main85214-28080i202410

85221BARM, FRONT WIPER, LH

main85221-02540i202007-202106

main85221-02541i202211-202410

85222ABLADE, FR WIPER, LH

main85222-12A90i201903-202007

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010×2i202410

9011906864

main90119-06864

90119A0100

main90119-A0100

12 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota COROLLA (MEXICO)

This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA (MEXICO). Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
