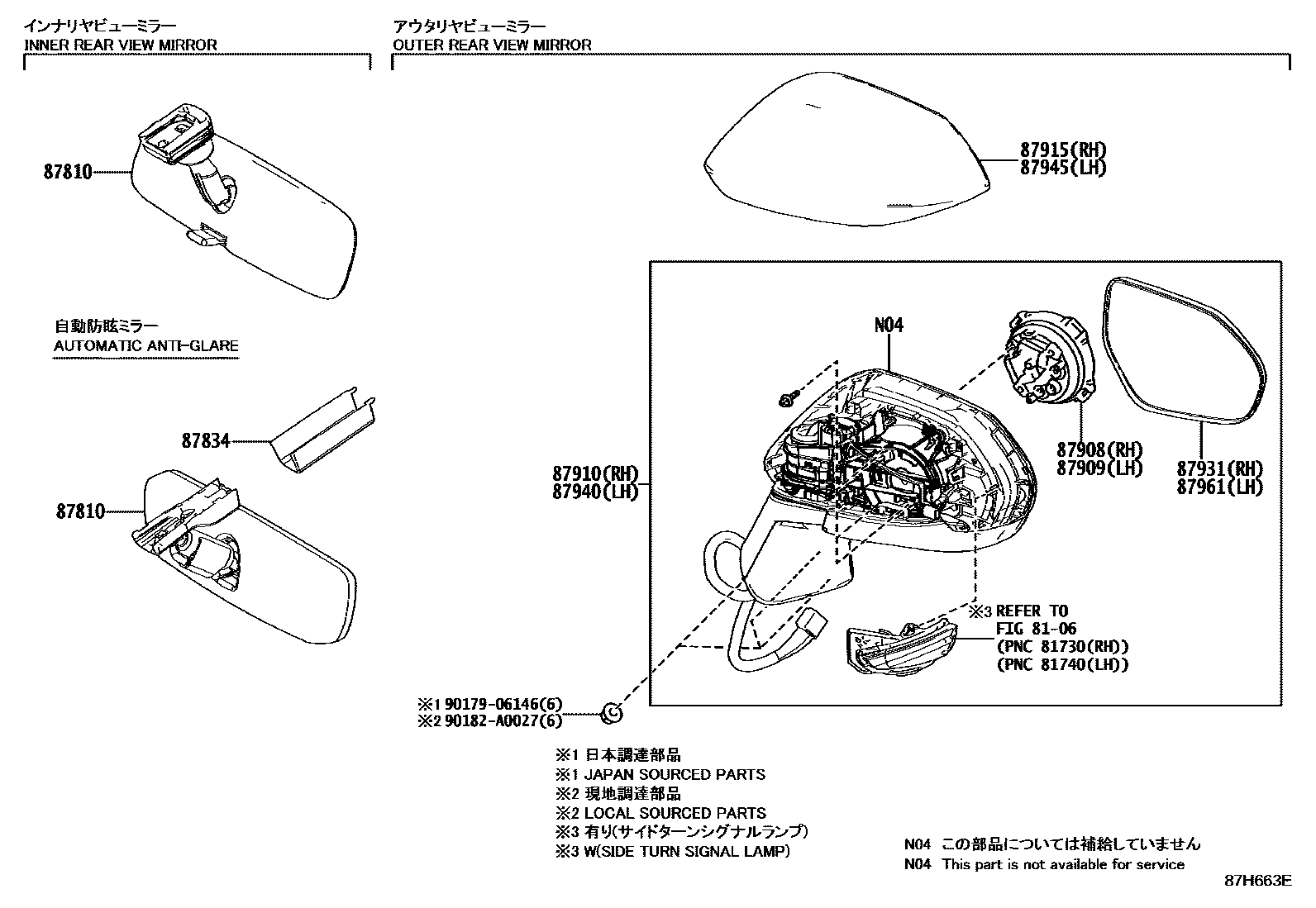

Toyota COROLLA (MEXICO) — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
87810MIRROR ASSY, INNER REAR VIEW
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & *MIH & *BSM&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
SUPER WHITE 2,040; SUPER WHITE 2,040 ,2UE
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7; SILVER ME.,1F7 ,2UF
CELESTITE GRAY ME.,1K3; CELESTITE GRAY ME.,1K3 ,2YC
DK.GRAY,1L7; DK.GRAY,1L7 ,2YE
BLACK MC.,209
ATTITUDE BLACK MC.,218
RED M.M.,2NU ,3R3
RED MC.,2PN ,3T3; RED MC.,3T3
DK.BLUE M.M.,2TT ,8W7
DK. BLUE MC.,2RA ,8X8; DK. BLUE MC.,8X8
87931OUTER MIRROR, RH
OUTSIDE REAR VIEW MIRROR-*162 & *MIH & *BSM&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
OUTSIDE REAR VIEW MIRROR-*162 & *MIH & *BSM&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
87940MIRROR ASSY, OUTER REAR VIEW, LH
OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*RCM & *MIH
NO PAINT REQ.; NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-*162 & *MIH & *BSM&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
SUPER WHITE 2,040; SUPER WHITE 2,040 ,2UE
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PU
SILVER ME.,1F7; SILVER ME.,1F7 ,2UF
CELESTITE GRAY ME.,1K3; CELESTITE GRAY ME.,1K3 ,2YC
DK.GRAY,1L7; DK.GRAY,1L7 ,2YE
BLACK MC.,209
ATTITUDE BLACK MC.,218
RED M.M.,2NU ,3R3
RED MC.,2YD ,3T3; RED MC.,3T3
DK.BLUE M.M.,8W7
DK. BLUE MC.,2RA ,8X8; DK. BLUE MC.,8X8
87961MIRROR OUTER, LH
OUTSIDE REAR VIEW MIRROR-*162 & *MIH & *BSM&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
OUTSIDE REAR VIEW MIRROR-*162 & *MIH & *BSM&REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)
9017906146
main90179-06146
90182A0027
main90182-A0027
13 parts on this diagram · 2 diagrams in section
MIRROR for Toyota COROLLA (MEXICO)
This section contains 14 genuine Toyota parts for the MIRROR system of the Toyota COROLLA (MEXICO). Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, MIRROR ASSY, INNER REAR VIEW, COVER, INNER REAR VIEW MIRROR STAY HOLDER, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
