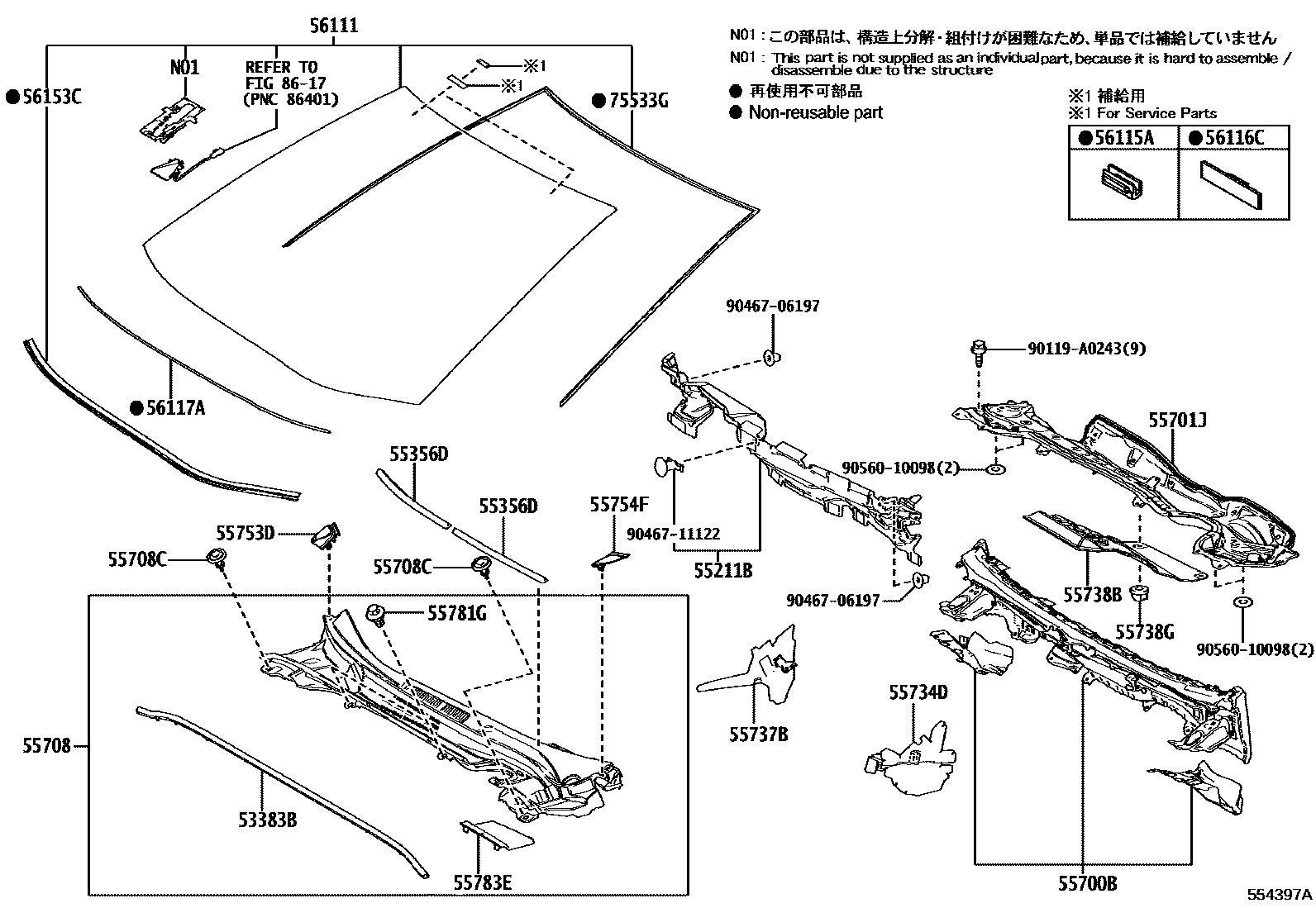

Toyota COROLLA (MEXICO) — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-02210i202410

55211BSILENCER, FRONT PANEL

main55211-02200i202410

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-02510×2i202410

55700BCOWL ASSY

main55700-02620i202410

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02520i201903-202007

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02730i202007-202106

main55708-02C10i202211-202410

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2i202007-202106

55734DPLATE, WATER GUARD

main55734-02170i202410

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02220i202007-202211

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-02060i201903-202007

55738GCLIP, FRONT PANEL COVER PROTECTOR

main90467-06206-C0×5i201903-202001

BLACK

main90467-A0043×5i202001-202007

(L)

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-02140i201903-202007

main55753-02270i202410

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-02150i202007-202106

main55754-02280i202211-202410

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07224×2i201903-202007

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-02280i201903-202007

56111GLASS, WINDSHIELD

main56101-02N00i201903-202007

main56101-0ZA60i202211-202410

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main56101-0ZA70i202410

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i201903-202007

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i202007-202211

56117ADAM, WINDOW GLASS ADHESIVE

main56117-06190i202007-202211

L=1298

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-02010i201903-202007

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-02210i202410

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

90119A0243

main90119-A0243

9046706197

main90467-06197

9046711122

main90467-11122

9056010098

main90560-10098

26 parts on this diagram · 2 diagrams in section

COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA (MEXICO)

This section contains 27 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA (MEXICO). Key components include: SEAL, HOOD TO COWL TOP, SILENCER, FRONT PANEL, CUSHION, INSTRUMENT PANEL, NO.2, COWL ASSY, PANEL SUB-ASSY, COWL TOP, OUTER.
