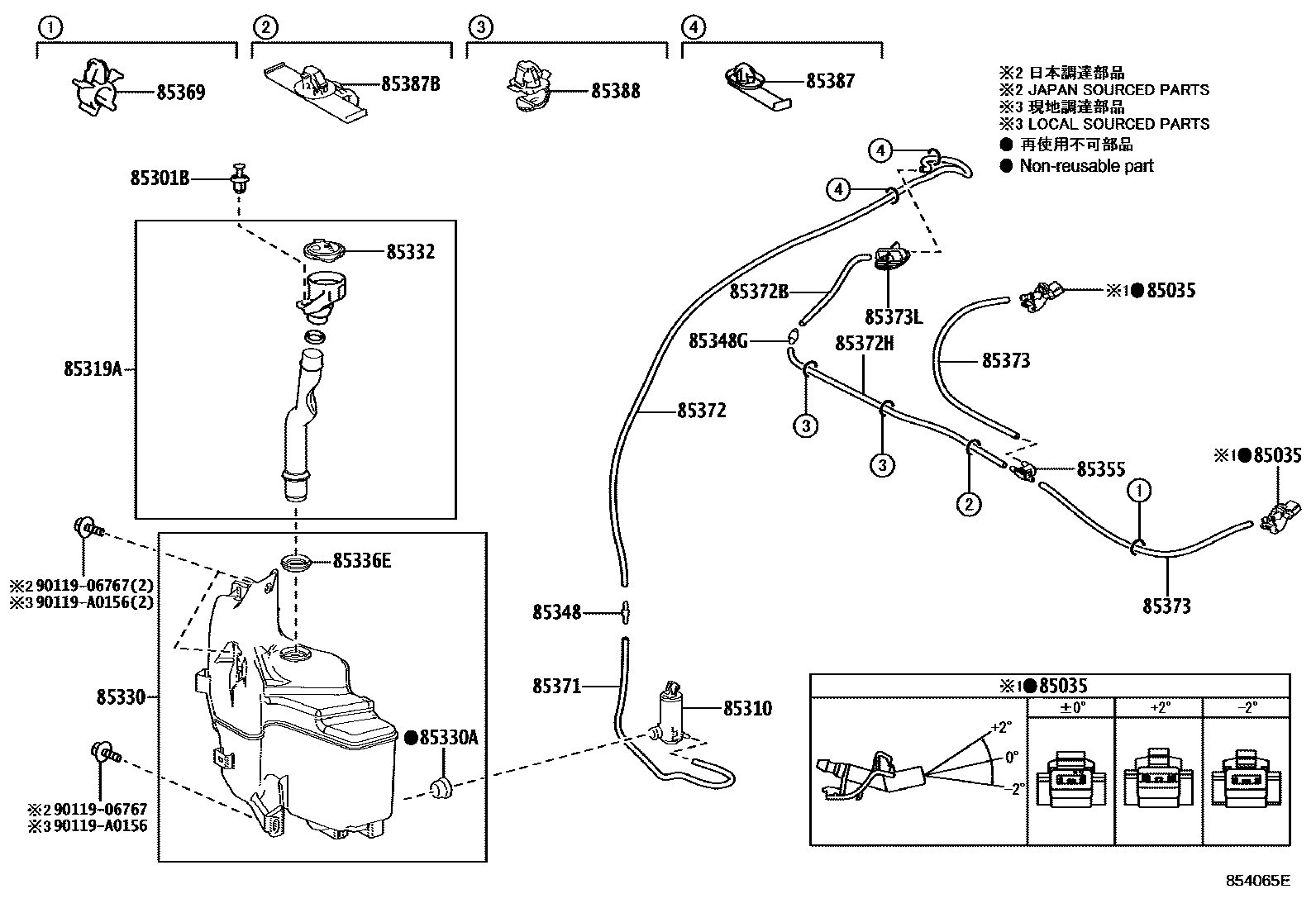

Toyota COROLLA (MEXICO) — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12360×2i202007-202211

ANGLE 0

main85381-12440×2i202410

ANGLE +2

main85381-33080×2i202410

ANGLE -2

85301BCLIP, WASHER

main90467-07214i202410

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-04011i202410

85319AHOSE, INLET

main85301-02160i202007-202106

85330JAR ASSY, WINDSHIELD WASHER

main85315-02690i202410

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i202410

85332CAP, WINDSHIELD WASHER JAR

main85386-60050i202410

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160i202410

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i202410

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-02300i202007-202106

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i202410

85369CLAMP

main90469-07011i202410

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080i202410

L=1450(*H,L=500)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33344i202410

L=1090

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33095i202410

L=280

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90068-33068i202410

L=510

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33359×2i202410

L=465

85373LGROMMET, WASHER

main85373-12050i202410

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090×2i202410

85387BCLAMP, WASHER, NO.3

main82711-35750i202410

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-12040×2i202410

9011906767

main90119-06767

90119A0156

main90119-A0156

23 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota COROLLA (MEXICO)

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA (MEXICO). Key components include: NOZZLE SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET, JAR ASSY, WINDSHIELD WASHER.
