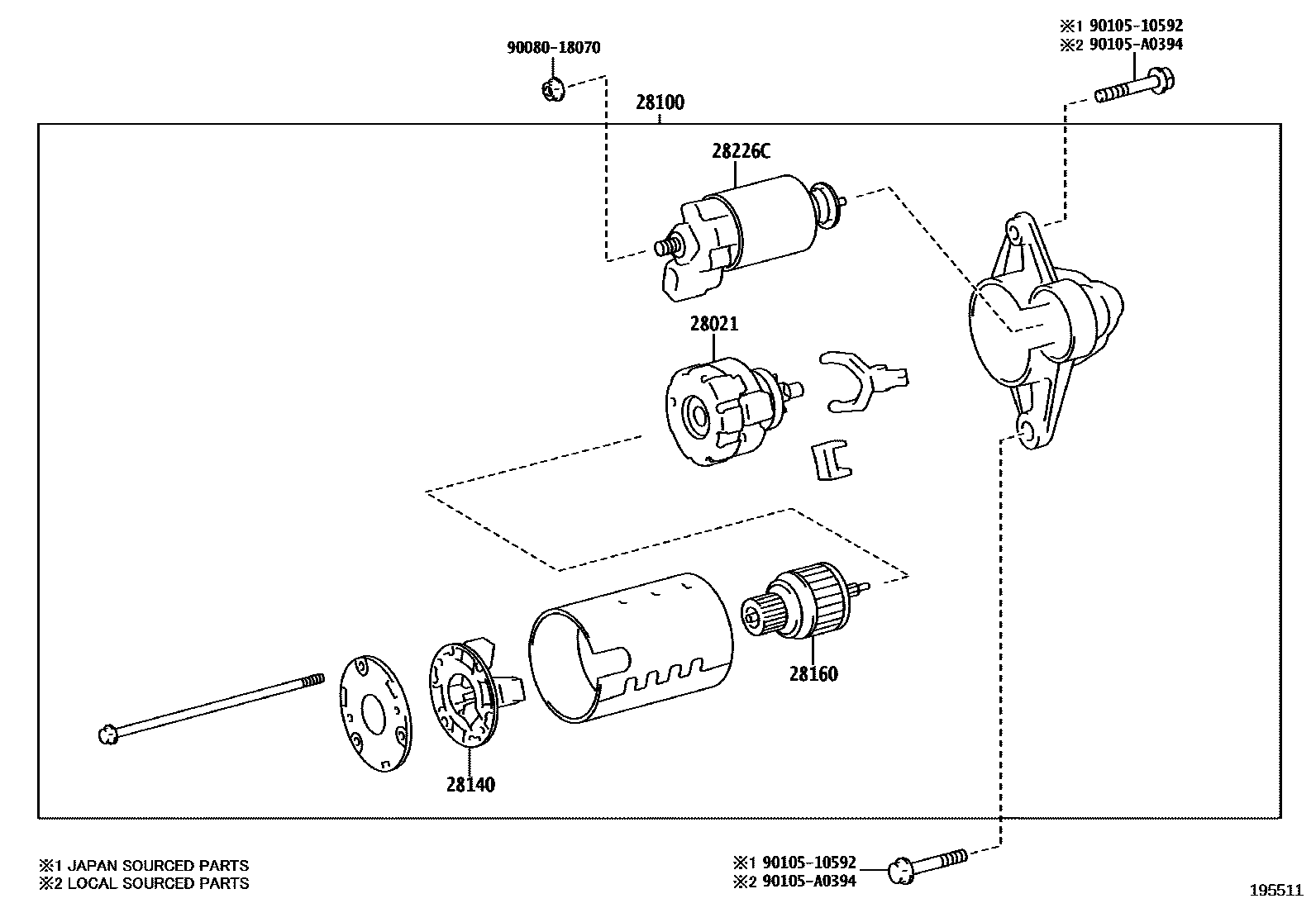

Toyota COROLLA (MEXICO) — STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
28100STARTER ASSY
12V 1.2KW
12V 1.2KW
28140HOLDER ASSY, STARTER BRUSH
28160ARMATURE ASSY, STARTER
28226CSTARTER KIT, REPAIR SERVICE, NO.2
9008018070
main90080-18070
9010510592
main90105-10592
90105A0394
main90105-A0394
8 parts on this diagram · 2 diagrams in section
STARTER for Toyota COROLLA (MEXICO)
This section contains 12 genuine Toyota parts for the STARTER system of the Toyota COROLLA (MEXICO). Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOLDER ASSY, STARTER BRUSH, ARMATURE ASSY, STARTER, TERMINAL, STARTER.
