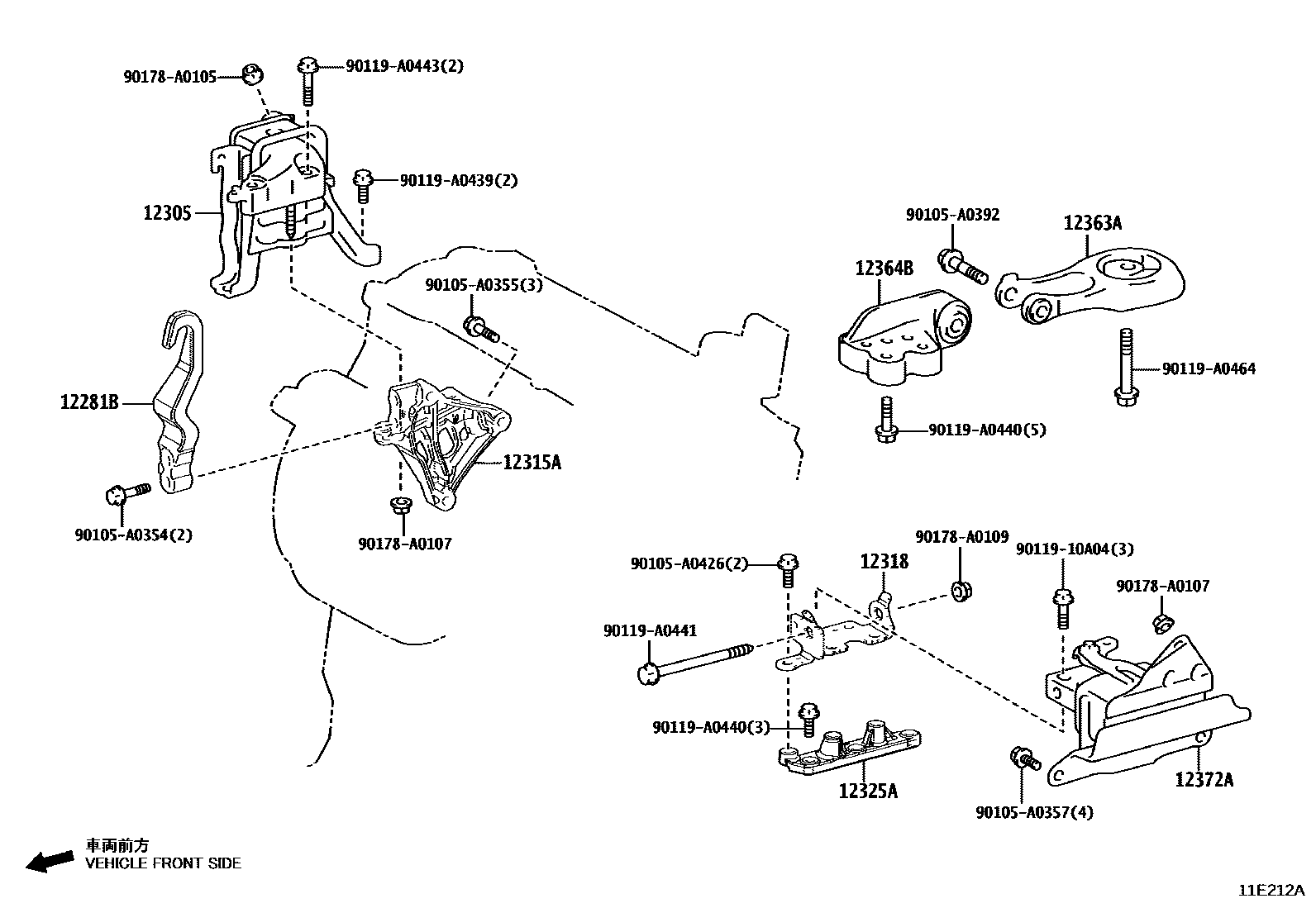

Toyota COROLLA (MEXICO) — MOUNTING
12281BHANGER, ENGINE, NO.1
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12318STAY, ENGINE MOUNTING, LH
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12363AROD, ENGINE MOVING CONTROL
12364BROD, ENGINE MOVING CONTROL, NO.2
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
90105A0354
main90105-A0354
90105A0355
main90105-A0355
90105A0357
main90105-A0357
90105A0392
main90105-A0392
90105A0426
main90105-A0426
9011910A04
main90119-10A04
90119A0439
main90119-A0439
90119A0440
main90119-A0440
90119A0441
main90119-A0441
90119A0443
main90119-A0443
90119A0464
main90119-A0464
90178A0105
main90178-A0105
90178A0107
main90178-A0107
90178A0109
main90178-A0109
22 parts on this diagram · 5 diagrams in section
MOUNTING for Toyota COROLLA (MEXICO)
This section contains 38 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA (MEXICO). Key components include: HANGER, ENGINE, NO.1, BRACKET SUB-ASSY, ENGINE MOUNTING, LH, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), STAY, ENGINE MOUNTING, LH.
