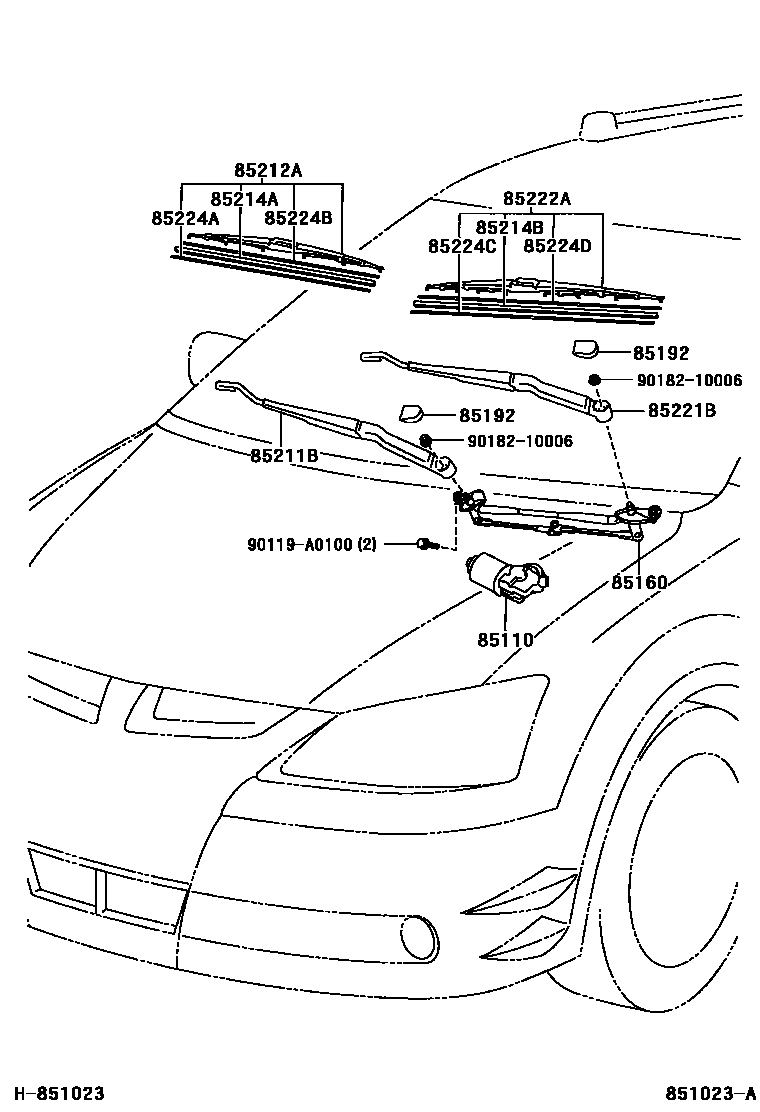

Toyota COROLLA/MATRIX (NAP) — WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
main85150-02090iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
85192COVER, WINDSHIELD WIPER ARM
main85292-AA010×2iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,133,134..NAP200305-200405
85211BARM, FRONT WIPER, RH
85212ABLADE, FR WIPER, RH
main85212-02120iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,133,134..NAP200305-200405
85214ARUBBER, WIPER, RH
main85214-02140iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,133,134..NAP200305-200405
85214BRUBBER, WIPER, LH
main85214-02150iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
85221BARM, FRONT WIPER, LH
main85221-02130iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
85222ABLADE, FR WIPER, LH
main85222-02130iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
main85224-08010iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,133,134..NAP200305-200405
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
90119A0100
main90119-A0100
9018210006
main90182-10006
15 parts on this diagram · 1 diagram in section
WINDSHIELD WIPER for Toyota COROLLA/MATRIX (NAP)
This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota COROLLA/MATRIX (NAP). Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
