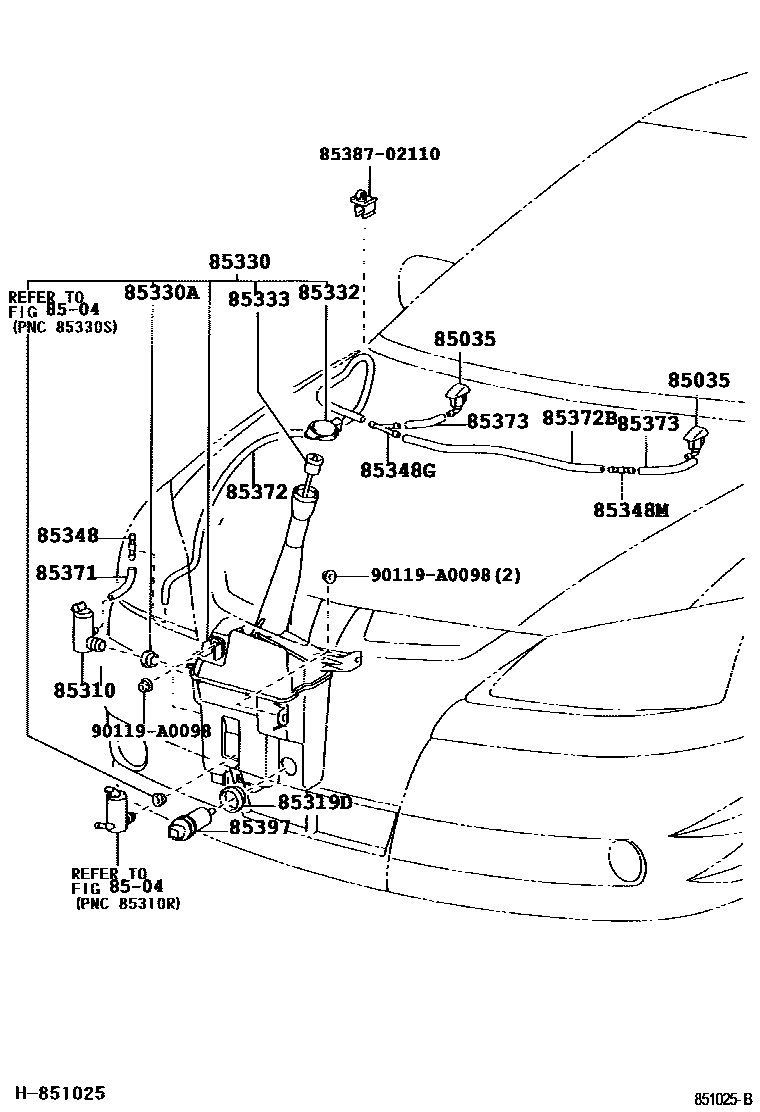

Toyota COROLLA/MATRIX (NAP) — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8504REAR WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319DPACKING, FRONT WASHER
85330JAR ASSY, WINDSHIELD WASHER
W(REAR WASHER)
W(REAR WASHER)
W(REAR WASHER)
W(REAR WASHER)
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85348MJOINT, WINDSHIELD WASHER HOSE, NO.3
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
L=50
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=1640
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
L=500
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=120
L=80
85397SWITCH ASSY,LEVEL WARNING
8538702110CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-02110
90119A0098
main90119-A0098
18 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota COROLLA/MATRIX (NAP)
This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota COROLLA/MATRIX (NAP). Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, PACKING, FRONT WASHER, JAR ASSY, WINDSHIELD WASHER.
