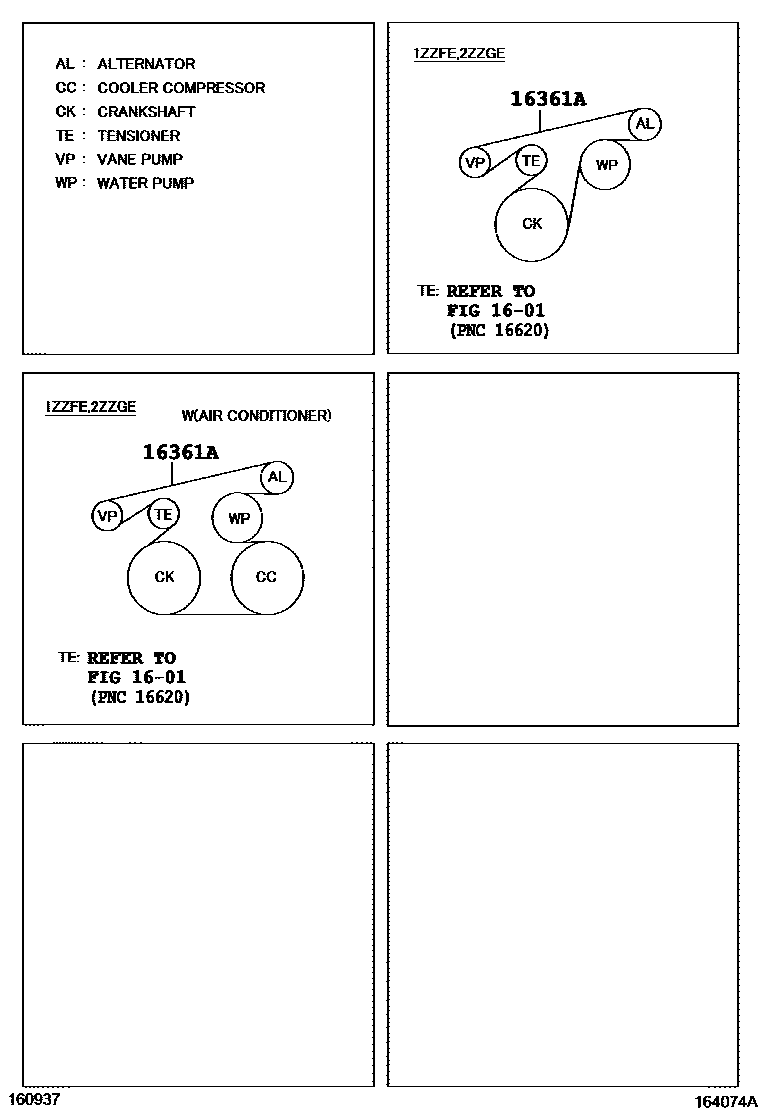

Toyota COROLLA/MATRIX (NAP) — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91134i200405

main90080-91139i200405

W(AIR CONDITIONER)

main90916-02474i200201-200404

main90916-02547i200201-200405

W(AIR CONDITIONER (DEALER OPTION))

main90916-A2007i200405-200607

W(AIR CONDITIONER)

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA/MATRIX (NAP)

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota COROLLA/MATRIX (NAP). Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
