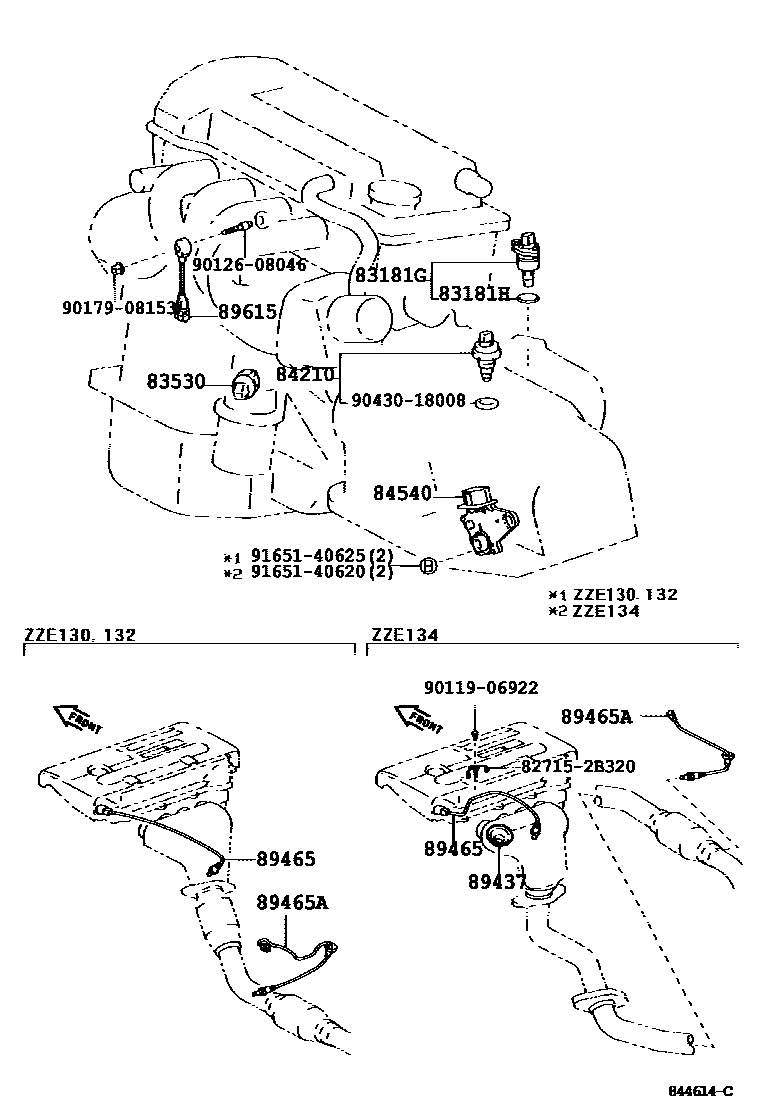

Toyota COROLLA/MATRIX (NAP) — SWITCH & RELAY & COMPUTER
83181GSENSOR, SPEEDOMETER
83181HRING, O (FOR SPEEDOMETER SENSOR)
main96711-24030iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132..NAP200201-200405
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
main83530-28020iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,134..NAP;ZZE133..NAP..6F200201-200405
DENSO
YAZAKI
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
89437COVER, SENSOR
89465SENSOR, OXYGEN
PART NUMBER LABEL=89465-01100
PART NUMBER LABEL=89465-12740
main89465-13030iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132..NAP200201-200405
(L)
89465ASENSOR, OXYGEN NO.2
main89465-02110iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132..NAP200201-200405
89615SENSOR, KNOCK CONTROL
main89615-20090iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,133,134..NAP200201-200405
827152B320BRACKET,WIRING HARNESS CLAMP
main82715-2B320
9011906922
main90119-06922
9012608046
main90126-08046
9017908153
main90179-08153
9043018008
main90430-18008
9165140620
main91651-40620
9165140625
main91651-40625
16 parts on this diagram · 12 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota COROLLA/MATRIX (NAP)
This section contains 119 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota COROLLA/MATRIX (NAP). Key components include: RELAY, AIR PUMP, RELAY ASSY, STARTER, RELAY, IGNITION, NO.1, FLASHER ASSY, TURN SIGNAL, WIRING & CLAMP.
