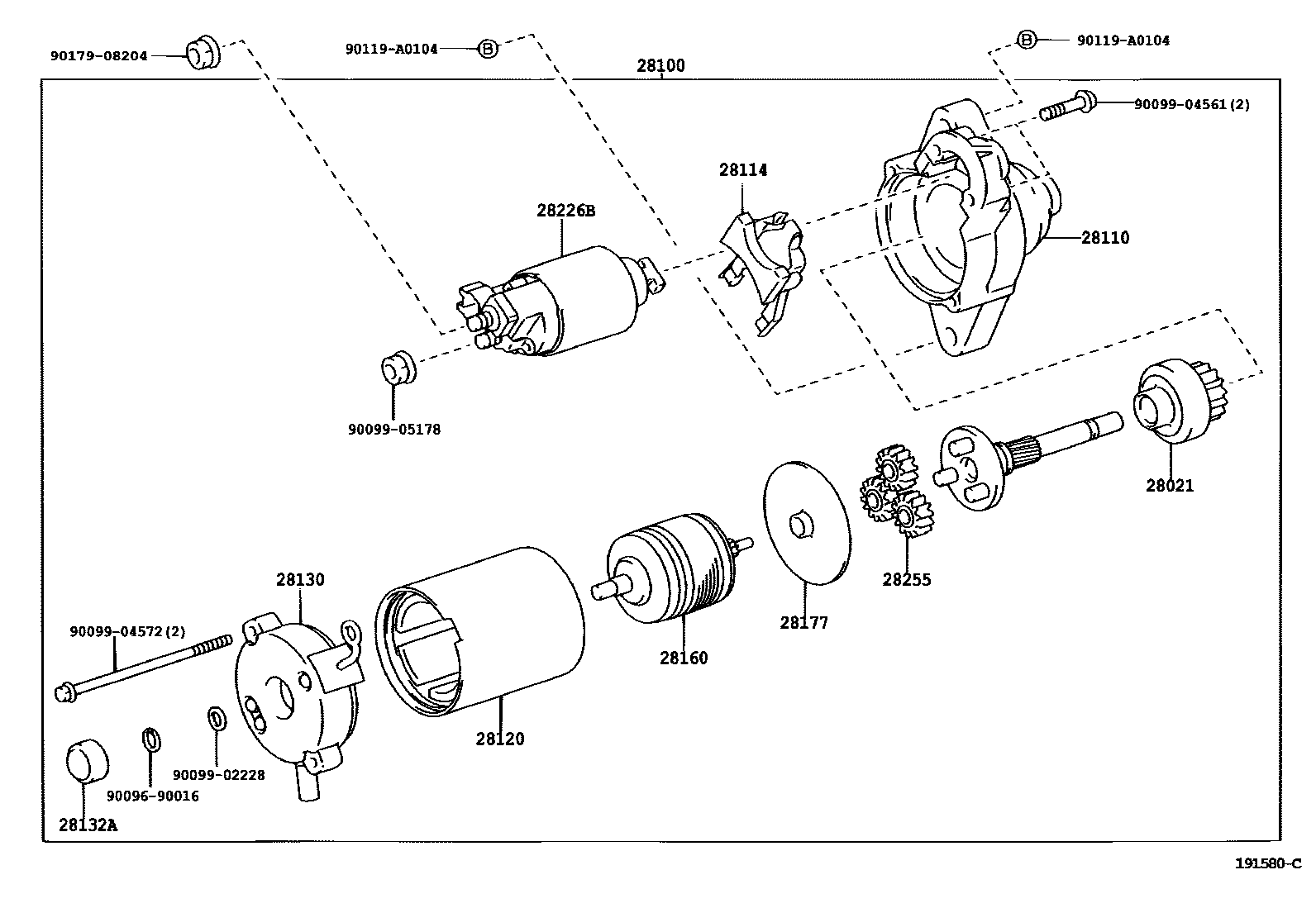

Toyota COROLLA/MATRIX (NAP) — STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
28100STARTER ASSY
12V 1.6KW
28110HOUSING ASSY, STARTER DRIVE
28114PIN, STARTER DRIVE LEVER SET
main28114-21060i1ZZFE,2ZZGE..ZZE132,133,134..NAP; 1ZZFE..ZZE130..NAP..4FC;1ZZFE..ZZE130..NAP..5F..USA;1ZZFE..ZZE130..NAP..5F..(CE,S)..CND; 1ZZFE..ZZE130..NAP..5F..LE..CND200201-200405
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28132ACOVER, STARTER COMMUTATOR END FRAME
28160ARMATURE ASSY, STARTER
28177PLATE(FOR STARTER ARMATURE)
28226BSTARTER KIT, REPAIR SERVICE
main28226-22061i1ZZFE,2ZZGE..ZZE132,133,134..NAP; 1ZZFE..ZZE130..4FC;1ZZFE..ZZE130..5F..USA;1ZZFE..ZZE130..5F..(CE,S)..CND; 1ZZFE..ZZE130..NAP..5F..LE..CND200305-200405
28255GEAR, PLANET
9009690016
main90096-90016
9009902228
main90099-02228
9009904561
main90099-04561
9009904572
main90099-04572
9009905178
main90099-05178
90119A0104
main90119-A0104
9017908204
main90179-08204
18 parts on this diagram · 1 diagram in section
STARTER for Toyota COROLLA/MATRIX (NAP)
This section contains 18 genuine Toyota parts for the STARTER system of the Toyota COROLLA/MATRIX (NAP). Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, PIN, STARTER DRIVE LEVER SET, YOKE ASSY, STARTER.
