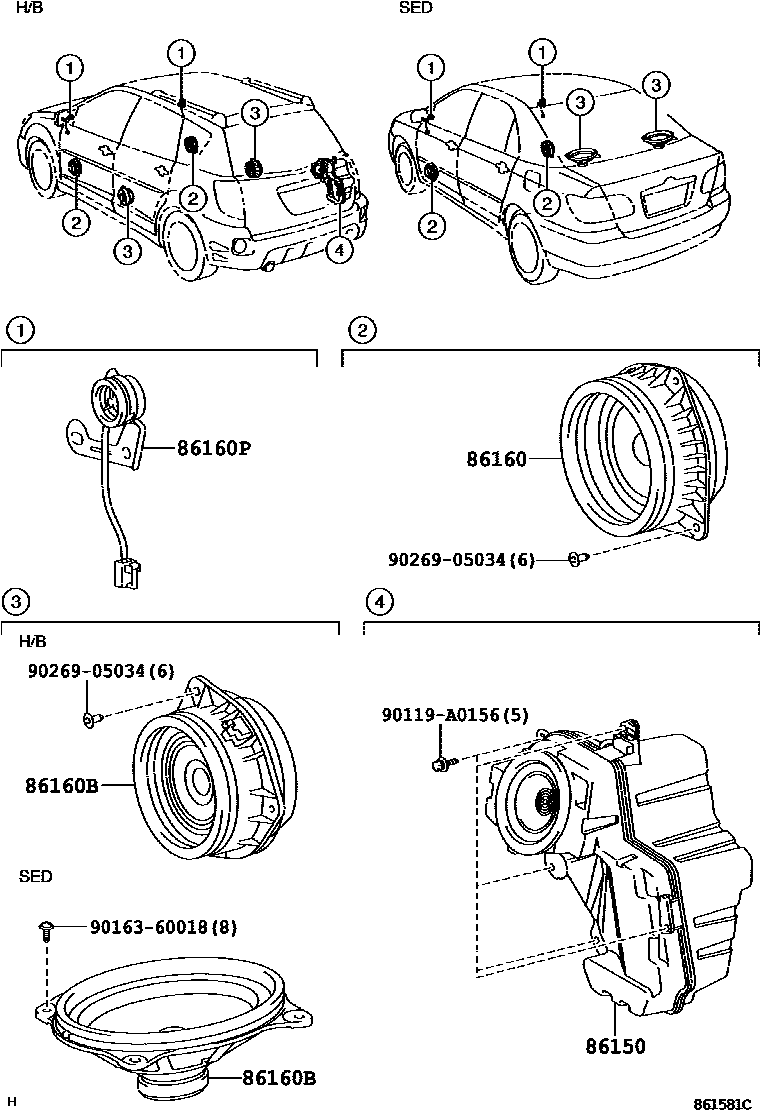

Toyota COROLLA/MATRIX (NAP) — SPEAKER
86150SPEAKER ASSY, W/BOX, NO.1
86160SPEAKER ASSY, FRONT NO.1
W(AM/FM CD CHANGER JBL PREMIUM SOUND SYSTEM 7SPEAKER); W(JBL AM/FM CD CHANGER 8SPEAKER)
86160BSPEAKER ASSY, REAR
main86160-02460×2iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
W(AM/FM CD CHANGER JBL PREMIUM SOUND SYSTEM 7SPEAKER)
W(JBL AM/FM CD CHANGER 8SPEAKER)
86160PSPEAKER ASSY, FRONT NO.2
RH
LH
W(JBL AM/FM CD CHANGER 8SPEAKER),RH
W(JBL AM/FM CD CHANGER 8SPEAKER),LH
main86160-02470iZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA; ZZE130..NAP..5F..LE..CND200201-200405
RH
LH
W(AM/FM CD CHANGER JBL PREMIUM SOUND SYSTEM 7SPEAKER),RH
W(AM/FM CD CHANGER JBL PREMIUM SOUND SYSTEM 7SPEAKER),LH
90119A0156
main90119-A0156
9016360018
main90163-60018
9026905034
main90269-05034
7 parts on this diagram · 1 diagram in section
SPEAKER for Toyota COROLLA/MATRIX (NAP)
This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota COROLLA/MATRIX (NAP). Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
