Toyota COROLLA/MATRIX (NAP) — SIDE MOULDING

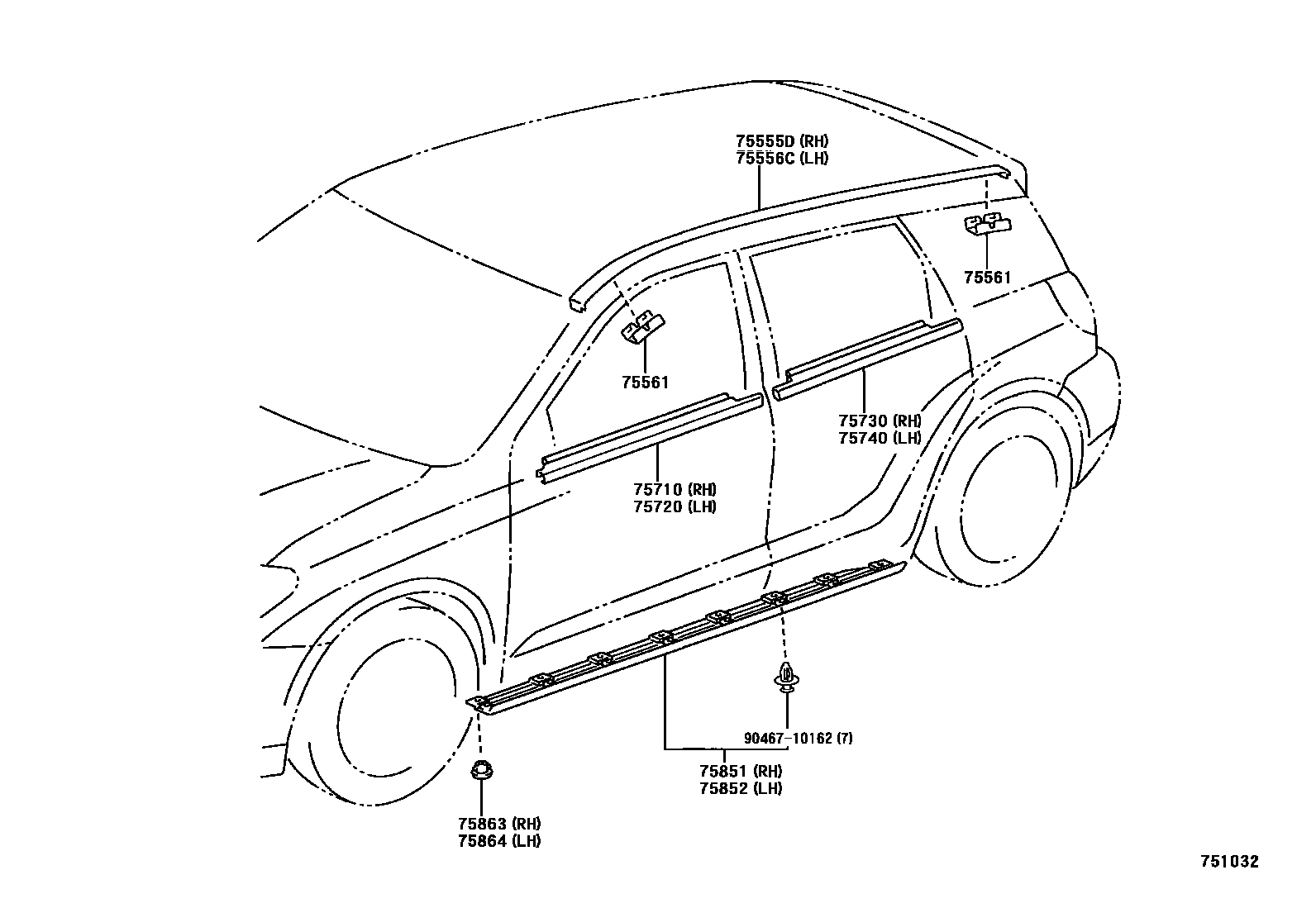

Parts diagram

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02030i200201-200405

main75555-02040i200405-200607

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02030i200201-200405

main75556-02040i200405

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-02020×4i200405-200607

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-01030i200201-200303

main75710-01031i200303-200405

main75710-02090i200201-200303

main75710-02091i200405

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-01030i200201-200303

main75720-01031i200303-200405

main75720-02090i200201-200303

main75720-02091i200405

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-01040i200201-200303

main75730-01041i200405

main75730-02080i200201-200303

main75730-02081i200405-200607

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-01040i200201-200303

main75740-01041i200405

main75740-02080i200201-200303

main75740-02081i200405-200607

75851MOULDING, ROCKER PANEL, RH

main75851-02040i200201-200405

75852MOULDING, ROCKER PANEL, LH

main75852-02040i200201-200405

75863PLATE, ROCKER PANEL SIDE, RH

main76924-02010×8i200405-200607

main76924-52021×8i200201-200311

75864PLATE, ROCKER PANEL SIDE, LH

main76924-02010×8i200405-200607

main76924-52021×8i200201-200405

9046710162

main90467-10162

12 parts on this diagram · 2 diagrams in section

SIDE MOULDING for Toyota COROLLA/MATRIX (NAP)

This section contains 19 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA/MATRIX (NAP). Key components include: COVER SUB-ASSY, FRONT PILLAR, UPR RH, COVER SUB-ASSY, FRONT PILLAR, UPR LH, RETAINER, FRONT PILLAR COVER, MOULDING, ROOF DRIP SIDE FINISH, CENTER RH, MOULDING, ROOF DRIP SIDE FINISH, CENTER LH.
