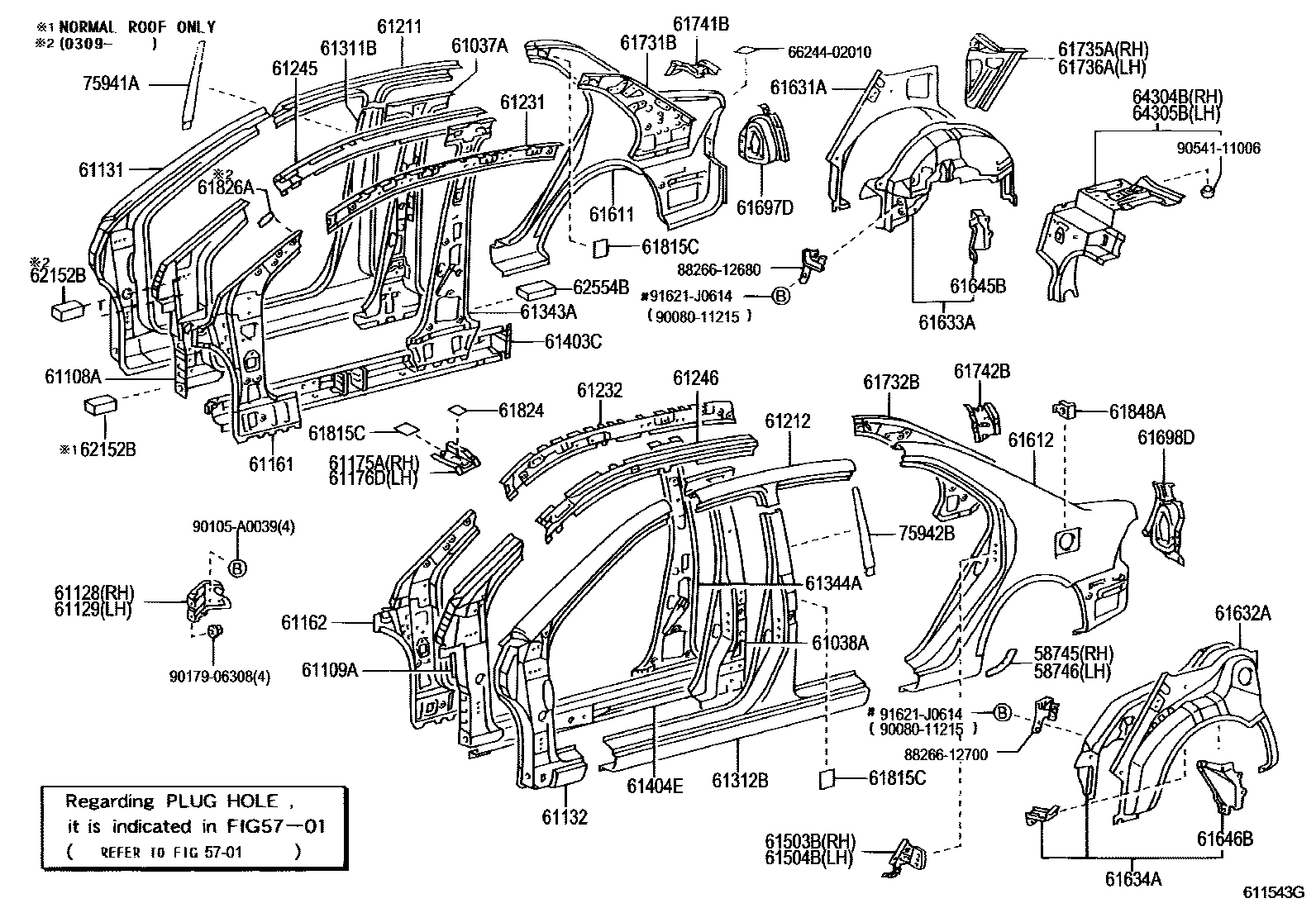

Toyota COROLLA/MATRIX (NAP) — SIDE MEMBER
5701HOLE PLUG
58745PROTECTOR, QUARTER PANEL, FRONT RH
58746PROTECTOR, QUARTER PANEL, FRONT LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61129REINFORCEMENT, COWL SIDE PANEL, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61311BPILLAR, CENTER BODY, OUTER RH
W(SIDE MUDGUARD)
61312BPILLAR, CENTER BODY, OUTER LH
W(SIDE MUDGUARD)
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W(ABS)
W(FIXED TYPE REAR SEAT)
W(SPLIT TYPE REAR SEAT)
W(ABS)
W(ABS)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
W(ABS)
W(ABS)
W(FIXED TYPE REAR SEAT)
W(SPLIT TYPE REAR SEAT)
W(ABS)
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61741BREINFORCEMENT, BACK WINDOW OPENING, RH
61742BREINFORCEMENT, BACK WINDOW OPENING, LH
61815CCOVER, ROOF SIDE, INNER UPPER
W/O(CURTAIN SHIELD AIR BAG & MOON ROOF)
61824PLATE, NOISE CONTROL, NO.1
61826APLATE, NOISE CONTROL, NO.3
61848ARETAINER, QUARTER PANEL, LH
62152BPAD, COWL SIDE SILENCER, NO.2
W(MOON ROOF)
62554BPAD, PILLAR, NO.4
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
64305BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH
75941ASTRIPE, CENTER PILLAR, RH
75942BSTRIPE, CENTER PILLAR, LH
6624402010PROTECTOR, REAR BODY, NO.2
main66244-02010
8826612680CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-12680
8826612700CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-12700
9008011215
main90080-11215
90105A0039
main90105-A0039
9017906308
main90179-06308
9054111006
main90541-11006
91621J0614
main91621-J0614
63 parts on this diagram · 4 diagrams in section
SIDE MEMBER for Toyota COROLLA/MATRIX (NAP)
This section contains 107 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA/MATRIX (NAP). Key components include: HOLE PLUG, PROTECTOR, QUARTER PANEL, RH, PROTECTOR, QUARTER PANEL, LH, PROTECTOR, QUARTER PANEL, FRONT RH, PROTECTOR, QUARTER PANEL, FRONT LH.
