Toyota COROLLA/MATRIX (NAP) — NAVIGATION & FRONT MONITOR DISPLAY

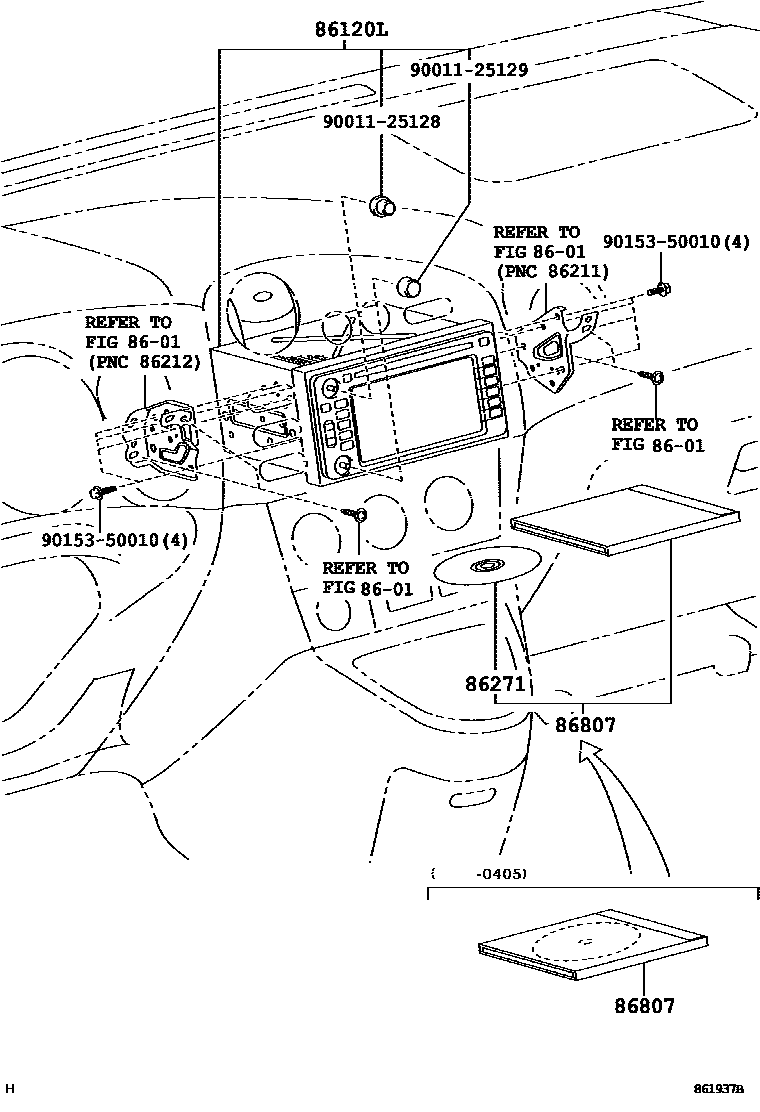

Parts diagram

86120LRECEIVER ASSY, NAVIGATION

main86120-01200i200201-200405

DELCO

86271DISC, DISC PLAYER

main86271-12060i200411

main86271-33032i200405-200406

main86271-33033i200407-200411

86807DISC KIT, CD-ROM

main86807-12010i200201-200208

main86807-12011i200208-200310

main86807-12012i200310-200405

main86807-12013i200407-200411

main86807-12050i200411

9001125128

main90011-25128

9001125129

main90011-25129

9015350010

main90153-50010

6 parts on this diagram · 1 diagram in section

NAVIGATION & FRONT MONITOR DISPLAY for Toyota COROLLA/MATRIX (NAP)

This section contains 6 genuine Toyota parts for the NAVIGATION & FRONT MONITOR DISPLAY system of the Toyota COROLLA/MATRIX (NAP). Key components include: RECEIVER ASSY, NAVIGATION, DISC, DISC PLAYER, DISC KIT, CD-ROM.
