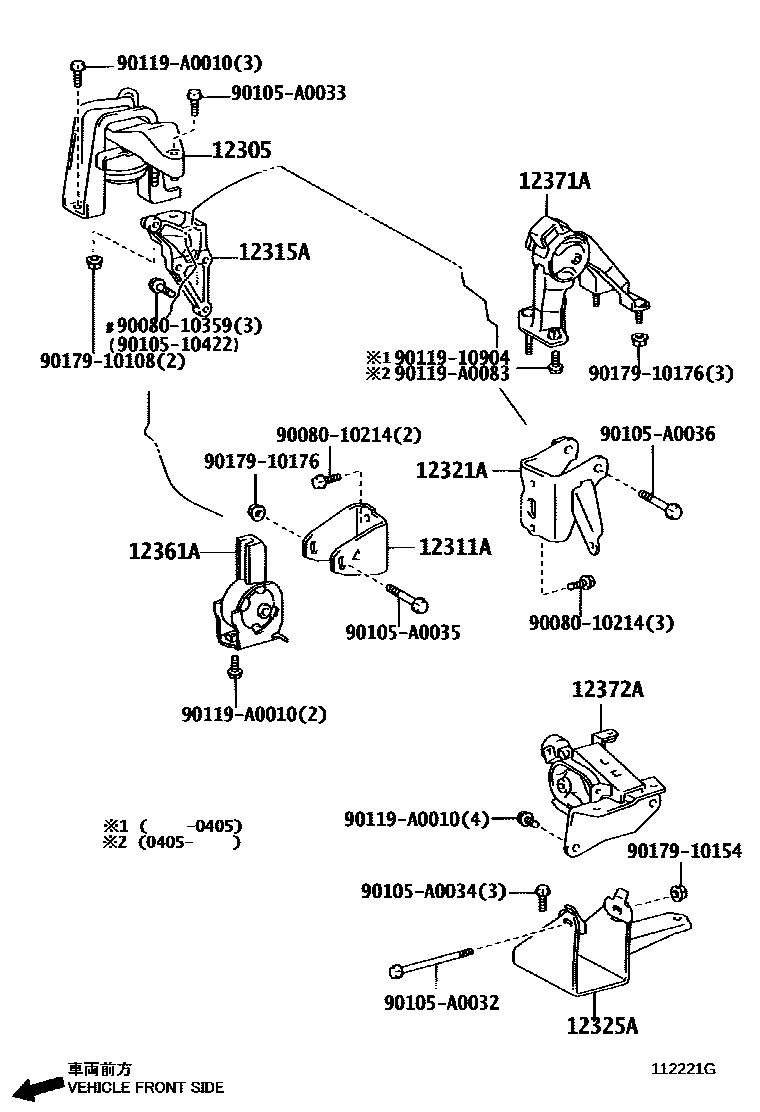

Toyota COROLLA/MATRIX (NAP) — MOUNTING
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
main12372-0D110i1ZZFE..ZZE130..NAP..4FC; 2ZZGE..ZZE133..NAP..6F;1ZZFE..ZZE132,134..NAP..4FC200201-200405
9008010214
main90080-10214
9008010359
main90080-10359
9010510422
main90105-10422
90105A0032
main90105-A0032
90105A0033
main90105-A0033
90105A0034
main90105-A0034
90105A0035
main90105-A0035
90105A0036
main90105-A0036
9011910904
main90119-10904
90119A0010
main90119-A0010
90119A0083
main90119-A0083
9017910108
main90179-10108
9017910154
main90179-10154
9017910176
main90179-10176
22 parts on this diagram · 5 diagrams in section
MOUNTING for Toyota COROLLA/MATRIX (NAP)
This section contains 39 genuine Toyota parts for the MOUNTING system of the Toyota COROLLA/MATRIX (NAP). Key components include: INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE).
