Toyota COROLLA/MATRIX (NAP) — MAT & CARPET

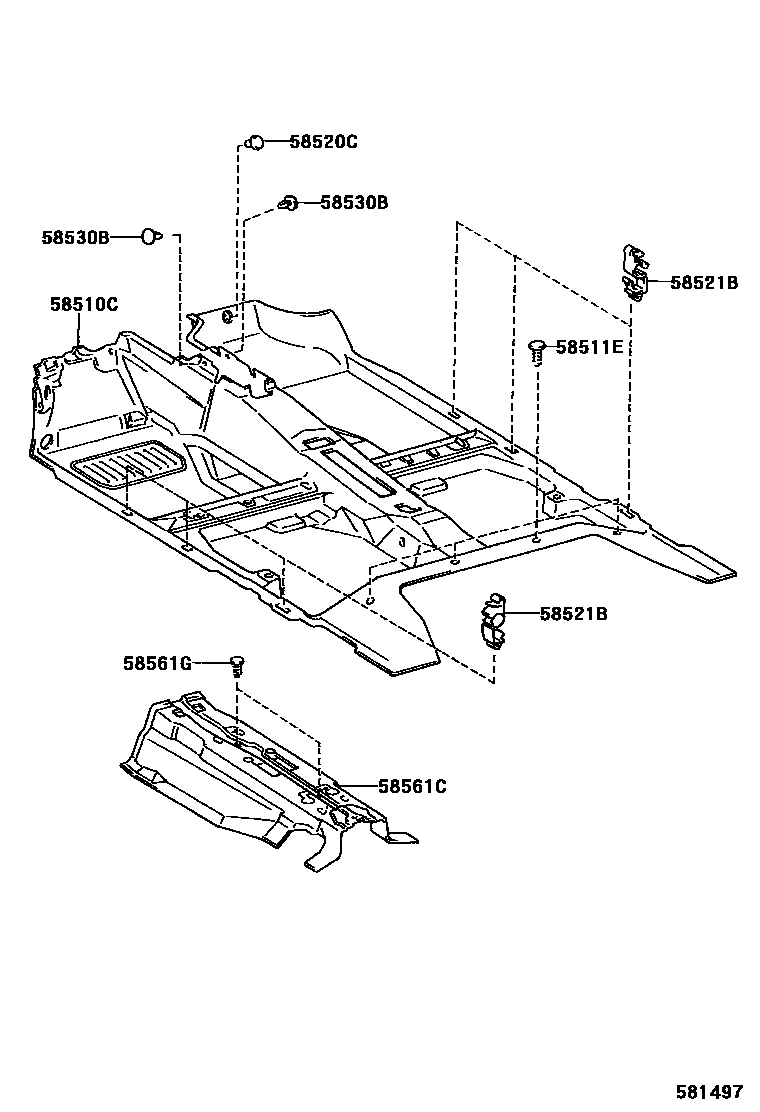

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-02490-B2i200201-200212
STONE,TRIM1#
main58510-02490-B3i200201-200212
DARK GRAY,TRIM1#
main58510-02490-E2i200201-200212
NEUTRAL BONE,TRIM4#
main58510-02491-B2i200212-200307
STONE,TRIM1#
main58510-02491-B3i200212-200307
DARK GRAY,TRIM1#
main58510-02491-E2i200212-200307
NEUTRAL BONE,TRIM4#
main58510-02492-B2i200405-200408
STONE,TRIM1#
main58510-02492-B3i200405-200408
DARK GRAY,TRIM1#
main58510-02492-E2i200307-200405
NEUTRAL BONE,TRIM4#
main58510-02493-B2i200409-200801
STONE,TRIM1#
main58510-02493-B3i200409-200801
DARK GRAY,TRIM1#
main58510-02493-E2i200409-200801
NEUTRAL BONE,TRIM4#
main58510-02500-B2i200201-200212
W(REAR HEATER DUCT),STONE,TRIM1#
main58510-02500-B3i200201-200212
W(REAR HEATER DUCT),DARK GRAY,TRIM1#
main58510-02500-E2i200201-200212
W(REAR HEATER DUCT),NEUTRAL BONE,TRIM4#
main58510-02501-B2i200212-200307
W(REAR HEATER DUCT),STONE,TRIM1#
main58510-02501-B3i200212-200307
W(REAR HEATER DUCT),DARK GRAY,TRIM1#
main58510-02501-E2i200212-200307
W(REAR HEATER DUCT),NEUTRAL BONE,TRIM4#
main58510-02502-B2i200307-200405
W(REAR HEATER DUCT),STONE,TRIM1#
main58510-02502-B3i200405-200408
W(REAR HEATER DUCT),DARK GRAY,TRIM1#
main58510-02502-E2i200307-200405
W(REAR HEATER DUCT),NEUTRAL BONE,TRIM4#
main58510-02503-B2i200409-200801
W(REAR HEATER DUCT),STONE,TRIM1#
main58510-02503-B3i200409-200801
W(REAR HEATER DUCT),DARK GRAY,TRIM1#
main58510-02503-E2i200409-200801
W(REAR HEATER DUCT),NEUTRAL BONE,TRIM4#
main58510-02510-B1i200201-200212
W(REAR HEATER DUCT),DARK GRAY,TRIM13,14
main58510-02511-B1i200212-200305
W(REAR HEATER DUCT),DARK GRAY,TRIM13,14
main58510-02512-B1i200405-200408
W(REAR HEATER DUCT),DARK GRAY,TRIM13,14
main58510-02513-B1i200409
W(REAR HEATER DUCT),DARK GRAY,TRIM13,14
main58510-02520-B1i200201-200212
DARK GRAY,TRIM13,14
main58510-02521-B1i200212-200305
DARK GRAY,TRIM13,14
main58510-02522-B1i200405-200408
DARK GRAY,TRIM13,14
main58510-02523-B1i200409
DARK GRAY,TRIM13,14
main58510-02530-B1i200201-200212
W(REAR HEATER DUCT),DARK GRAY,TRIM13,14
main58510-02531-B1i200212-200308
W(REAR HEATER DUCT),DARK GRAY,TRIM13,14
main58510-02532-B1i200405-200408
W(REAR HEATER DUCT),DARK GRAY,TRIM13,14
main58510-02533-B1i200409-200607
W(REAR HEATER DUCT),DARK GRAY,TRIM13,14
main58510-02540-B1i200201-200212
DARK GRAY,TRIM13,14
main58510-02541-B1i200212-200308
DARK GRAY,TRIM13,14
main58510-02542-B1i200308-200405
DARK GRAY,TRIM13,14
main58510-02543-B1i200409-200607
DARK GRAY,TRIM13,14
58511ECLIP(FOR FRONT FLOOR MAT)
main90467-07049-C0×2i200201-200405
BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM13,14
58520CCLIP(FOR FRONT FLOOR CARPET)
main90467-06001i200201-200405
main90467-06001-C0i200405-200801
BLACK
58521BHOOK, FLOOR CARPET
main58521-02040×6i200201-200305
58530BCLIP(FOR FRONT FLOOR CARPET)
main90467-08124×2i200405-200607
TYPE A:REFER ILLUST.
main90467-09118×2i200405
TYPE B:REFER ILLUST.
58561CSILENCER, FRONT FLOOR, NO.1
main58561-01010i200201-200305
main58561-01020i200405-200607
main58561-02050i200201-200405
58561GCLIP(FOR FRONT FLOOR SILENCER)
main90467-06077×2i200405

7 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota COROLLA/MATRIX (NAP)

This section contains 7 genuine Toyota parts for the MAT & CARPET system of the Toyota COROLLA/MATRIX (NAP). Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR MAT), CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET.
