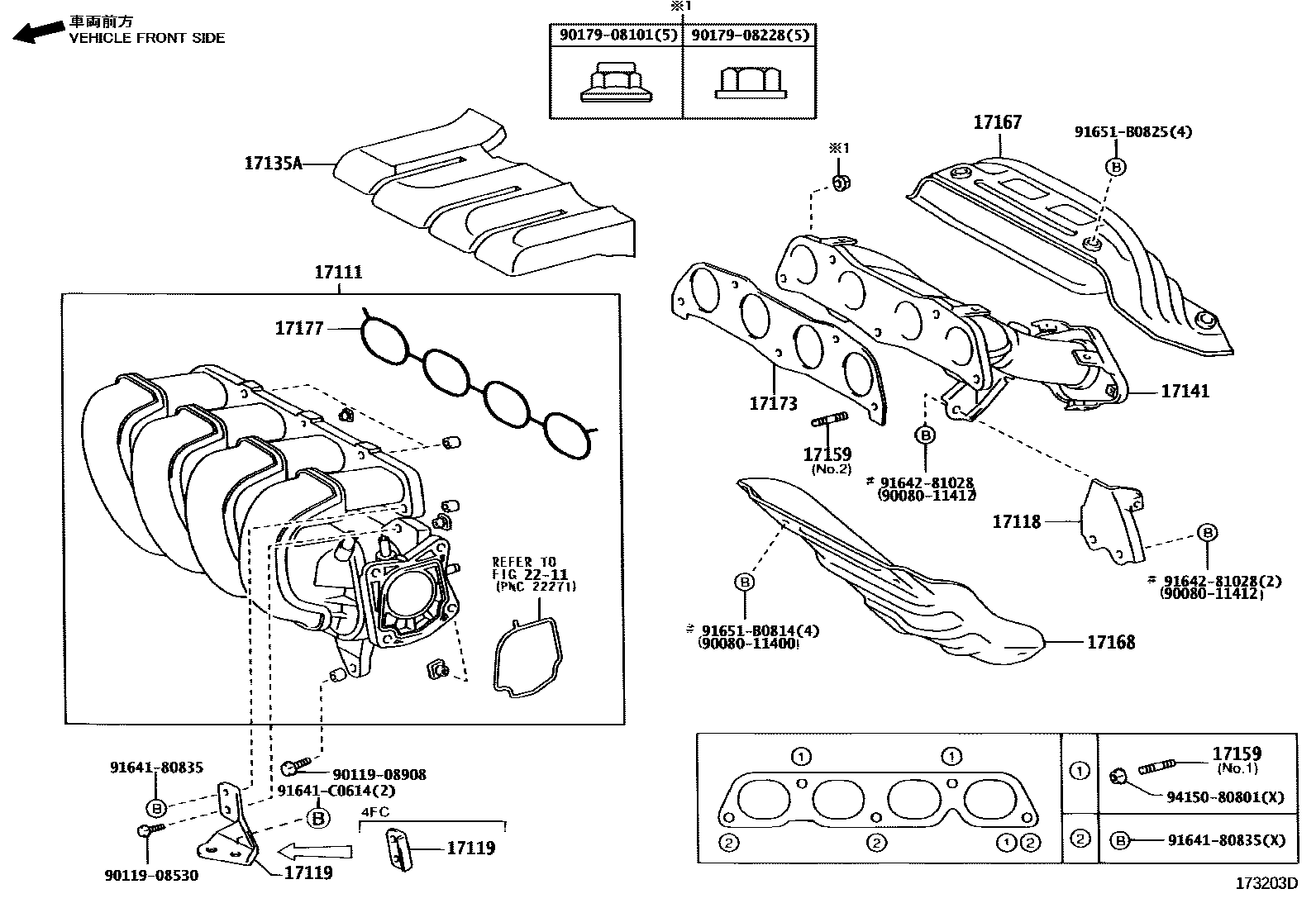

Toyota COROLLA/MATRIX (NAP) — MANIFOLD
17111MANIFOLD, INTAKE
(L)
(L)
(J)
(J)
17118STAY, MANIFOLD
(L)
(J)
17119STAY, MANIFOLD, NO.2
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17141MANIFOLD, EXHAUST
(L)
(J)
TYPE A:REFER TO ILLUSTRATION
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.2
NO.1
NO.2
NO.1
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
(L)
(J)
TYPE A:REFER TO ILLUSTRATION
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(L)
(J)
2211FUEL INJECTION SYSTEM
9008011400
main90080-11400
9008011412
main90080-11412
9011908530
main90119-08530
9011908908
main90119-08908
9017908101
main90179-08101
9017908228
main90179-08228
9164180835
main91641-80835
91641C0614
main91641-C0614
9164281028
main91642-81028
91651B0814
main91651-B0814
91651B0825
main91651-B0825
9415080801
main94150-80801
23 parts on this diagram · 4 diagrams in section
MANIFOLD for Toyota COROLLA/MATRIX (NAP)
This section contains 51 genuine Toyota parts for the MANIFOLD system of the Toyota COROLLA/MATRIX (NAP). Key components include: MANIFOLD AIR INJECTION SYSTEM, MANIFOLD, INTAKE, STAY, MANIFOLD, STAY, MANIFOLD, NO.2, STAY, SURGE TANK, NO.1.
