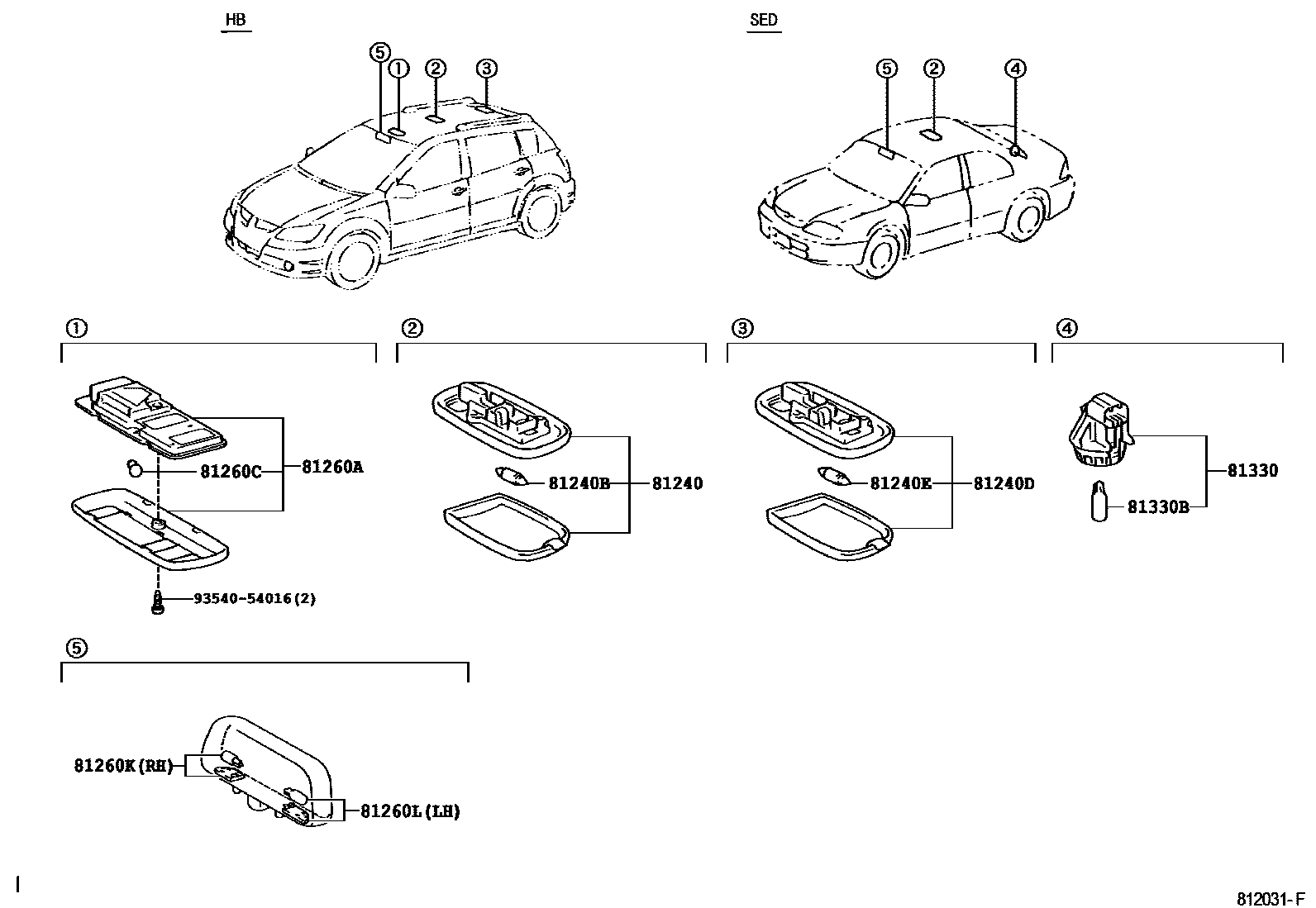

Toyota COROLLA/MATRIX (NAP) — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM13,14
MD.NEUTRAL BONE,TRIM4#
81240BBULB, ROOM LAMP, NO.1
main90981-14011iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200305-200405
12V 8W
81240DLAMP ASSY, ROOM, NO.2
LT.GRAY,TRIM13,14
81240EBULB, ROOM LAMP, NO.2
12V 8W
81260ALAMP ASSY, MAP
LT.GRAY,TRIM1#
MD.NEUTRAL BONE,TRIM4#
81260CBULB(FOR MAP LAMP)
12V 10W
81260KLENS & BULB, MAP LAMP, RH
81260LLENS & BULB, MAP LAMP, LH
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
main81330-02020iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
81330BBULB, LUGGAGE COMPARTMENT LAMP
main90080-81059iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
12V 5.0W
9354054016
main93540-54016
11 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota COROLLA/MATRIX (NAP)
This section contains 11 genuine Toyota parts for the INTERIOR LAMP system of the Toyota COROLLA/MATRIX (NAP). Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2, LAMP ASSY, MAP.
