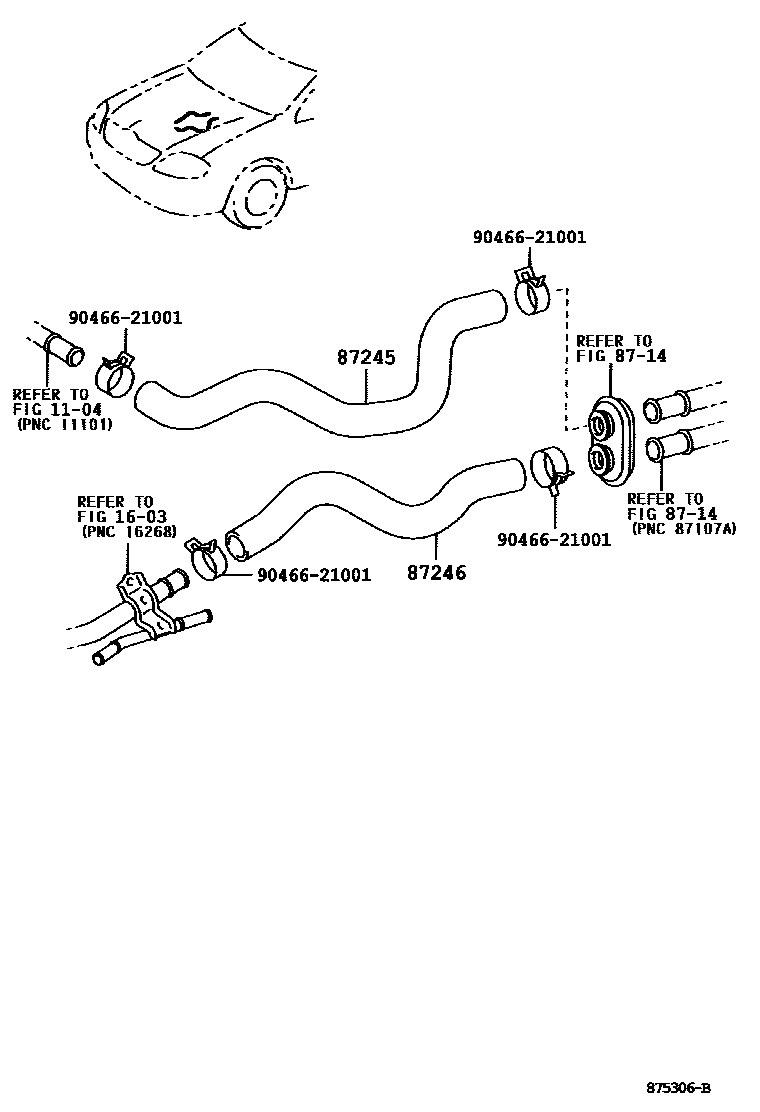

Toyota COROLLA/MATRIX (NAP) — HEATING & AIR CONDITIONING - WATER PIPING
1104CYLINDER HEAD
1603RADIATOR & WATER OUTLET
8714HEATING & AIR CONDITIONING - COOLER UNIT
87245HOSE, HEATER WATER, INLET
main87245-02500iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,134..NAP200201-200405
87246HOSE, HEATER WATER, OUTLET
main87245-02510iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND; ZZE132,134..NAP200201-200405
9046621001
main90466-21001
6 parts on this diagram · 2 diagrams in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota COROLLA/MATRIX (NAP)
This section contains 7 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota COROLLA/MATRIX (NAP). Key components include: CYLINDER HEAD, RADIATOR & WATER OUTLET, HEATING & AIR CONDITIONING - COOLER UNIT, HOSE, HEATER WATER, INLET, HOSE, HEATER WATER, OUTLET.
