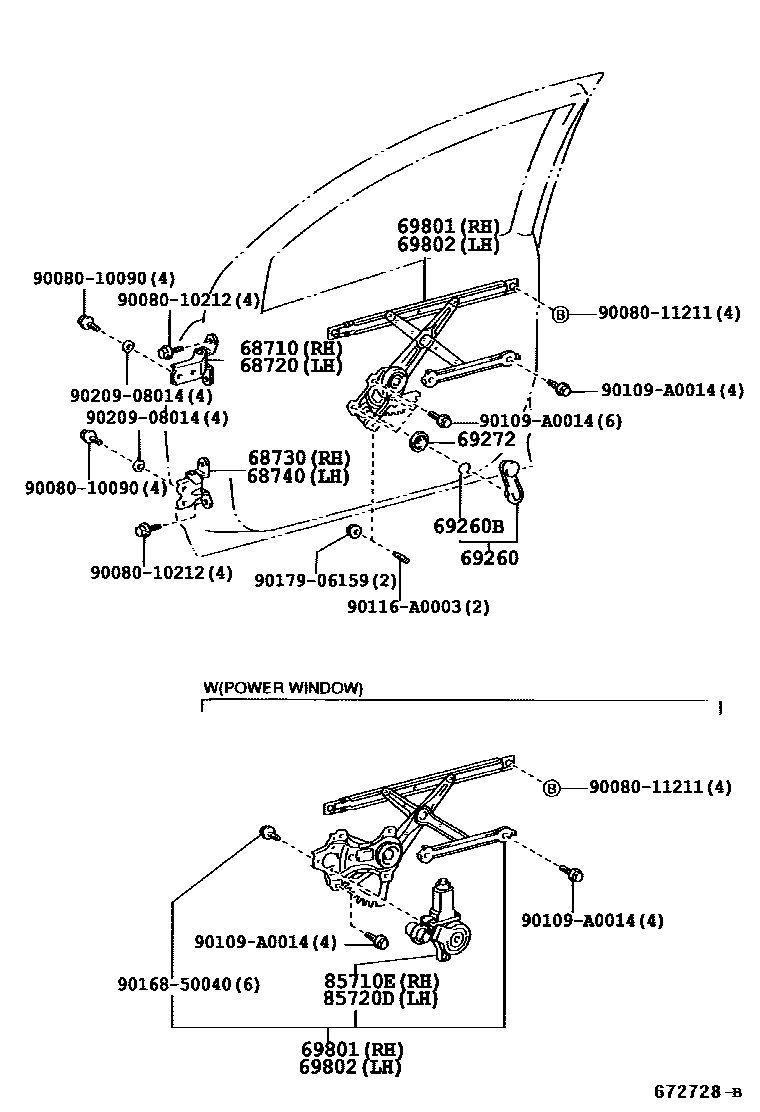

Toyota COROLLA/MATRIX (NAP) — FRONT DOOR WINDOW REGULATOR & HINGE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
68740HINGE ASSY, FRONT DOOR, LOWER LH
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
DK.GRAY,TRIM13,14
STONE,TRIM1#
MD.NEUTRAL BONE,TRIM4#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
W(POWER WINDOW)
W(POWER WINDOW)
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
W(POWER WINDOW)
W(POWER WINDOW)
85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH
85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH
9008010090
main90080-10090
9008010212
main90080-10212
9008011211
main90080-11211
90109A0014
main90109-A0014
90116A0003
main90116-A0003
9016850040
main90168-50040
9017906159
main90179-06159
9020908014
main90209-08014
19 parts on this diagram · 2 diagrams in section
FRONT DOOR WINDOW REGULATOR & HINGE for Toyota COROLLA/MATRIX (NAP)
This section contains 19 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota COROLLA/MATRIX (NAP). Key components include: HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH, HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
