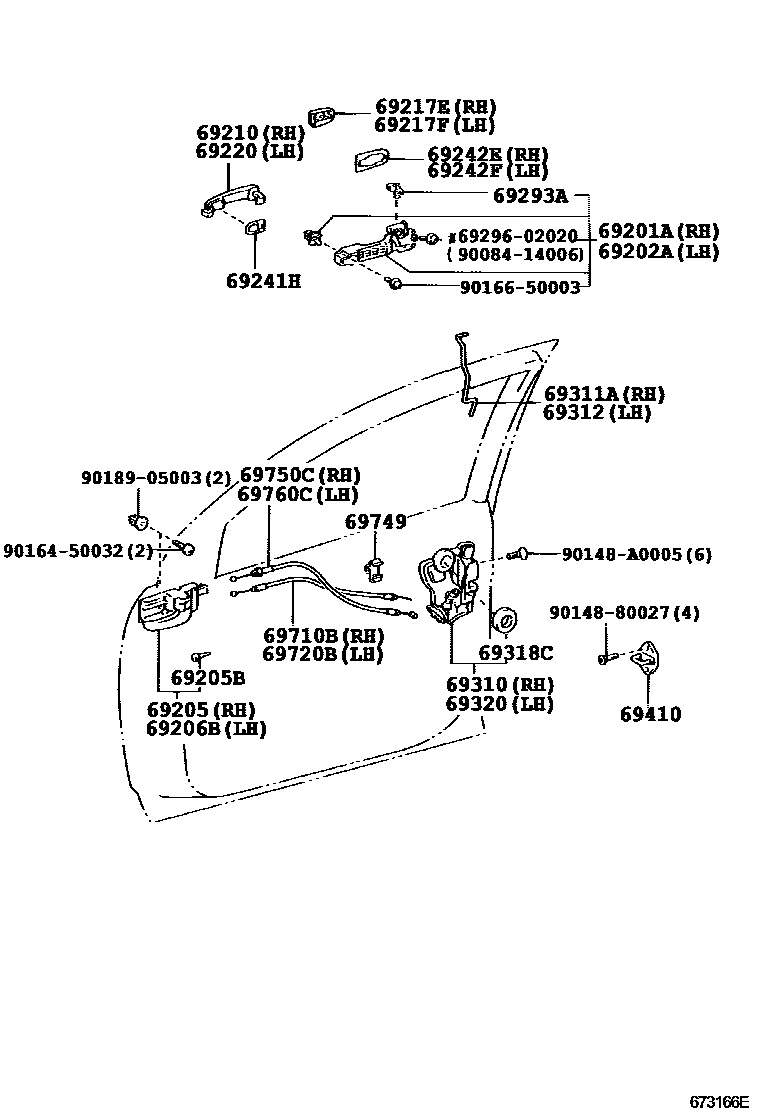

Toyota COROLLA/MATRIX (NAP) — FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
*CR,DK.GRAY,TRIM1#
*CR,MD.NEUTRAL BONE,TRIM4#
STONE,TRIM1#
DK.GRAY,TRIM13,14
MD.NEUTRAL BONE,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
*CR,DK.GRAY,TRIM1#
*CR,MD.NEUTRAL BONE,TRIM4#
STONE,TRIM1#
DK.GRAY,TRIM13,14
MD.NEUTRAL BONE,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
SUPER WHITE 2,040
main69211-AA020-B0iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
SILVER ME.,1C8
GRAY M.M.,1E3
CHARCOAL GRAY ME.,1E6
SILVER M.M.,1E7
DK. GRAY M.M.,1F4
main69211-AA020-C1iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
BLACK MC.,209
CHAMPAGNE M.M.,3M5
RED M.M.,3P1
RED,3L5
BEIGE M. M.,4Q2
SUPER BRIGHT YELLOW,576
GRAYISH GREEN M.M.OP.,6R6
TURQUOISE M.M.,775
DK.BLUE M.M.,8P4
BLUE ME.,8Q5
BLUE ME.,8P1
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK
main69227-AA010-A0iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
SUPER WHITE 2,040
main69227-AA010-B0iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
SILVER ME.,1C8
GRAY M.M.,1E3
CHARCOAL GRAY ME.,1E6
SILVER M.M.,1E7
DK. GRAY M.M.,1F4
main69227-AA010-C1iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
BLACK MC.,209
CHAMPAGNE M.M.,3M5
RED M.M.,3P1
RED,3L5
BEIGE M. M.,4Q2
SUPER BRIGHT YELLOW,576
GRAYISH GREEN M.M.OP.,6R6
TURQUOISE M.M.,775
DK.BLUE M.M.,8P4
BLUE ME.,8Q5
BLUE ME.,8P1
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK
SUPER WHITE 2,040
main69227-AA010-B0iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
SILVER ME.,1C8
GRAY M.M.,1E3
CHARCOAL GRAY ME.,1E6
SILVER M.M.,1E7
DK. GRAY M.M.,1F4
BLACK MC.,209
CHAMPAGNE M.M.,3M5
RED M.M.,3P1
RED,3L5
BEIGE M. M.,4Q2
SUPER BRIGHT YELLOW,576
GRAYISH GREEN M.M.OP.,6R6
TURQUOISE M.M.,775
main69227-AA010-J2iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
DK.BLUE M.M.,8P4
BLUE ME.,8Q5
BLUE ME.,8P1
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
main69211-AA020-A0iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
SUPER WHITE 2,040
main69211-AA020-B0iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
SILVER ME.,1C8
GRAY M.M.,1E3
CHARCOAL GRAY ME.,1E6
SILVER M.M.,1E7
DK. GRAY M.M.,1F4
main69211-AA020-C1iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
BLACK MC.,209
CHAMPAGNE M.M.,3M5
RED M.M.,3P1
RED,3L5
BEIGE M. M.,4Q2
SUPER BRIGHT YELLOW,576
GRAYISH GREEN M.M.OP.,6R6
TURQUOISE M.M.,775
main69211-AA020-J2iZZE130..NAP..USA;ZZE130..NAP..(LE,S)..CND; ZZE132,133,134..NAP..(XR,XRS)200201-200405
DK.BLUE M.M.,8P4
BLUE ME.,8Q5
BLUE ME.,8P1
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6929602020SCREW, DOOR INSIDE HANDLE
main69296-02020
9008414006
main90084-14006
9014880027
main90148-80027
90148A0005
main90148-A0005
9016450032
main90164-50032
9016650003
main90166-50003
9018905003
main90189-05003
31 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota COROLLA/MATRIX (NAP)
This section contains 31 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota COROLLA/MATRIX (NAP). Key components include: FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, CUSHION(FOR FRONT DOOR INSIDE HANDLE), HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH.
