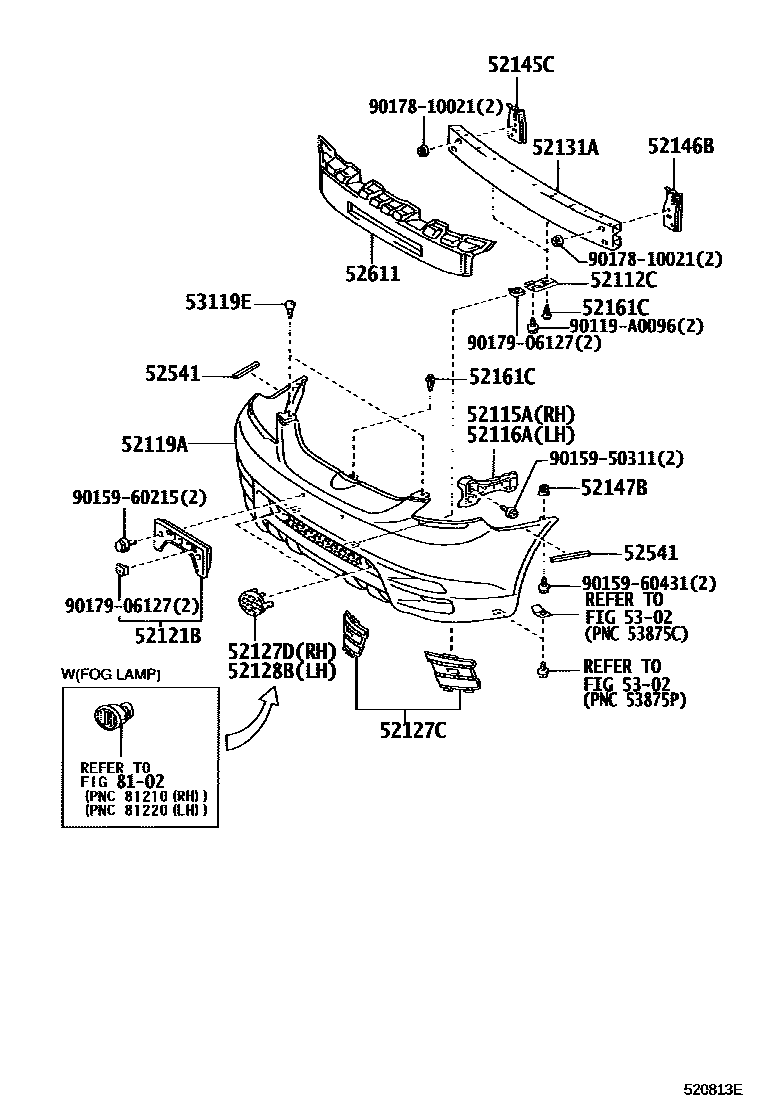

Toyota COROLLA/MATRIX (NAP) — FRONT BUMPER & BUMPER STAY
52112CEXTENSION, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,W(FRONT SPOILER)
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.,W(FRONT SPOILER)
52121BBRACKET, FRONT LICENCE PLATE MOUNTING
52127CCOVER, FRONT BUMPER HOLE
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52131AREINFORCEMENT, FRONT BUMPER
52145CBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146BBRACKET, FRONT BUMPER SIDE MOUNTING, LH
52147BBRACKET, FRONT BUMPER MOUNTING
52161CPIECE, FRONT BUMPER
W(FRONT SPOILER)
52541PROTECTOR, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
5302HOOD & FRONT FENDER
53119EPROTECTOR, RADIATOR GRILLE
8102FOG LAMP
90119A0096
main90119-A0096
9015950311
main90159-50311
9015960215
main90159-60215
9015960431
main90159-60431
9017810021
main90178-10021
9017906127
main90179-06127
24 parts on this diagram · 5 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota COROLLA/MATRIX (NAP)
This section contains 32 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota COROLLA/MATRIX (NAP). Key components include: EXTENSION, FRONT BUMPER, EXTENSION, FRONT BUMPER, RH, EXTENSION, FRONT BUMPER, LH, BRACKET, FRONT BUMPER EXTENSION MOUNTING, SUPPORT, FRONT BUMPER SIDE, RH.
