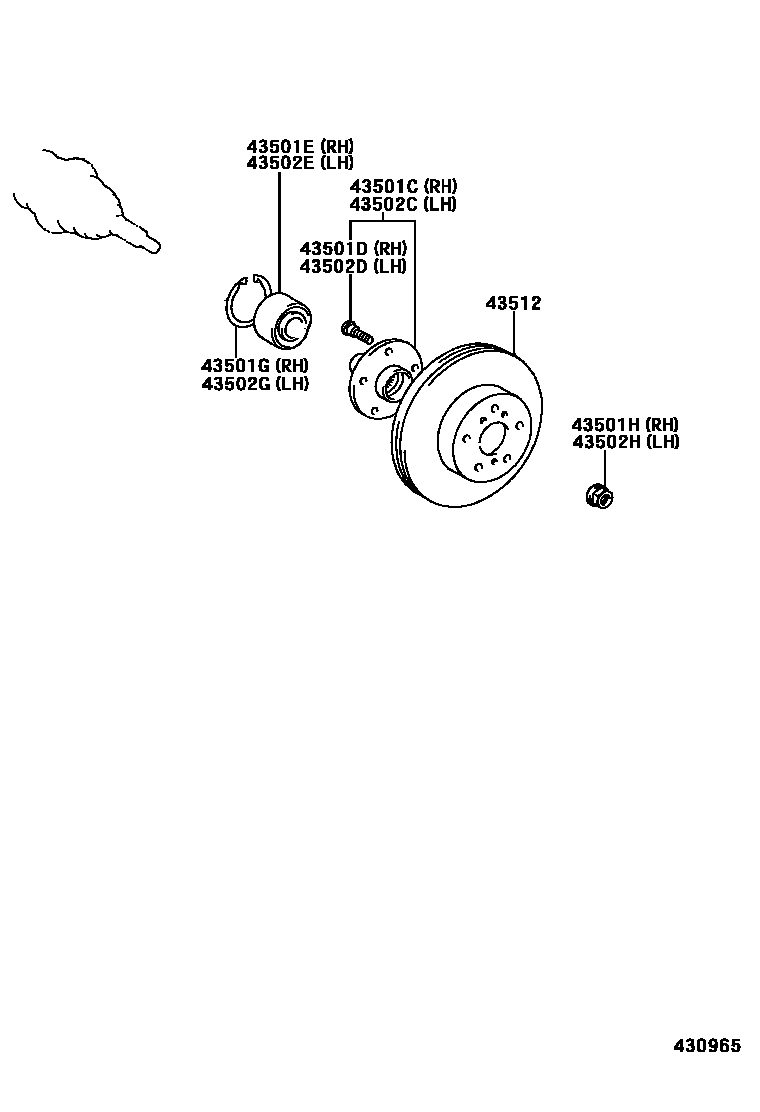

Toyota COROLLA/MATRIX (NAP) — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-32080i200201-200305

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i200201-200405

43501EBEARING (FOR FRONT AXLE HUB RH)

main90080-36136i200201-200405

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-79002i200201-200405

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001i200201-200405

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-32080i200201-200405

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i200405

43502EBEARING (FOR FRONT AXLE HUB LH)

main90080-36136i200201-200405

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-79002i200201-200405

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001i200201-200405

43512DISC, FRONT

main43512-02110×2i200405-200409

STEEL

main43512-02111×2i200409

main43512-02130×2i200405-200409

ALUMINUM

11 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA/MATRIX (NAP)

This section contains 11 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA/MATRIX (NAP). Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH), NUT (FOR FRONT AXLE SHAFT RH).
