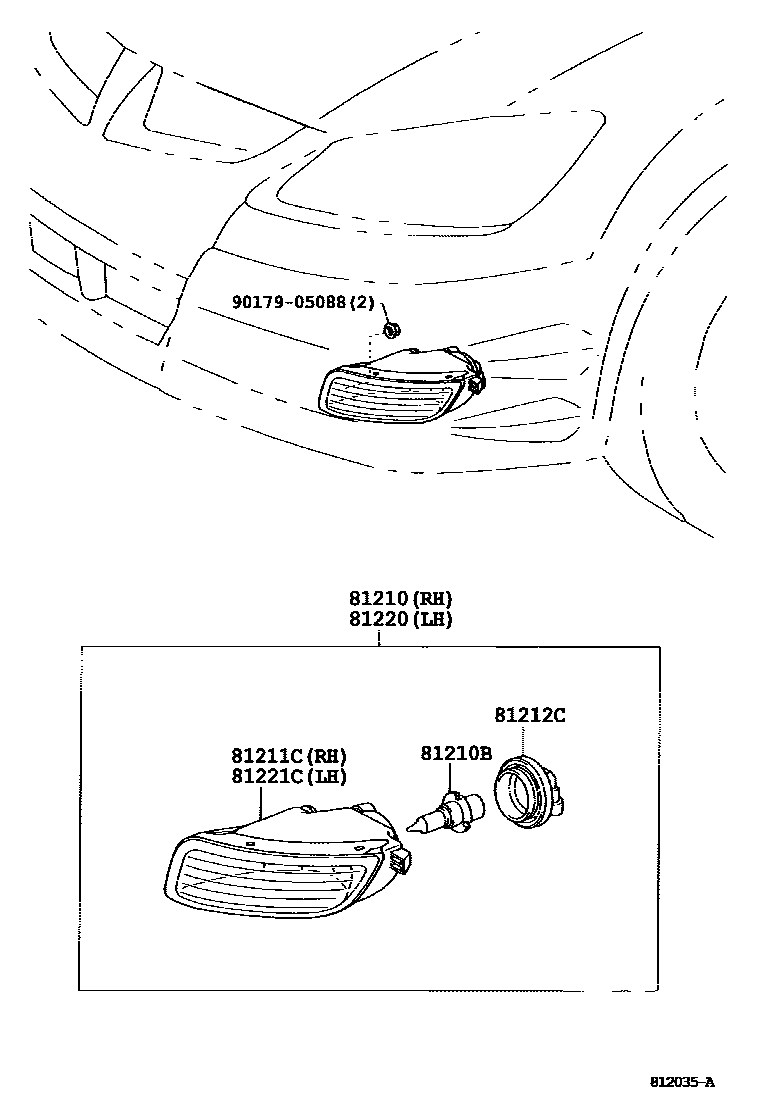

Toyota COROLLA/MATRIX (NAP) — FOG LAMP
81210LAMP ASSY, FOG
main81210-02060iZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA; ZZE130..NAP..5F..LE..CND200201-200405
81210BBULB, FOG LAMP
12V 51W
main90080-81084×2iZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA; ZZE130..NAP..5F..LE..CND200201-200405
12V 55W
12V 51W,HALOGEN
81211CLAMP UNIT, FOG LAMP, RH
main81211-02060iZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA; ZZE130..NAP..5F..LE..CND200201-200405
81212CCOVER, FOG LAMP
main90069-81009×2iZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA; ZZE130..NAP..5F..LE..CND200201-200405
81220LAMP ASSY, FOG, LH
main81220-02060iZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA; ZZE130..NAP..5F..LE..CND200201-200405
81221CLAMP UNIT, FOG LAMP, LH
main81221-02060iZZE130..5F..S..CND;ZZE130..4FC..(LE,S);ZZE130..5F..(LE,S)..USA; ZZE130..NAP..5F..LE..CND200201-200405
9017905088
main90179-05088
7 parts on this diagram · 3 diagrams in section
FOG LAMP for Toyota COROLLA/MATRIX (NAP)
This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota COROLLA/MATRIX (NAP). Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, RH, COVER, FOG LAMP, LAMP ASSY, FOG, LH.
