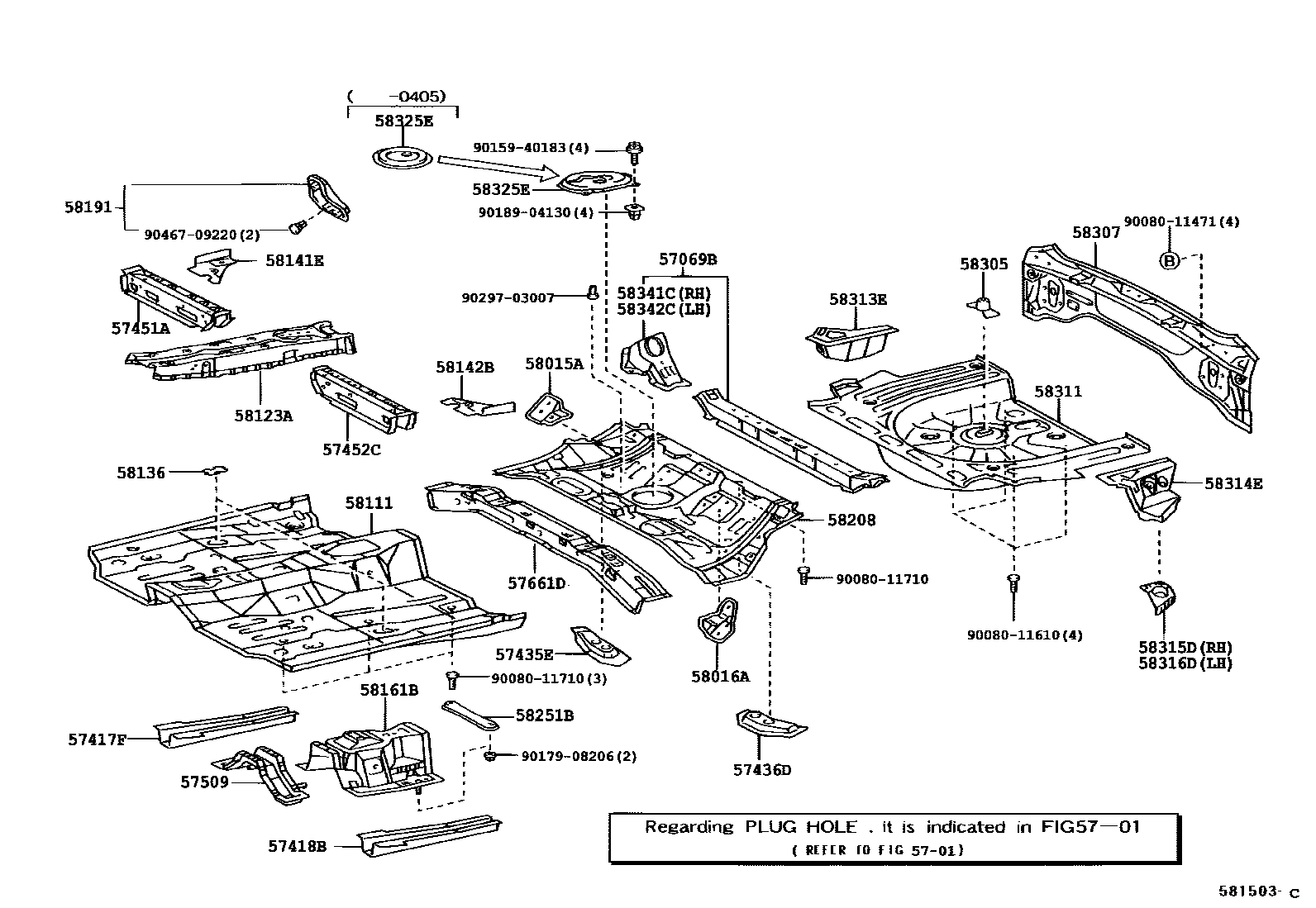

Toyota COROLLA/MATRIX (NAP) — FLOOR PAN & LOWER BACK PANEL
5701HOLE PLUG
57069BMEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57435EMEMBER, CENTER FLOOR SIDE, RH
57436DMEMBER, CENTER FLOOR SIDE, LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57661DMEMBER, REAR FLOOR CROSS, FRONT
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
W(FIXED TYPE REAR SEAT )
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58191FOOTREST, FRONT FLOOR
58208PAN, CENTER FLOOR
W(6:4 SPRIT REAR SEAT)
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313PANEL, REAR FLOOR SIDE, RH
58313EEXTENSION, REAR FLOOR SIDE PANEL, RH
58314PANEL, REAR FLOOR SIDE, LH
58314EEXTENSION, REAR FLOOR SIDE PANEL, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
9008011471
main90080-11471
9008011610
main90080-11610
9008011710
main90080-11710
9015940183
main90159-40183
9017908206
main90179-08206
9018904130
main90189-04130
9029703007
main90297-03007
9046709220
main90467-09220
41 parts on this diagram · 3 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota COROLLA/MATRIX (NAP)
This section contains 49 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota COROLLA/MATRIX (NAP). Key components include: RETAINER, REAR BUMPER, UPPER RH, RETAINER, REAR BUMPER, UPPER LH, HOLE PLUG, MEMBER SUB-ASSY, REAR FLOOR CROSS, CENTER, REINFORCEMENT, FRONT FLOOR UNDER, RH.
