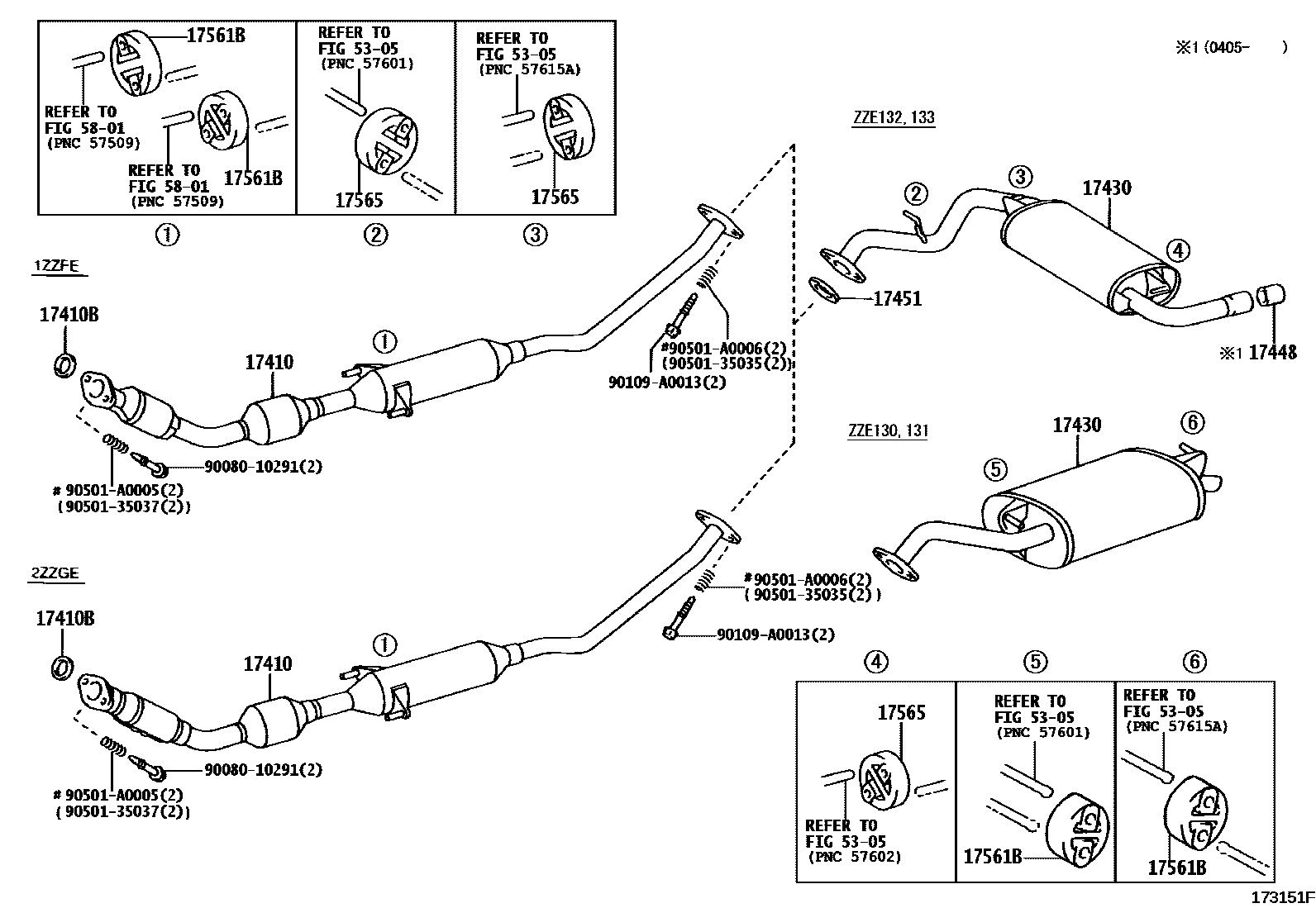

Toyota COROLLA/MATRIX (NAP) — EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
main17410-0D150i1ZZFE..ZZE130..NAP..4FC;1ZZFE..ZZE130..NAP..5F..USA;1ZZFE..ZZE130..NAP..5F..(CE,S)..CND; 1ZZFE..ZZE130..NAP..5F..LE..CND; 1ZZFE..ZZE132..NAP200201-200405
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
main17430-0D180i1ZZFE..ZZE130..NAP..4FC;1ZZFE..ZZE130..NAP..5F..USA;1ZZFE..ZZE130..NAP..5F..(CE,S)..CND; 1ZZFE..ZZE130..NAP..5F..LE..CND200201-200405
17448BAFFLE, TAILPIPE
17451GASKET, EXHAUST PIPE
main17451-0D030i1ZZFE..ZZE130..NAP..4FC;1ZZFE..ZZE130..NAP..5F..USA;1ZZFE..ZZE130..NAP..5F..(CE,S)..CND; 1ZZFE..ZZE130..NAP..5F..LE..CND; 1ZZFE..ZZE132..NAP200201-200405
17561BSUPPORT, EXHAUST PIPE, NO.1
17565SUPPORT, EXHAUST PIPE, NO.5
5305FLOOR SIDE MEMBER
5801FLOOR PAN & LOWER BACK PANEL
9008010291
main90080-10291
90109A0013
main90109-A0013
9050135035
main90501-35035
9050135037
main90501-35037
90501A0005
main90501-A0005
90501A0006
main90501-A0006
15 parts on this diagram · 2 diagrams in section
EXHAUST PIPE for Toyota COROLLA/MATRIX (NAP)
This section contains 19 genuine Toyota parts for the EXHAUST PIPE system of the Toyota COROLLA/MATRIX (NAP). Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, CENTER, GASKET, EXHAUST PIPE, CENTER, PIPE ASSY, EXHAUST, TAIL.
