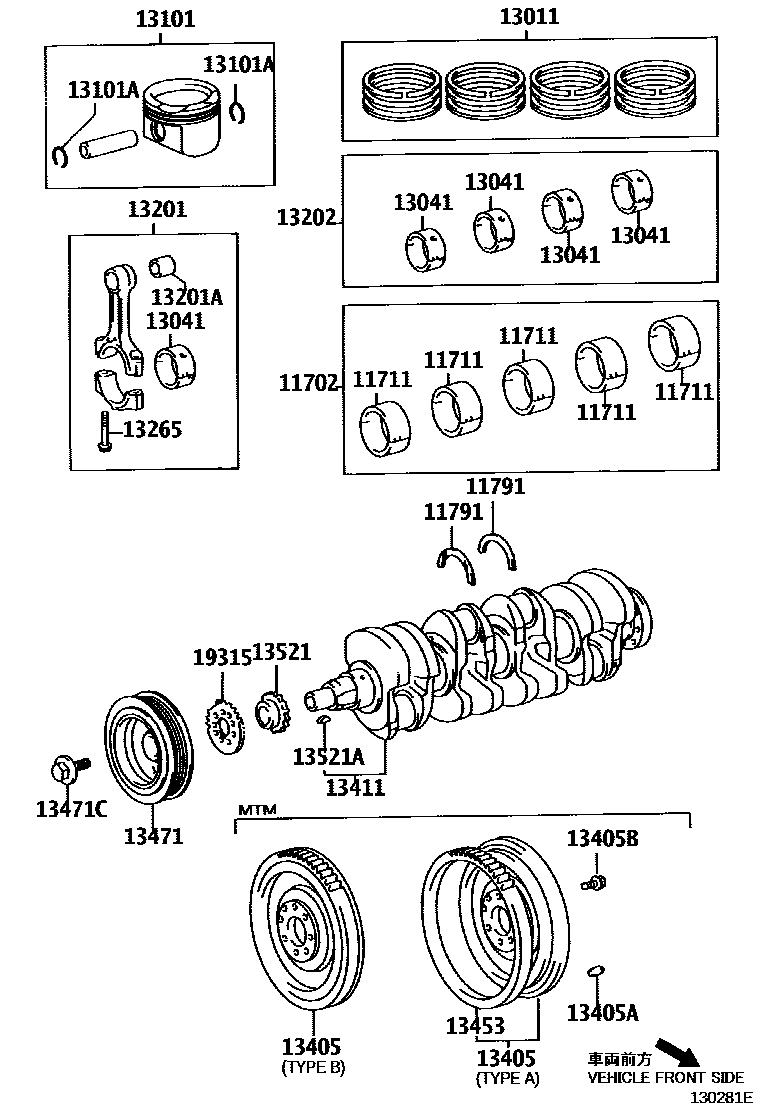

Toyota COROLLA/MATRIX (NAP) — CRANKSHAFT & PISTON

11702BEARING SET, CRANKSHAFT

main11704-22011i200405

U/S 0.25

main11704-22021i200405-200607

U/S 0.25

main11704-22030i200201-200405

U/S 0.25

main11704-88600i200201-200405

U/S 0.25

11711BEARING, CRANKSHAFT

main11701-0D010-01×5i200201-200405

MARK 1,(L):REFER R/M

main11701-0D010-02×5i200201-200405

MARK 2,(L):REFER R/M

main11701-0D010-03×5i200201-200405

MARK 3,(L):REFER R/M

main11701-0D010-04×5i200201-200405

MARK 4,(L):REFER R/M

main11701-0D011-01×5i200704-200801

MARK1,(L):REFER R/M

main11701-0D011-02×5i200704-200801

MARK2,(L):REFER R/M

main11701-0D011-03×5i200704-200801

MARK3,(L):REFER R/M

main11701-0D011-04×5i200704-200801

MARK4,(L):REFER R/M

main11701-22010×5i200405-200407

(J):REFER R/M; REFER REPAIR MANUAL

main11701-22010-01×5i200201-200405

MARK 1,(J):REFER R/M; MARK 1,REFER REPAIR MANUAL

main11701-22010-02×5i200201-200405

MARK 2,(J):REFER R/M; MARK 2,REFER REPAIR MANUAL

main11701-22010-03×5i200201-200405

MARK 3,(J):REFER R/M; MARK 3,REFER REPAIR MANUAL

main11701-22010-04×5i200201-200405

MARK 4,(J):REFER R/M; MARK 4,REFER REPAIR MANUAL

main11701-22011-01×5i200407-200801

MARK1,(J):REFER R/M

main11701-22011-02×5i200407-200801

MARK2,(J):REFER R/M

main11701-22011-03×5i200407-200607

MARK3,REFER REPAIR MANUAL

main11701-22011-04×5i200407-200801

MARK4,(J):REFER R/M

main11701-22020-01×5i200407-200607

MARK1,REFER REPAIR MANUAL

main11701-22020-02×5i200407-200607

MARK2,REFER REPAIR MANUAL

main11701-22020-03×5i200407-200607

MARK3,REFER REPAIR MANUAL

main11701-22020-04×5i200407-200607

MARK4,REFER REPAIR MANUAL

main11701-22020-05×5i200407-200607

MARK5,REFER REPAIR MANUAL

main11701-88600×5i200405-200407

REFER REPAIR MANUAL

main11701-88600-01×5i200201-200405

MARK 1,REFER REPAIR MANUAL

main11701-88600-02×5i200201-200405

MARK 2,REFER REPAIR MANUAL

main11701-88600-03×5i200201-200405

MARK 3,REFER REPAIR MANUAL

main11701-88600-04×5i200405-200407

MARK 4,REFER REPAIR MANUAL

main11701-88600-05×5i200405-200407

MARK 5,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-22020×2i200405

STD

13011RING SET, PISTON

main13011-0D010i200201-200306

STD,(L)

main13011-0D090i200306-200405

STD,(L)

main13011-22170i200201-200210

STD; STD,(J)

main13011-22190i200203-200212

STD

main13011-22200i200210-200405

STD,(J)

main13011-22220i200708-200801

STD

main13011-22230i200410-200801

STD,(J)

main13011-88601i200405-200607

STD

13041BEARING, CONNECTING ROD

main13041-0D010-01×4i200405-200704

MARK 1,(L):REFER R/M

main13041-0D010-02×4i200201-200405

MARK 2,(L):REFER R/M

main13041-0D010-03×4i200201-200405

MARK 3,(L):REFER R/M

main13041-0D011-01×4i200704

MARK1,(L):REFER R/M

main13041-0D011-02×4i200704

MARK2,(L):REFER R/M

main13041-0D011-03×4i200704

MARK3,(L):REFER R/M

main13041-22023×4i200405-200407

(J):REFER R/M

main13041-22023-01×4i200201-200405

MARK 1,(J):REFER R/M; MARK 1,REFER REPAIR MANUAL

main13041-22023-02×4i200201-200405

MARK 2,(J):REFER R/M; MARK 2,REFER REPAIR MANUAL

main13041-22023-03×4i200201-200405

MARK 3,(J):REFER R/M; MARK 3,REFER REPAIR MANUAL

main13041-22024-01×4i200407

MARK1,(J):REFER R/M

main13041-22024-02×4i200407

MARK2,(J):REFER R/M

main13041-22024-03×4i200407

MARK3,(J):REFER R/M

main13041-88600×4i200405-200607

REFER REPAIR MANUAL

main13041-88600-01×4i200201-200405

MARK 1,REFER REPAIR MANUAL

main13041-88600-02×4i200405-200607

MARK 2,REFER REPAIR MANUAL

main13041-88600-03×4i200201-200405

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-0D090×4i200405-200505

STD

main13101-0D091×4i200505

STD

main13101-22140×4i200405-200505

STD

main13101-22141×4i200505-200508

STD

main13101-22180×4i200508-200607

STD

main13101-88601×4i200405-200607

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-20064×8i200201-200405

13201ROD SUB-ASSY, CONNECTING

main13201-09122×4i200201-200405

(L)

main13201-09201×4i200407-200704

(L)

main13201-09202×4i200704-200801

(L)

main13201-09240×4i200405-200407

(L)

main13201-29038×4i200201-200405

(J)

main13201-29075×4i200201

main13201-29176×4i200407-200801

(J)

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73140×4i200405-200707

main90999-73142×4i200405-200607

main90999-73151×4i200707

13202BEARING SET, CONNECTING ROD

main13204-22023i200201-200405

U/S 0.25

main13204-22024i200405-200801

U/S 0.25

main13204-88600i200201-200405

U/S 0.25

13265BOLT, CONNECTING ROD

main13265-22020×8i200405

main13265-22030×8i200405-200607

13405FLYWHEEL SUB-ASSY

main13405-22020i200703

TYPE A:REFER ILLUST.

main13405-88600i200405-200607

main13451-22020i200405-200703

TYPE B:REFER ILLUST.

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i200405-200605

L=23,OD=8

main90250-08120×3i200201-200405

L=18,OD=8

main90250-A0014×3i200605

L=23,OD=8,(L)

main90250-A0016×3i200605

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90910-02103×8i200201-200405

13411CRANKSHAFT

main13401-0D050i200405-200711

(L)

main13401-22010i200405-200801

(J)

main13401-22051i200405-200607

13453GEAR, FLYWHEEL RING

main13453-10010i200703

13471PULLEY, CRANKSHAFT

main13470-0D010i200405

(L)

main13470-22021i200405

(J)

main13470-88600i200201-200305

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-12127i200405

main90119-12351i200201-200405

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0D010i200405

(L)

main13521-22020i200201-200405

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30416i200201-200405

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-22020i200201-200405

21 parts on this diagram · 2 diagrams in section

CRANKSHAFT & PISTON for Toyota COROLLA/MATRIX (NAP)

This section contains 21 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota COROLLA/MATRIX (NAP). Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
