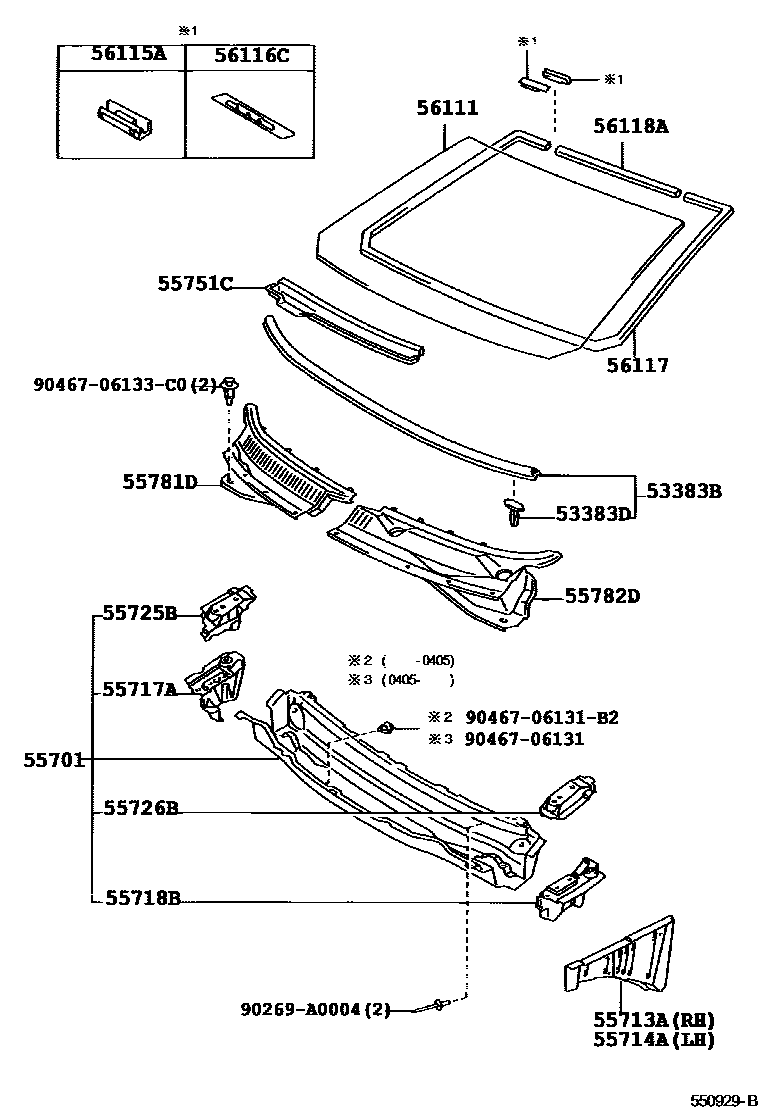

Toyota COROLLA/MATRIX (NAP) — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-01020i200201-200405

main53383-02070i200201-200405

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×8i200405-200607

55701PANEL SUB-ASSY, COWL

main55700-02230i200405-200801

main55700-02240i200405

55713APANEL, COWL TOP SIDE, RH

main55713-02040i200405

55714APANEL, COWL TOP SIDE, LH

main55714-02040i200201-200305

55717APANEL, COWL TOP SIDE, INNER RH

main55717-02050i200201-200405

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-02040i200201-200405

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55705-02030i200201-200405

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55706-02030i200201-200405

55751CSHIELD, COWL VENTILATOR SPLASH

main55751-02070i200201-200405

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-02170i200405

main55708-02180i200201-200405

COLD SPEC

main55708-02190i200201-200311

COLD SPEC

main55708-02191i200405-200607

COLD SPEC

main55708-02200i200201-200311

main55708-02201i200405-200607

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02090i200405

main55709-02100i200201-200405

COLD SPEC

main55709-02110i200201-200311

COLD SPEC

main55709-02111i200405-200607

COLD SPEC

main55709-02120i200201-200311

main55709-02121i200311-200405

56111GLASS, WINDSHIELD

main56101-02050i200405

*LAM,T=4.76,GREEN

main56101-02060i200201-200405

*LAM,T=4.76,GREEN

main56101-02250i200405

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100i200201-200405

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050i200405

56117DAM, FRONT PILLAR, OUTER

main90998-91004i200201-200405

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main90998-91003i200201-200405

90269A0004

main90269-A0004

9046706131

main90467-06131

9046706131B2

main90467-06131B2

9046706133C0

main90467-06133C0

21 parts on this diagram · 2 diagrams in section

COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA/MATRIX (NAP)

This section contains 24 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA/MATRIX (NAP). Key components include: SEAL, HOOD TO COWL TOP, CLIP(FOR HOOD TO COWL TOP SEAL), PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH.
