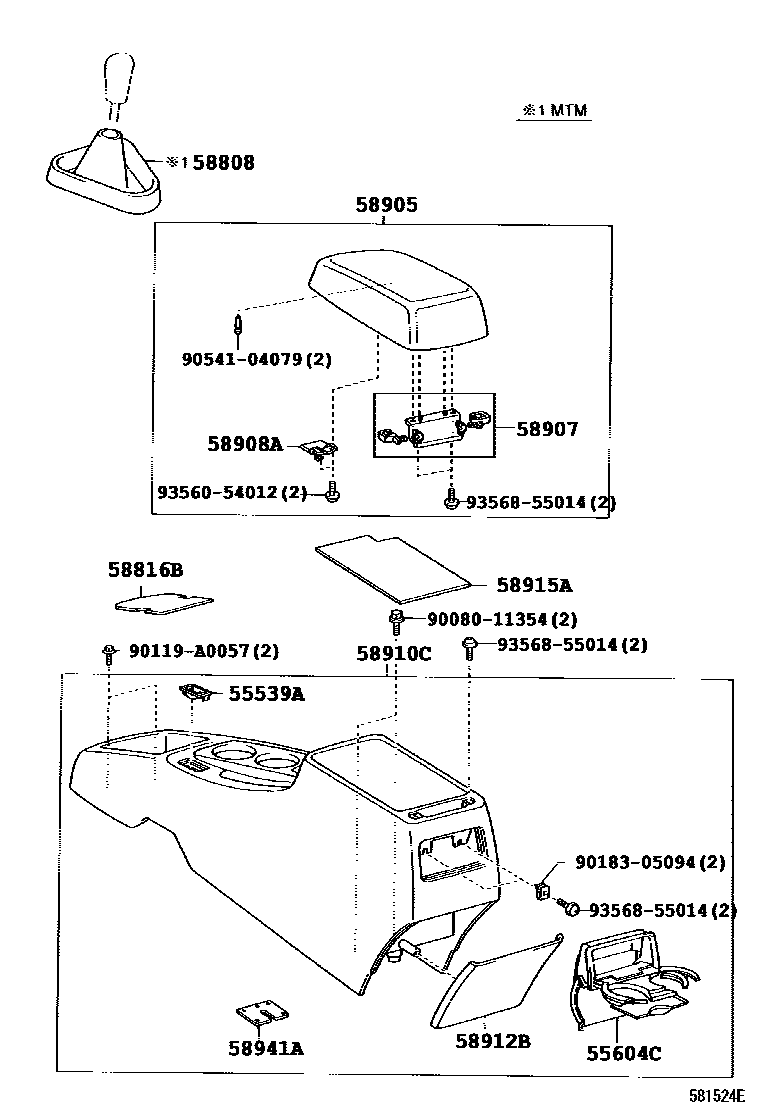

Toyota COROLLA/MATRIX (NAP) — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-02010-B3i200201-200305

DK.GRAY,TRIM13,14

55604CHOLDER SUB-ASSY, CONSOLE BOX CUP

main55604-AB010-B0i200201-200405

STONE,TRIM1#

main55604-AB010-B1i200201-200405

DK.GRAY,TRIM1#; DK.GRAY,TRIM13,14

main55604-AB010-E0i200405-200801

MD.NEUTRAL BONE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12180-B0i200405-200801

DK.GRAY,TRIM1#

main58808-12180-B1i200201-200405

DK. STONE,TRIM1#

main58808-12180-E1i200405-200801

DK.NEUTRAL BONE,TRIM4#

main58808-12220-B0i200405

DK.GRAY,TRIM13,14

main58808-12230-B0i200201-200405

DK.GRAY,TRIM13,14

main58808-12270-B0i200405-200607

DK.GRAY,TRIM1#

58816BINSERT, CONSOLE BOX

main58816-AG010i200201-200305

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02210-B0×2i200201-200405

STONE,TRIM1#

main58905-02210-B1i200201-200405

DK.GRAY,TRIM13,14

main58905-02210-E0×2i200201-200405

MD.NEUTRAL BONE,TRIM4#

main58905-02220-B0i200405-200801

STONE,TRIM1#

main58905-02220-B1×2i200201-200405

DK.GRAY,TRIM1#; DK.GRAY,TRIM13,14

main58905-02220-E0×2i200201-200405

MD.NEUTRAL BONE,TRIM4#

main58905-02280-B2i200405-200801

STONE,TRIM1#

main58905-02280-E2i200405-200801

MD.NEUTRAL BONE,TRIM4#

main58905-02310-E1i200405-200801

LEATHER,MD.NEUTRAL BONE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-02020i200201-200405

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-02020i200201-200305

58910CBOX ASSY, CONSOLE, REAR

main58910-AG010-B0i200201-200305

DK.GRAY,TRIM13,14

58912BBOX, REAR CONSOLE, LOWER

main58912-AG010-B0i200201-200305

DK.GRAY,TRIM13,14

58915ADAMPER, CONSOLE BOX, REAR

main58915-AG010i200201-200305

58941ACOVER, PARKING BRAKE HOLE

main58941-AG010i200201-200305

9008011354

main90080-11354

90119A0057

main90119-A0057

9018305094

main90183-05094

9054104079

main90541-04079

9356054012

main93560-54012

9356855014

main93568-55014

17 parts on this diagram · 4 diagrams in section

CONSOLE BOX & BRACKET for Toyota COROLLA/MATRIX (NAP)

This section contains 28 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota COROLLA/MATRIX (NAP). Key components include: COVER, SPARE SWITCH HOLE, HOLDER SUB-ASSY, CONSOLE BOX CUP, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, INSERT, CONSOLE BOX.
