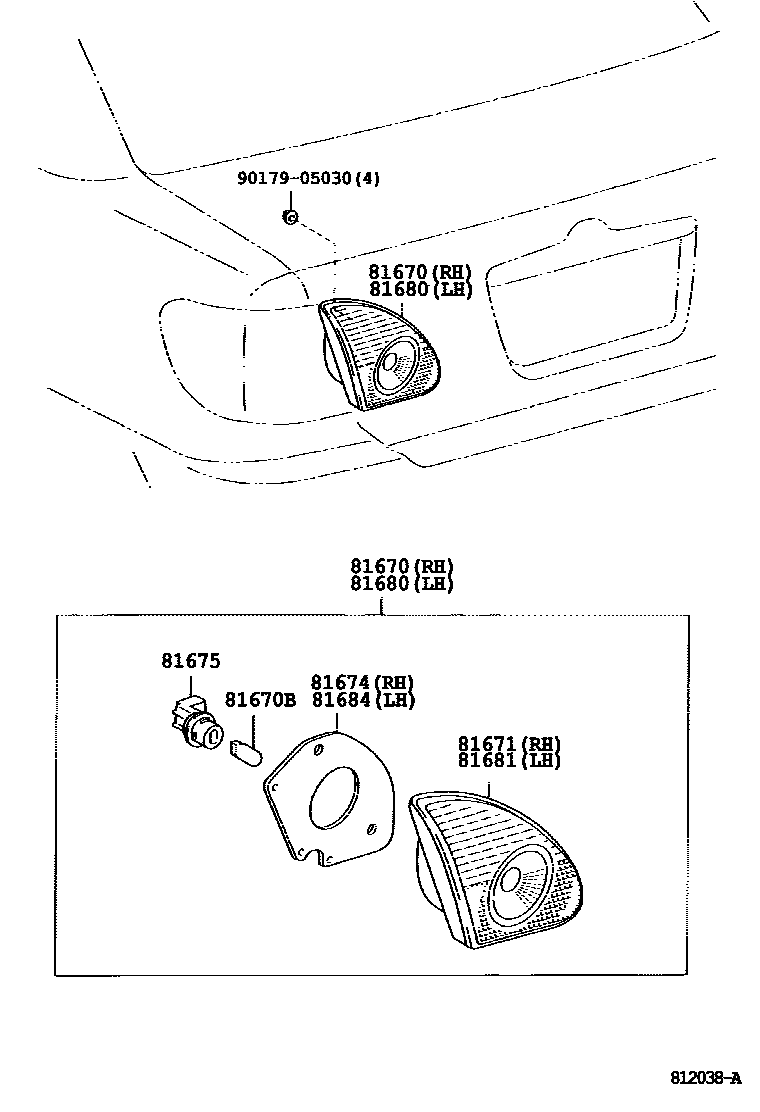

Toyota COROLLA/MATRIX (NAP) — BACK UP LAMP
81670LAMP ASSY, BACK-UP, RH
main81670-02030iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
81670BBULB(FOR BACK-UP LAMP)
main90080-81065×2iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
12V 18W
81671LENS, BACK-UP LAMP, RH
main81671-02030iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
81674GASKET, BACK-UP LAMP BODY, RH
main81674-02030iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
81675SOCKET & WIRE, BACK-UP LAMP
main90075-60037×2iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
81680LAMP ASSY, BACK UP, LH
main81680-02030iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
81681LENS, BACK-UP LAMP, LH
main81681-02030iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
81684GASKET, BACK UP LAMP BODY, LH
main81674-02030iZZE130..NAP..4FC;ZZE130..NAP..5F..USA;ZZE130..NAP..5F..(CE,S)..CND; ZZE130..NAP..5F..LE..CND200201-200405
9017905030
main90179-05030
9 parts on this diagram · 1 diagram in section
BACK UP LAMP for Toyota COROLLA/MATRIX (NAP)
This section contains 9 genuine Toyota parts for the BACK UP LAMP system of the Toyota COROLLA/MATRIX (NAP). Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP BODY, RH, SOCKET & WIRE, BACK-UP LAMP.
