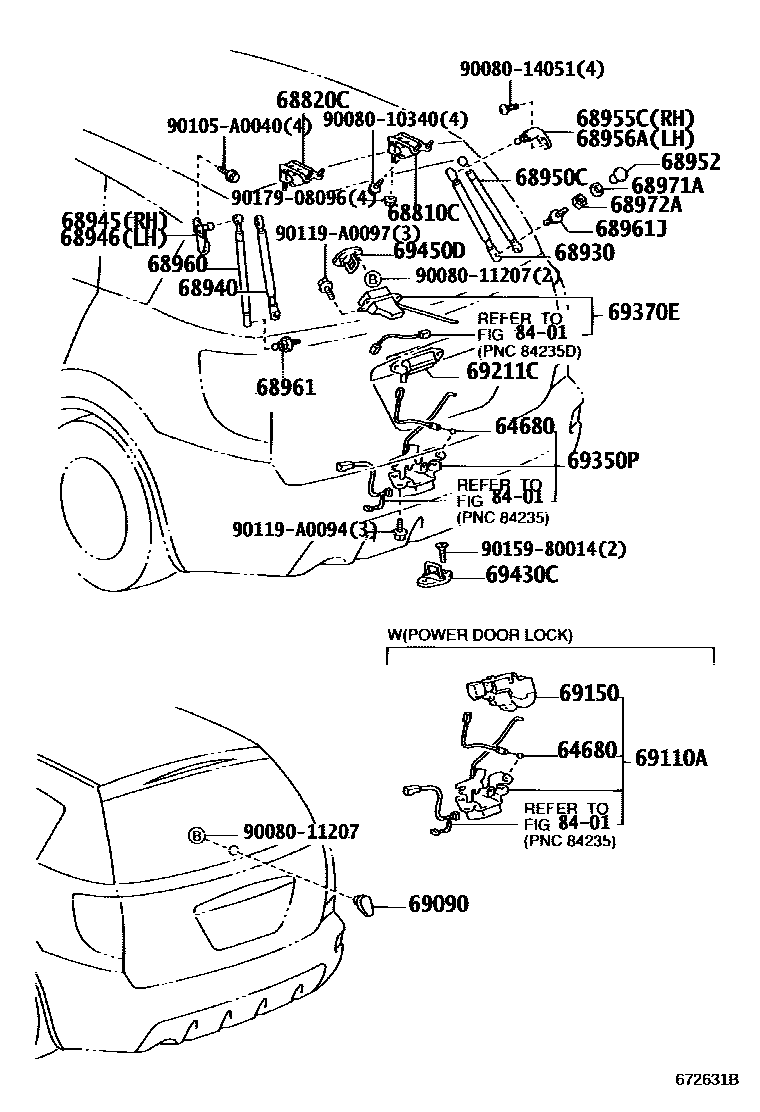

Toyota COROLLA/MATRIX (NAP) — BACK DOOR LOCK & HANDLE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
68810CHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68930STAY ASSY, BACK WINDOW, RH
W(REAR WIPER)
W(REAR WIPER)
W(REAR WIPER)
68940STAY ASSY, BACK WINDOW, LH
W(REAR WIPER)
W(REAR WIPER)
W(REAR WIPER)
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
W(REAR WIPER)
W(REAR WIPER)
COLD SPEC & W(REAR WIPER)
W(REAR WIPER)
COLD SPEC
68952RETAINER, BACK DOOR STAY
68955CBRACKET, BACK WINDOW STAY, UPPER RH
68956ABRACKET, BACK WINDOW STAY, UPPER LH
68960STAY ASSY, BACK DOOR, LH
W(REAR WIPER)
W(REAR WIPER)
COLD SPEC & W(REAR WIPER)
W(REAR WIPER)
COLD SPEC
68961BOLT, BACK DOOR STAY
68961JBOLT, BACK WINDOW STAY
68971APACKING, BACK DOOR STAY, NO.1
68972APACKING, BACK DOOR STAY, NO.2
69090HANDLE ASSY, BACK DOOR, OUTSIDE
69110ALOCK ASSY, BACK DOOR W/MOTOR
69150ACTUATOR ASSY, BACK DOOR LOCK
69211CHANDLE, BACK DOOR OUTSIDE
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69370ELOCK ASSY, BACK WINDOW
69430CSTRIKER ASSY, BACK DOOR LOCK
69450DSTRIKER ASSY, BACK WINDOW LOCK
8401SWITCH & RELAY & COMPUTER
9008010340
main90080-10340
9008011207
main90080-11207
9008014051
main90080-14051
90105A0040
main90105-A0040
90119A0094
main90119-A0094
90119A0097
main90119-A0097
9015980014
main90159-80014
9017908096
main90179-08096
33 parts on this diagram · 1 diagram in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA/MATRIX (NAP)
This section contains 33 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA/MATRIX (NAP). Key components include: CABLE ASSY, BACK DOOR LOCK CONTROL, HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, STAY ASSY, BACK WINDOW, RH, STAY ASSY, BACK WINDOW, LH.
