Toyota COROLLA/MATRIX (NAP) — ARMREST & VISOR

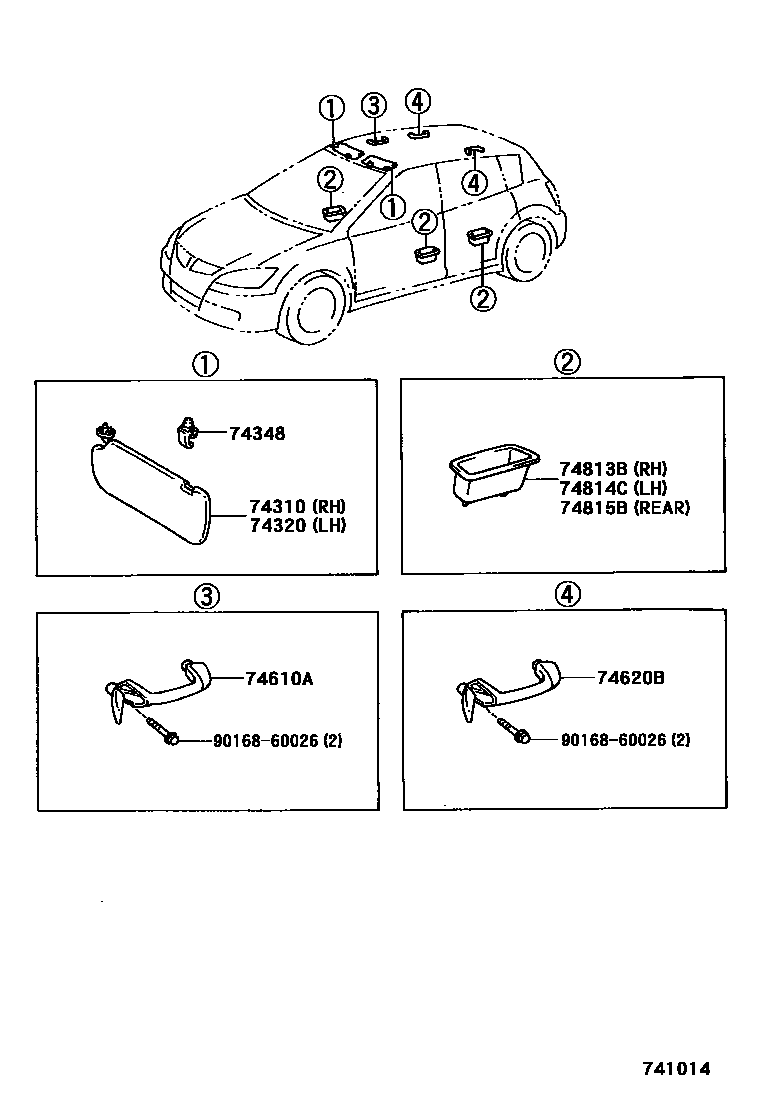

Parts diagram
74310VISOR ASSY, RH
main74310-01050-B1i200201-200405
STONE,TRIM13,14
main74310-02290-B1i200201-200405
STONE,TRIM1#
main74310-02290-E1i200201-200405
MEDIUM NEUTRAL BONE,TRIM4#
main74310-02B20-B0i200405-200801
LT.GRAY,TRIM1#
main74310-02B20-E0i200405-200801
MD.NEUTRAL,TRIM4#
main74310-02B30-B0i200405-200801
MEXICO SPEC,LT.GRAY,TRIM1#
main74310-02B30-E0i200405-200801
MEXICO SPEC,MD.NEUTRAL BONE,TRIM4#
main74310-02B40-B0i200405-200801
LT.GRAY,TRIM1#
main74310-02B40-E0i200405-200801
MD.NEUTRAL,TRIM4#
main74310-02B60-B0i200508
MEXICO SPEC,STONE,TRIM13,14
main74310-02C00-B0i200405-200801
MEXICO SPEC,STONE,TRIM1#
main74310-02C00-E0i200405-200801
MEXICO SPEC,MEDIUM NEUTRAL BONE,TRIM4#
main74310-02C20-B0i200405
MEXICO SPEC & W(SRS CURTAIN SHIELD AIR BAG),STONE,TRIM13,14
main74310-02C30-B0i200508
STONE,TRIM13,14
main74310-02C40-B0i200405
W(SRS CURTAIN SHIELD AIR BAG),STONE,TRIM13,14
main74310-0Z040-B0i200309-200405
MEXICO SPEC,STONE,TRIM1#
main74310-0Z040-E0i200203-200405
MEXICO SPEC,MEDIUM NEUTRAL BONE,TRIM4#
main74310-0Z050-B0i200209-200405
MEXICO SPEC,STONE,TRIM13,14
74320VISOR ASSY, LH
main74320-01040-B1i200201-200305
STONE,TRIM13,14
main74320-02270-B1i200201-200405
STONE,TRIM1#
main74320-02270-E1i200201-200405
MEDIUM NEUTRAL BONE,TRIM4#
main74320-02370-B0i200203-200405
MEXICO SPEC,STONE,TRIM1#
main74320-02370-E0i200309-200405
MEXICO SPEC,MEDIUM NEUTRAL BONE,TRIM4#
main74320-02380-B0i200209-200405
MEXICO SPEC,STONE,TRIM13,14
main74320-02490-B0i200405-200801
LT.GRAY,TRIM1#
main74320-02490-E0i200405-200801
MD.NEUTRAL,TRIM4#
main74320-02500-B0i200405-200801
MEXICO SPEC,LT.GRAY,TRIM1#
main74320-02500-E0i200405-200801
MEXICO SPEC,MD.NEUTRAL BONE,TRIM4#
main74320-02510-B0i200405-200801
LT.GRAY,TRIM1#
main74320-02510-E0i200405-200801
MD.NEUTRAL,TRIM4#
main74320-02530-B0i200508
MEXICO SPEC,STONE,TRIM13,14
main74320-02570-B0i200405-200801
MEXICO SPEC,STONE,TRIM1#
main74320-02570-E0i200405-200801
MEXICO SPEC,MEDIUM NEUTRAL BONE,TRIM4#
main74320-02590-B0i200405
MEXICO SPEC & W(SRS CURTAIN SHIELD AIR BAG),STONE,TRIM13,14
main74320-02610-B0i200405-200507
STONE,TRIM13,14
main74320-02620-B0i200405
W(SRS CURTAIN SHIELD AIR BAG),STONE,TRIM13,14
74348HOLDER, VISOR
main74348-02020-B0×2i200201-200405
LT.GRAY,TRIM1#; LT.GRAY,TRIM13,14
main74348-02020-E0×2i200201-200405
MD.NEUTRAL BONE,TRIM4#
74610AGRIP SUB-ASSY, ASSIST
main74611-02030-B0×2i200201-200405
LT.GRAY,TRIM1#; LT.GRAY,TRIM13,14; W(MOON ROOF),LT.GRAY,TRIM1#
main74611-02030-E0×2i200201-200405
MD.NEUTRAL BONE,TRIM4#; W(MOON ROOF),MD.NEUTRAL BONE,TRIM4#
74620BGRIP ASSY, ASSIST, REAR
main74611-02040-B0×2i200201-200405
LT.GRAY,TRIM1#; LT.GRAY,TRIM13,14
main74611-02040-E0×2i200405-200801
MD.NEUTRAL BONE,TRIM4#
74813BHANDLE, FRONT DOOR PULL, RH
main74813-01010-B0i200201-200305
DK.GRAY,TRIM13,14
74814CHANDLE, FRONT DOOR PULL, LH
main74813-01010-B0i200405
DK.GRAY,TRIM13,14
74815BHANDLE, REAR DOOR PULL
main74813-01010-B0×2i200201-200405
DK.GRAY,TRIM13,14
9016860026
main90168-60026

9 parts on this diagram · 4 diagrams in section

ARMREST & VISOR for Toyota COROLLA/MATRIX (NAP)

This section contains 20 genuine Toyota parts for the ARMREST & VISOR system of the Toyota COROLLA/MATRIX (NAP). Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
